ELT 140H33ABV (80562) - Snapper 33" Lawn Tractor, 14hp Wheel - Front Parts Diagram

33" Lawn Tractor, 14hp

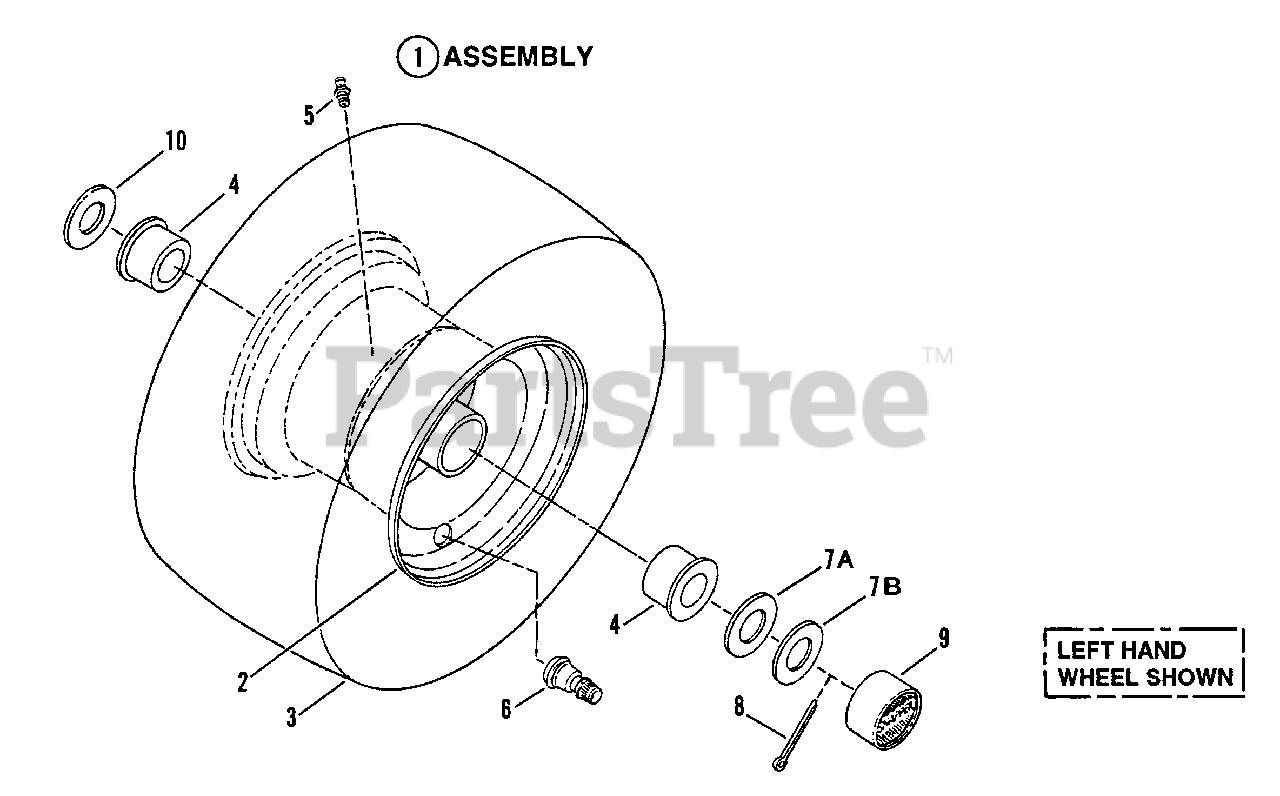

Wheel - Front Parts Diagram

  • Title

1

Snapper 7058515

ASSEMBLY, Front Tire & Rim
(Superseded to 7058515YP)

Note: Was 52681 (Includes 2 thru 6)(33" Model)

$117.99

$

Usually ships in 2-12 days

0

1

Snapper 7058517

ASSEMBLY, Front Tire & Rim
(Superseded to 7058517YP)

Note: Was 52957 (Includes 2 thru 6)(38" Model)

$167.99

$

Usually ships in 2-12 days

0

2

Snapper 7022772

RIM, 5.50 x 4.00
(Superseded to 7058517YP)

$167.99

$

Usually ships in 2-12 days

0

3

Snapper 7072702

TIRE, 13 x 5.00
(Superseded to 7058515YP)

Note: Was 22773 (For 33" Model)

$117.99

$

Usually ships in 2-12 days

0

3

Snapper 7072704

TIRE, 15 x 6.00
(Superseded to 7058517YP)

Note: Was 26109 (For 38" Model)

$167.99

$

Usually ships in 2-12 days

0

4

Snapper 7014483

BEARING, Wheel
(Superseded to 7014483YP)

$10.99

$

In Stock, Qty 19

0

5

Snapper 7076998

FITTING, Lube 1/4-28 Tapered Thread
(Superseded to 703153)

Note: Was 13876

$3.99

$

In Stock, only 2 left!

0

6

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

In Stock, only 2 left!

0

7A

Snapper 7032027

WASHER, 3/4 I.D. x 1 1/2 O.D. Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, only 1 left!

0

7B

Snapper 7011071

WASHER, 3/4 I.D. x1 5/8" O.D.Thrust
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7091516

COTTER-PIN
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

Note: (For 33" Model)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7033701

WASHER, 25/32 I.D. x 1 1/2" O.D.

$2.99

$

Usually ships in 2-12 days

0
