ELT 140H33ABV (80562) - Snapper 33" Lawn Tractor, 14hp Wheels - Rear Parts Diagram

33" Lawn Tractor, 14hp

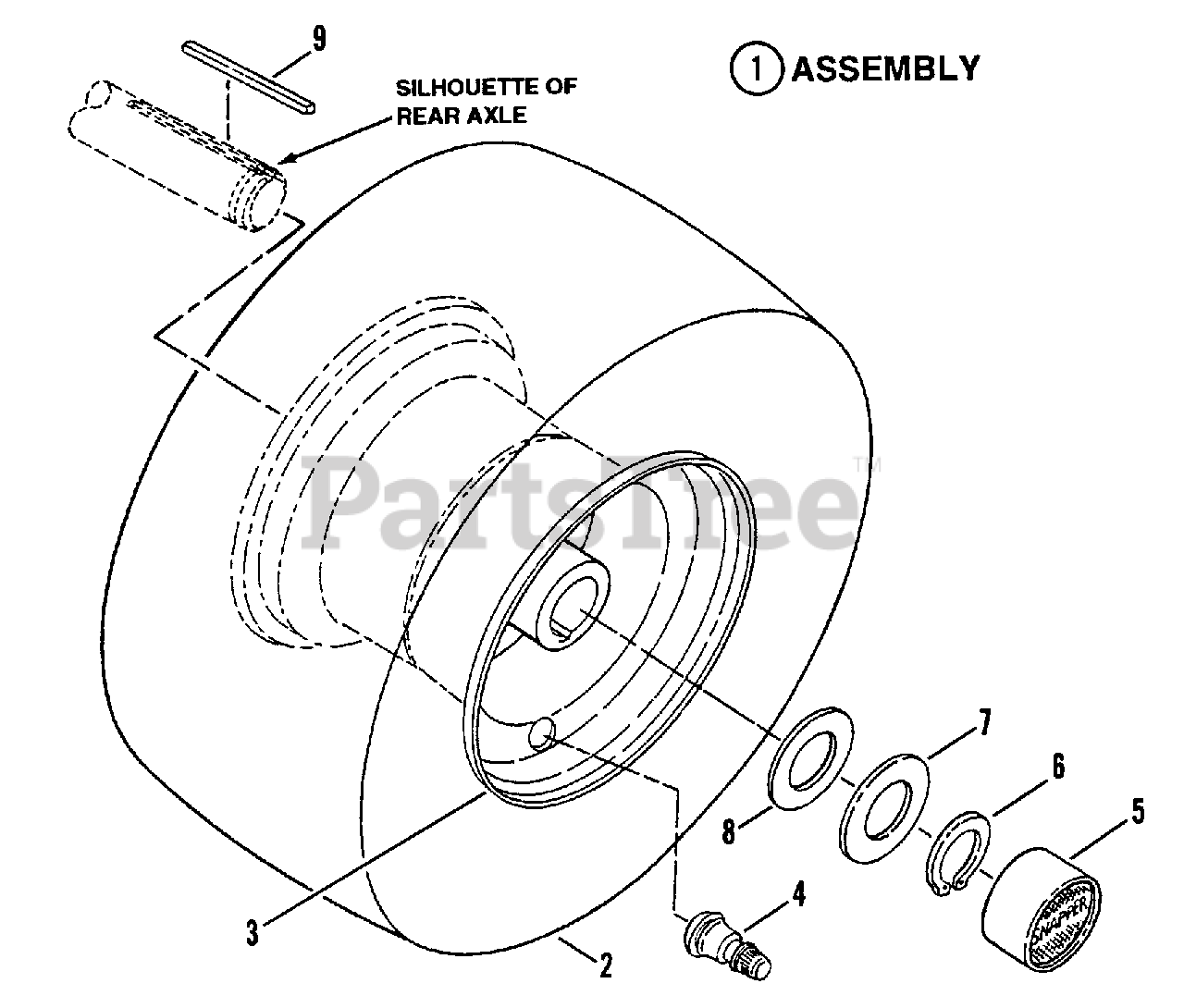

Wheels - Rear Parts Diagram

  • Title

1

Snapper 7052845

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058518YP)

Note: (Includes items 2 thru 4); (For 33" Model)

$208.99

$

Usually ships in 2-12 days

0

1

Snapper 7052846

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058518YP)

Note: (Includes 2 thru 4); (For 38" Model)

$208.99

$

Usually ships in 2-12 days

0

2

Snapper 7022688

TIRE, 18 x 7.50
(Superseded to 7022688YP)

Note: Was 26112 (For 33" Model)

$131.99

$

Usually ships in 2-12 days

0

2

Snapper 7072705

TIRE, 18 x 8.50
(Superseded to 7072705YP)

Note: Was 26113 (For 38" Model)

$125.99

$

Usually ships in 2-12 days

0

3

Snapper 7024453

RIM, 8.00 x 5.38
(Superseded to 7024453YP)

Note: (For 33" Model)

$112.99

$

Usually ships in 2-12 days

0

3

Snapper 7024454

RIM, 8.00 x 7.00
(Superseded to 7024454YP)

Note: (For 38" Model)

$122.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

In Stock, only 2 left!

0

5

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7010746

RING, Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 18

0

7

Snapper 7011071

WASHER, 3/4 I.D. x1 5/8" O.D. Thrust
(Superseded to 7011071YP)

Note: (For 33" Model)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7032027

WASHER, 3/4 I.D. x 1 1/2" O.D. Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7017173

KEY, 3/16 x 2 1/2" Square
(Superseded to 7017173YP)

$3.49

$

Usually ships in 2-12 days

0
