ELT 145H33FBV (84360) - Snapper 38" Lawn Tractor, 14.5hp Wheels, Front & Rear Parts Diagram

38" Lawn Tractor, 14.5hp

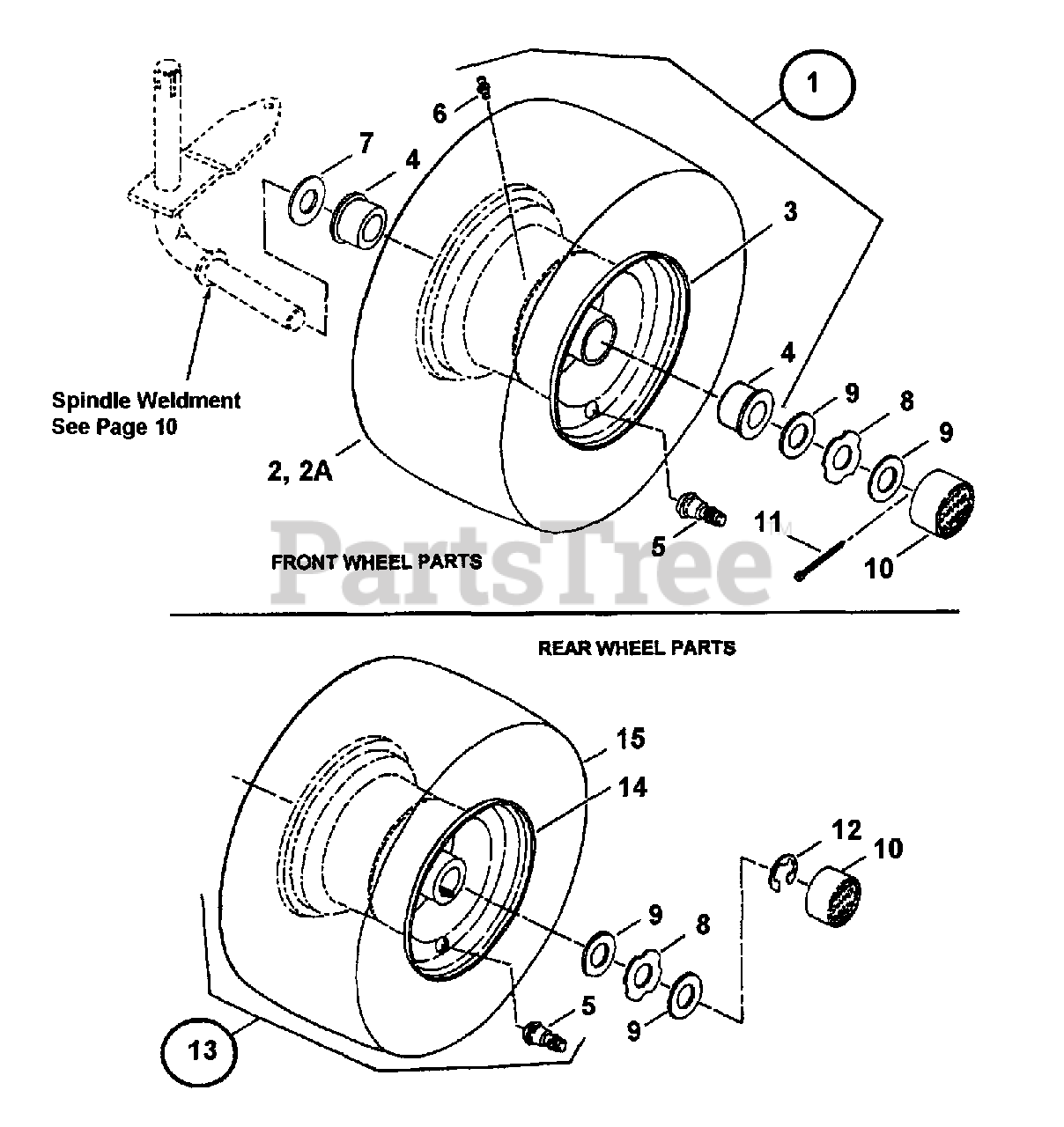

Wheels, Front & Rear Parts Diagram

  • Title

1

Snapper 7058515

ASSEMBLY, Front Tire & Rim
(Superseded to 7058515YP)

Note: (Includes items 2, 3, 4, 5 & 6)(Models: LT145H33FBV & ELT145H33FBV)

$

$

Not available

Snapper 7058517

ASSEMBLY, Front Tire & Rim
(Superseded to 7058517YP)

Note: (Includes items 2A, 3, 4, 5 & 6 )(Model: LT145H38FBV)

$171.99

$

Usually ships in 2-12 days

0

2

Snapper 7072702

TIRE, 13 x 5.00
(Superseded to 7058515YP)

$

$

Not available

2A

Snapper 7072704

TIRE, 15 x 6.00
(Superseded to 7058517YP)

$171.99

$

Usually ships in 2-12 days

0

3

Snapper 7022772

RIM, 6.00 x 3.50
(Superseded to 7058517YP)

$171.99

$

Usually ships in 2-12 days

0

4

Snapper 7014483

BEARING, Wheel
(Superseded to 7014483YP)

$11.99

$

In Stock, Qty 17

0

5

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.99

$

In Stock, only 3 left!

0

6

Snapper 7076998

FITTING, Lube 1/4-28 Tapered Thread
(Superseded to 703153)

Note: Was 13876

$3.99

$

In Stock, Qty 8

0

7

Snapper 7034453

WASHER, Flat, 5/32 x 25/32" I.D. x 1-1/2" O.D.
(Superseded to 7034453YP)

$6.99

$

In Stock, only 2 left!

0

8

Snapper 7029618

WASHER, Hub-Cap Retaining

$3.99

$

In Stock, only 2 left!

0

9

Snapper 7029617

WASHER, Flat, 1/16 x 49/64 I.D. x 1-5/16" O.D.
(Superseded to 7029617YP)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 15

0

12

Snapper 7010746

RING, External Retaining, 3/4"
(Superseded to 703975)

Note: Was 29738

$3.99

$

In Stock, Qty 13

0

13

Snapper 7058518

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058518YP)

Note: (Includes items 5, 14 & 15)

$208.99

$

Usually ships in 2-12 days

0

14

Snapper 7024454

RIM, 8 x 7.00
(Superseded to 7024454YP)

$122.99

$

Usually ships in 2-12 days

0

15

Snapper 7072705

TIRE, 18 x 8.50-8
(Superseded to 7072705YP)

$128.99

$

Usually ships in 2-12 days

0
