ELT 16538RD (2690935) - Snapper 38" Lawn Tractor, 16.5hp Frame Group Parts Diagram

38" Lawn Tractor, 16.5hp

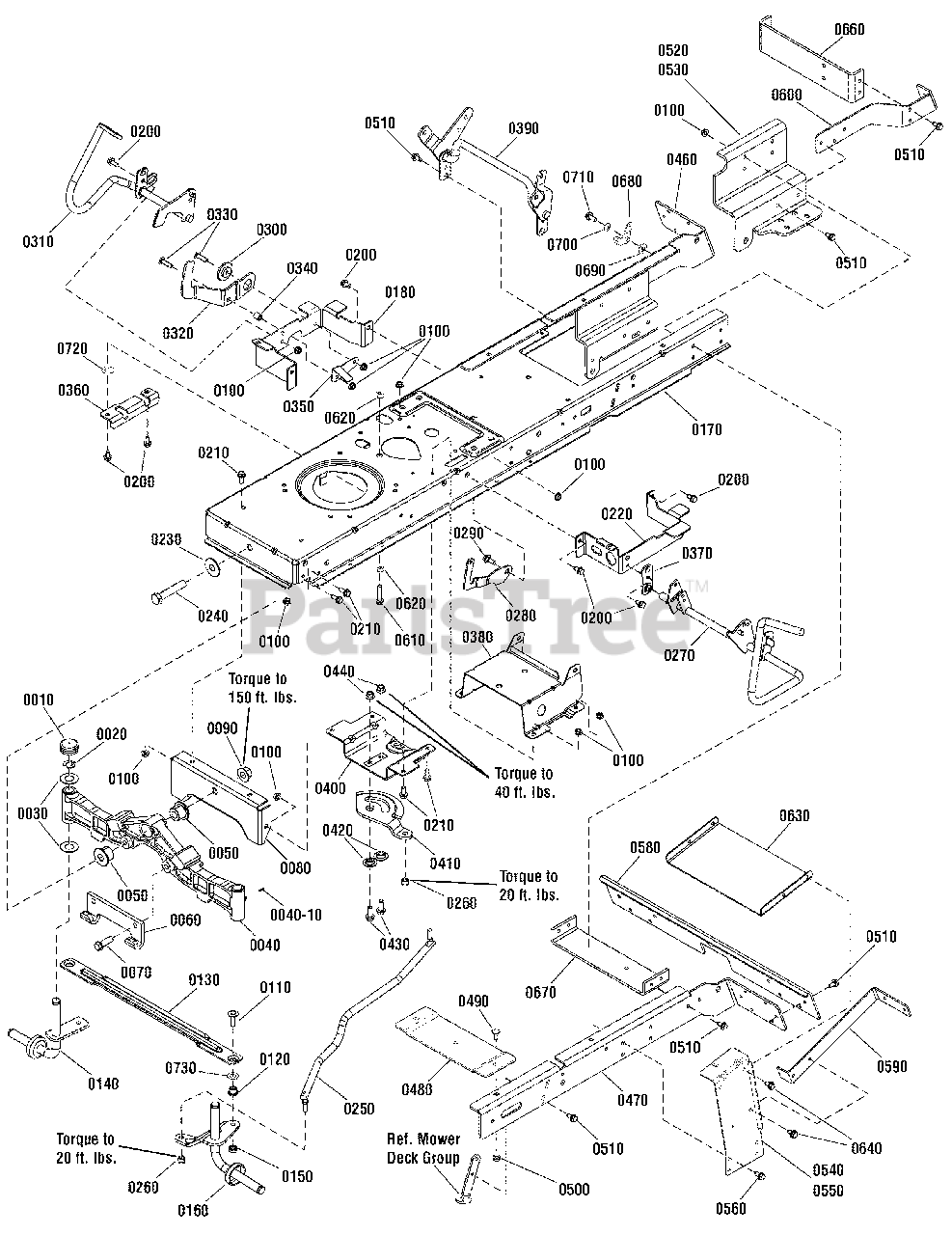

Frame Group Parts Diagram

  • Title

0010

Snapper 1734135

CAP, Hub
(Superseded to 1734135SM)

$5.99

$

In Stock, Qty 11

0

0020

Snapper 1611710

RING, Klipring Extension
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 16

0

0030

Snapper 2860183

WASHER, 3/4
(Superseded to 2860183SM)

$4.99

$

In Stock, Qty 9

0

0040

Snapper 1728018

AXLE, Front
(Superseded to 1756386YP)

$185.99

$

In Stock, only 1 left!

0

0040-10

Snapper 1704314

FITTING, Zerk
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

0050

Snapper 1730186

BUSHING, Axle Pivot
(Superseded to 1730186SM)

$6.99

$

In Stock, only 2 left!

0

0060

Snapper 1721918A

HOOK, "J"
(Superseded to 1721918ASM)

$31.99

$

In Stock, only 2 left!

0

0070

Snapper 1960652

CAPSCREW, 7/16-14 x 1-1/2
(Superseded to 1960652SM)

$5.49

$

Usually ships in 2-12 days

0

0080

Snapper 1727902

PLATE, Axle Support
(Superseded to 1727902SM)

$43.99

$

Usually ships in 2-12 days

0

0090

Snapper 2860646

NUT, Hex Flange Two-Way Lock, 5/8-11
(Superseded to 2860646SM)

$10.99

$

In Stock, Qty 8

0

0100

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 1960032

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, .141 Thread G5
(Superseded to 1960032SM)

$5.49

$

In Stock, Qty 9

0

0120

Snapper 1731912

BUSHING, Powdered Metal
(Superseded to 1731912SM)

$4.49

$

In Stock, Qty 7

0

0130

Snapper 1751964

ROD, Tie
(Superseded to 1751964BMYP)

$32.99

$

In Stock, only 1 left!

0

0140

Snapper 1727872A

SPINDLE & CUP ASSEMBLY, R.H.
(Superseded to 1727872ASM)

$98.99

$

In Stock, Qty 6

0

0150

Snapper 1930645

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0160

Snapper 1727873A

SPINDLE & ARM ASSEMBLY, L.H.
(Superseded to 1727873ASM)

$101.99

$

In Stock, only 1 left!

0

0170

Snapper 885414

FRAME
(Superseded to 885414AYP)

$323.99

$

Usually ships in 2-12 days

0

0180

Snapper 1727904

SUPPORT, Front Footrest R.H.
(Superseded to 1759842BMYP)

$39.99

$

Usually ships in 2-12 days

0

0200

Snapper 1930601

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0210

Snapper 1930591

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 15

0

0220

Snapper 885536A

SUPPORT, Front Footrest L.H.
(Superseded to 885536AYP)

$25.99

$

Usually ships in 2-12 days

0

0230

Snapper 1960035

WASHER, Flat, 5/8
(Superseded to 1960035SM)

$4.49

$

In Stock, Qty 13

0

0240

Snapper 2860744

CAPSCREW, Hex Head, 5/8-11 x 3-1/4 G5
(Superseded to 2860744SM)

$8.49

$

Usually ships in 2-12 days

0

0250

Snapper 1727868

LINK, Drag
(Superseded to 1727868SM)

$75.99

$

Usually ships in 2-12 days

0

0260

Snapper 1960747

NUT, Hex Nylock, 3/8-24
(Superseded to 703901)

$3.49

$

In Stock, Qty 12

0

0270

Snapper 885471A

PEDAL ASSEMBLY, Brake
(Superseded to 885471AYP)

$57.99

$

Usually ships in 2-12 days

0

0280

Snapper 1735595

LATCH, Brake Lock
(Superseded to 1735595ASM)

$10.99

$

In Stock, only 1 left!

0

0290

Snapper 1729576

BOLT, Shoulder, 5/16-18 x 1-1/8
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0300

Snapper 1727935

SPACER, Pivot
(Superseded to 1727935SM)

$5.99

$

In Stock, only 4 left!

0

0310

Snapper 1736714A

PEDAL ASSEMBLY, Forward
(Superseded to 1736714AYP)

$89.99

$

Usually ships in 2-12 days

0

0320

Snapper 1727246

PEDAL, Reverse
(Superseded to 1727246SM)

$20.99

$

Usually ships in 2-12 days

0

0330

Snapper 1960223

BOLT, Carriage, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

Usually ships in 2-12 days

0

0340

Snapper 1728024

SPACER, Foot Pedal
(Superseded to 1728024SM)

$4.99

$

Usually ships in 2-12 days

0

0350

Snapper 1728025

ACTUATOR, RMO Switch
(Superseded to 1728025BMYP)

$6.49

$

Usually ships in 2-12 days

0

0360

Snapper 885591A

BRACKET, Pedal Pivot
(Superseded to 885591YP)

$22.99

$

Usually ships in 2-12 days

0

0370

Snapper 1727911A

PLATE, Bearing
(Superseded to 1727911ASM)

$12.99

$

Usually ships in 2-12 days

0

0380

Snapper 1727282

SUPPORT, Battery
(Superseded to 1727282SM)

$30.99

$

Usually ships in 2-12 days

0

0390

Snapper 885579A

LIFT SHAFT ASSEMBLY
(Superseded to 1758772YP)

$125.99

$

Usually ships in 2-12 days

0

0400

Snapper 1727940

BRACKET, Sector Support
(Superseded to 1727940SM)

$

$

Not available

0410

Snapper 1728027

GEAR, Steering
(Superseded to 1751110YP)

$34.99

$

In Stock, Qty 13

0

0420

Snapper 1728122

SPACER, Sector Gear
(Superseded to 1728122SM)

$5.49

$

In Stock, Qty 20+

0

0430

Snapper 1934654

SCREW, Hex Flange, Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, Qty 15

0

0440

Snapper 1930645

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0460

Snapper 885508A

BRACKET, Rear Frame, RH
(Superseded to 885508AYP)

$131.99

$

Usually ships in 2-12 days

0

0470

Snapper 885509A

BRACKET, Rear Frame, LH
(Superseded to 885509AYP)

$131.99

$

Usually ships in 2-12 days

0

0480

Snapper 885532A

BRACE, Middle Cross
(Superseded to 885532AYP)

$33.99

$

Usually ships in 2-12 days

0

0490

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0500

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0510

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0520

Snapper 885474A

BRACKET, Transaxle, RH
(Superseded to 885474AYP)

$67.99

$

Usually ships in 2-12 days

0

0530

Snapper 885475A

BRACKET, Transaxle, LH
(Superseded to 885475AYP)

$101.99

$

Usually ships in 2-12 days

0

0540

Snapper 885411A

SUPPORT, Deck, RH
(Superseded to 885411AYP)

$46.99

$

Usually ships in 2-12 days

0

0550

Snapper 885412A

SUPPORT, Deck, LH
(Superseded to 885412AYP)

$46.99

$

Usually ships in 2-12 days

0

0560

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

In Stock, only 4 left!

0

0580

Snapper 885469A

BRACKET, Middle Back Plate
(Superseded to 885469AYP)

$42.99

$

Usually ships in 2-12 days

0

0590

Snapper 885466A

SUPPORT, Upper, Back Plate
(Superseded to 885466AYP)

$20.99

$

Usually ships in 2-12 days

0

0600

Snapper 885467A

SUPPORT, Lower, Back Plate
(Superseded to 885467AYP)

$27.99

$

Usually ships in 2-12 days

0

0610

Snapper 7091822

BOLT, 1/2-13 x 5
(Superseded to 703886)

$6.49

$

In Stock, Qty 12

0

0620

Snapper 5025038

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

0630

Snapper 885503A

BRACE, Cross Deck Support
(Superseded to 885503AYP)

$26.99

$

Usually ships in 2-12 days

0

0640

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0660

Snapper 885441A

BRACKET, Torque
(Superseded to 885441AYP)

$33.99

$

Usually ships in 2-12 days

0

0670

Snapper 885486A

BRACKET, Idler Mount
(Superseded to 885486AYP)

$17.99

$

Usually ships in 2-12 days

0

0680

Snapper 1728990A

CLEVIS, Lift
(Superseded to 1728990ASM)

$11.99

$

Usually ships in 2-12 days

0

0690

Snapper 1727935

SPACER, Pivot
(Superseded to 1727935SM)

$5.99

$

In Stock, only 4 left!

0

0700

Snapper 1960044

WASHER, 5/16
(Superseded to 1960044SM)

$4.49

$

In Stock, Qty 11

0

0710

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

In Stock, only 4 left!

0

0720

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

0730

Snapper 1960703

WASHER, 5/8
(Superseded to 1960703SM)

$4.49

$

In Stock, only 2 left!

0
