ELT 17538RDF (1696111-00) - Snapper 38" Lawn Tractor, 17.5hp Electrical Group Parts Diagram

38" Lawn Tractor, 17.5hp

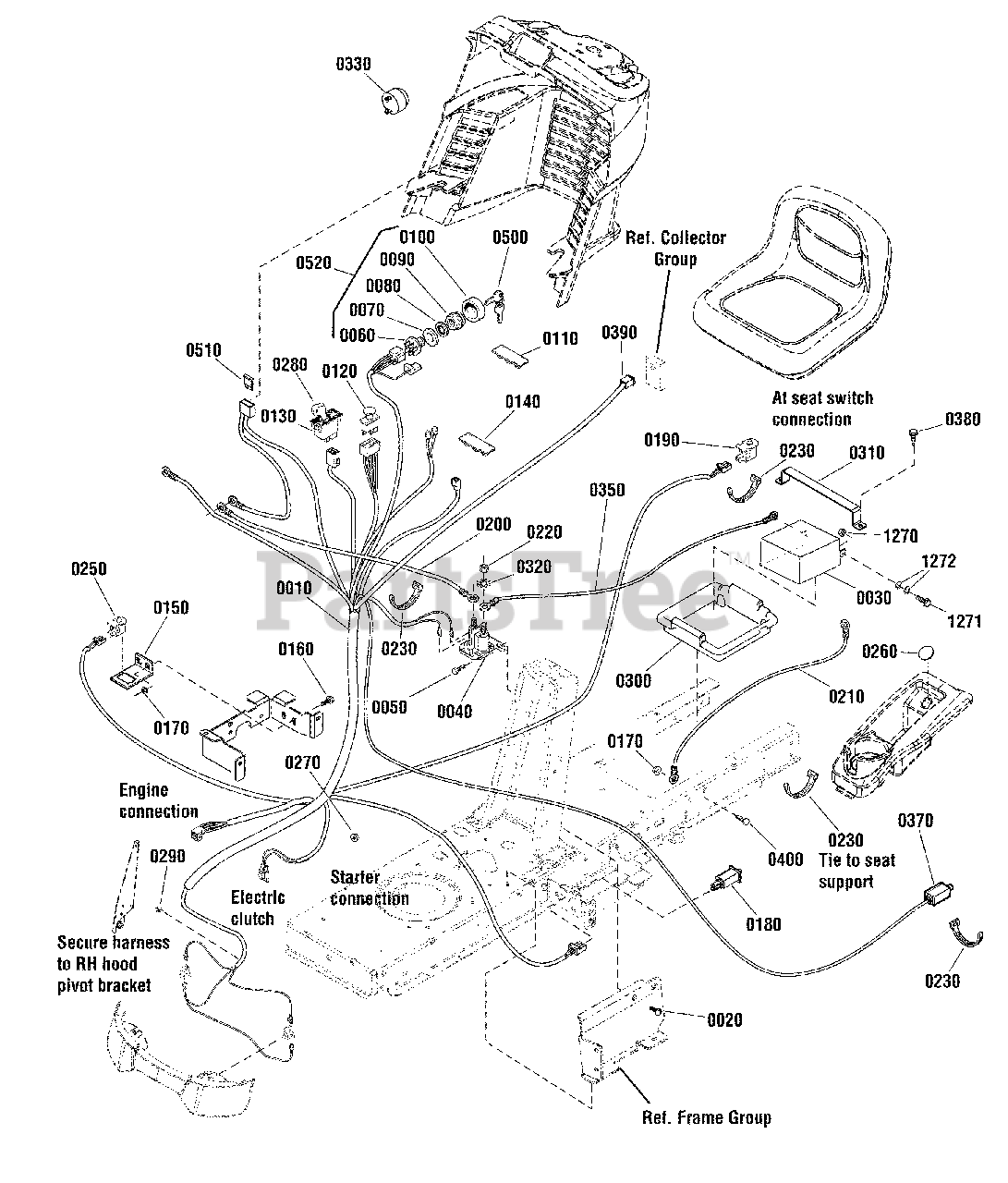

Electrical Group Parts Diagram

  • Title

0010

Snapper 885691

WIRING HARNESS
(Superseded to 885691YP)

$176.99

$

Usually ships in 2-12 days

0

0020

Snapper 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0030

BATTERY, 12 Volt

$

$

Not available

0040

Snapper 1728963

SOLENOID
(Superseded to 1755381YP)

$24.99

$

Usually ships in 2-12 days

0

0050

Snapper 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0060

Snapper 721108

SWITCH ASSEMBLY, Ingition
(Superseded to 092556MA)

$28.99

$

In Stock, only 1 left!

0

0070

Snapper 2101025

WASHER, 5/8
(Superseded to 2101025SM)

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 1960547

LOCKWASHER, Internal Tooth
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 6

0

0090

Snapper 1717549

NUT, Hex Flange, 5/8-32
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

0100

Snapper 1717550

COVER, Switch
(Superseded to 1717550SM)

$8.49

$

In Stock, Qty 9

0

0110

Snapper 1729993

PLUG, Hour Meter
(Superseded to 1729993SM)

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 1722887

SWITCH, PTO Push
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

0130

Snapper 1726556

SWITCH, RMO Module Only
(Superseded to 1726556SM)

$

$

Not available

0140

Snapper 1722611

PLUG, Hole
(Superseded to 1722611SM)

$6.99

$

Usually ships in 2-12 days

0

0150

Snapper 1728026A

SUPPORT, RMO Switch
(Superseded to 1728026ASM)

$13.99

$

Usually ships in 2-12 days

0

0160

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 1931277

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0180

Snapper 7022886

SWITCH, Push Button (NO / NC)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0190

Snapper 7023354

SWITCH, Push Button (NC)
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

0200

Snapper 1721830

CABLE, # 6 x 25, Red
(Superseded to 1721830SM)

$19.99

$

In Stock, only 1 left!

0

0210

Snapper 1713163

CABLE, # 6 x 26, Black
(Superseded to 1713163SM)

$24.99

$

Usually ships in 2-12 days

0

0220

Snapper 2860750

NUT, Hex, KEPS, 5/16-24
(Superseded to 2860750SM)

$2.99

$

Usually ships in 2-12 days

0

0230

Snapper 1701011

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0250

Snapper 1732004

SWITCH, Push Button, NO, Black
(Superseded to 1732004SM)

$8.99

$

In Stock, Qty 7

0

0260

Snapper 1732007

PLUG, Hole
(Superseded to 1732007SM)

$4.49

$

Usually ships in 2-12 days

0

0270

Snapper 1960294

NUT, Hex Flange Whiz Lock Small, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

0280

Snapper 1726557

KEY, RMO Module Plastic
(Superseded to 1726557SM)

$5.49

$

In Stock, Qty 20+

0

0290

Snapper 2172434

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

In Stock, only 1 left!

0

0300

Snapper 885428

CONTAINER, Battery
(Superseded to 885428YP)

$17.99

$

Usually ships in 2-12 days

0

0310

Snapper 885511BM

HOLD DOWN, Battery
(Superseded to 885511AYP)

$19.99

$

Usually ships in 2-12 days

0

0320

Snapper 2820426

LOCKWASHER, 5/16
(Superseded to 2820426SM)

$4.49

$

In Stock, only 1 left!

0

0330

Snapper 1720117

BUZZER, Bag Full
(Superseded to 1720117SM)

$38.99

$

Usually ships in 2-12 days

0

0350

Snapper 885616

CABLE, Battery
(Superseded to 885616YP)

$35.99

$

Usually ships in 2-12 days

0

0370

Snapper 727831

SWITCH, Bagger
(Superseded to 1001845MA)

$16.99

$

Usually ships in 2-12 days

0

0380

Snapper 1664847

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0390

Snapper 885692

HARNESS, Bag Full
(Superseded to 885692YP)

$10.99

$

Usually ships in 2-12 days

0

0400

Snapper 7091811

CAPSCREW, Hex Flange, 5/16-18 x 5/8, G5
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

0500

Snapper 1737837

KEYS, Ignition
(Superseded to 1737837YP)

$21.99

$

Usually ships in 2-12 days

0

0510

* FUSE, 20 Amp

$

$

Not available

0520

Snapper 1686734

SWITCH ASSEMBLY
(Superseded to 1686734SM)

Note: (Includes Ref Nos. 0060, 0070, 0080, 0090 & 0100)

$32.99

$

In Stock, Qty 20+

0

1270

Snapper 51716

NUT, M5 x 0.8
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

1271

Snapper 52618

SCREW, M5 x 0.8 x 12
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

1272

Snapper 51713

WASHER, M5
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0
