ELT 175420 (2691044) - Snapper 42" Lawn Tractor, 17.5hp Controls Group Parts Diagram

42" Lawn Tractor, 17.5hp

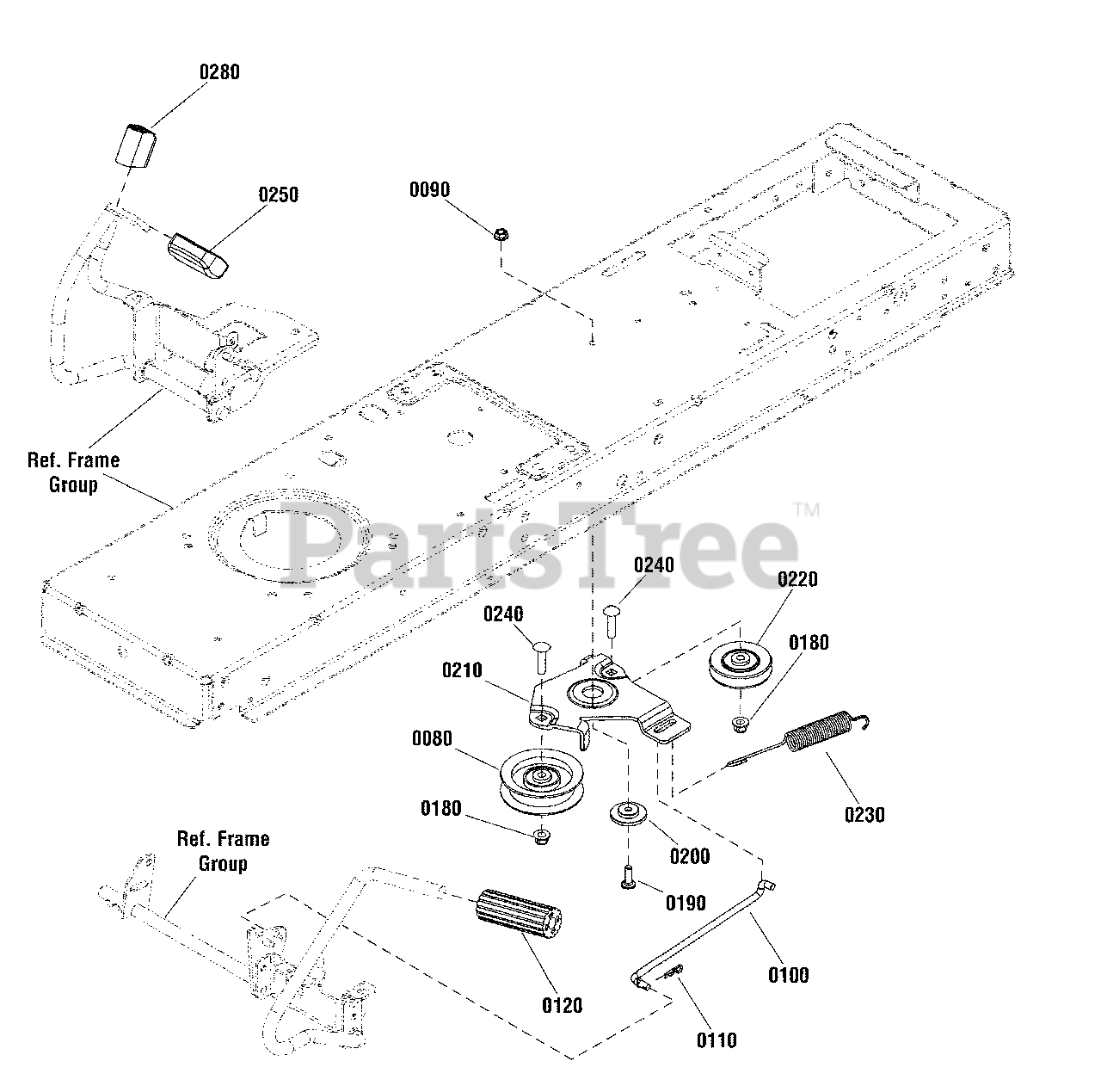

Controls Group Parts Diagram

  • Title

0080

Snapper 1728000

PULLEY, Idler
(Superseded to 1728000SM)

$18.99

$

Usually ships in 2-12 days

0

0090

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0100

Snapper 1727254

ROD, Brake Return
(Superseded to 1727254SM)

$15.99

$

Usually ships in 2-12 days

0

0110

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

0120

Snapper 1727261

PEDAL, Brake
(Superseded to 1727261SM)

$9.99

$

Usually ships in 2-12 days

0

0180

Snapper 1960687

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0190

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0200

Snapper 1727935

SPACER, Pivot
(Superseded to 1727935SM)

$5.99

$

In Stock, only 4 left!

0

0210

Snapper 1727894A

BRACKET, Idler
(Superseded to 1727894SM)

$32.99

$

Usually ships in 2-12 days

0

0220

Snapper 1728001

PULLEY, 3 OD, 3/8 ID
(Superseded to 1728001SM)

$18.99

$

In Stock, only 1 left!

0

0230

Snapper 1729620

SPRING, Extension
(Superseded to 1729620SM)

$8.49

$

Usually ships in 2-12 days

0

0240

Snapper 1931352

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 8

0

0250

Snapper 1721675

PAD, Foot Pedal, Forward
(Superseded to 1721675SM)

$8.99

$

Usually ships in 2-12 days

0

0280

Snapper 1727259

PAD, Foot Pedal, Reverse
(Superseded to 1727259SM)

$8.49

$

Usually ships in 2-12 days

0
