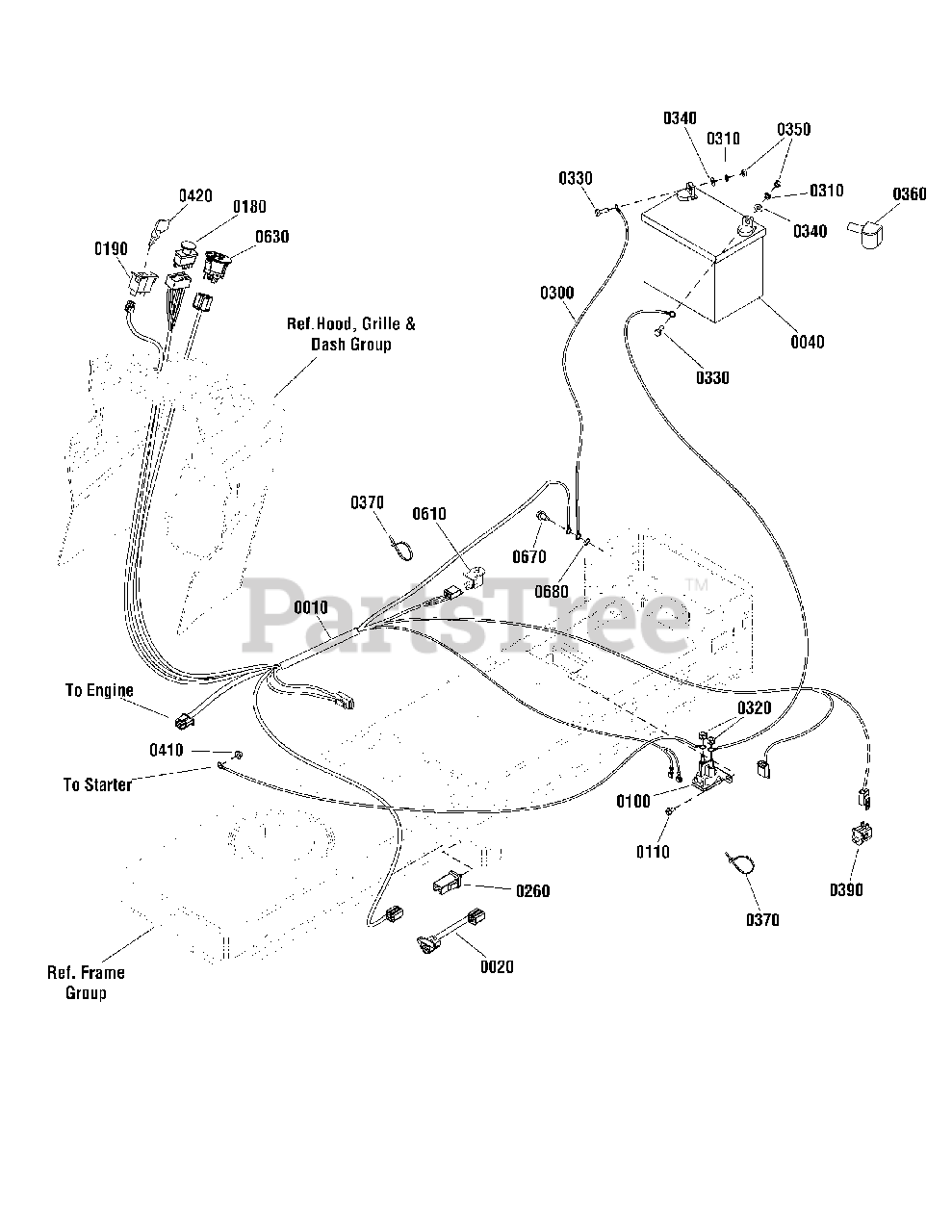

ELT 175420 (2691044) - Snapper 42" Lawn Tractor, 17.5hp Electrical Group Parts Diagram

42" Lawn Tractor, 17.5hp

Electrical Group Parts Diagram

  • Title

0010

Snapper 1753300

WIRING HARNESS
(Superseded to 1753300YP)

$131.99

$

Usually ships in 2-12 days

0

0020

Snapper 1734025

WIRES & CONNECTORS ASMY-JUMPER 3.0LG
(Superseded to 1734025SM)

$14.99

$

In Stock, only 1 left!

0

0040

* BATTERY, 7U1L, 12V, 195CCA

$

$

Not available

0100

Snapper 1728963

SOLENOID
(Superseded to 1755381YP)

$24.99

$

In Stock, Qty 14

0

0110

Snapper 1925003

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 1722887

SWITCH, PTO, Push
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 15

0

0190

Snapper 1726556

SWITCH, Reverse Mow
(Superseded to 1726556SM)

$

$

Not available

0260

Snapper 1732006

SWITCH, Push Button (NC/NO)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0300

Snapper 1752063

CABLE, Electric, #8 x 14.00 LG
(Superseded to 1752063YP)

$6.99

$

Usually ships in 2-12 days

0

0310

Snapper 2816964

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

0320

Snapper 2860750

NUT, Hex Lock, KEPS, 5/16-24
(Superseded to 2860750SM)

$2.99

$

Usually ships in 2-12 days

0

0330

Snapper 2823341

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

0340

Snapper 2821319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 9

0

0350

Snapper 2816622

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

0360

Snapper 1677296

BOOT, Insulator, Battery Terminal
(Superseded to 1677296SM)

$6.49

$

In Stock, only 2 left!

0

0370

Snapper 1701011

TIE, Self Lock
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0390

Snapper 1732004

SWITCH, Push Button, NO, Black
(Superseded to 1732004SM)

$8.99

$

In Stock, Qty 6

0

0410

Snapper 1960294

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

0420

Snapper 1726557

KEY, No Mow
(Superseded to 1726557SM)

$5.49

$

In Stock, Qty 19

0

0610

Snapper 1732005

SWITCH, Push Button (NC)
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

0630

Snapper 1737959

SWITCH, Key
(Superseded to 7600215YP)

$64.99

$

Usually ships in 2-12 days

0

0670

Snapper 1930601

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0680

Snapper 2820426

LOCKWASHER, External Tooth, 5/16
(Superseded to 2820426SM)

$4.49

$

In Stock, only 1 left!
