ELT 175420 (2691044) - Snapper 42" Lawn Tractor, 17.5hp Engine Group - 17.5HP Briggs & Stratton Parts Diagram

42" Lawn Tractor, 17.5hp

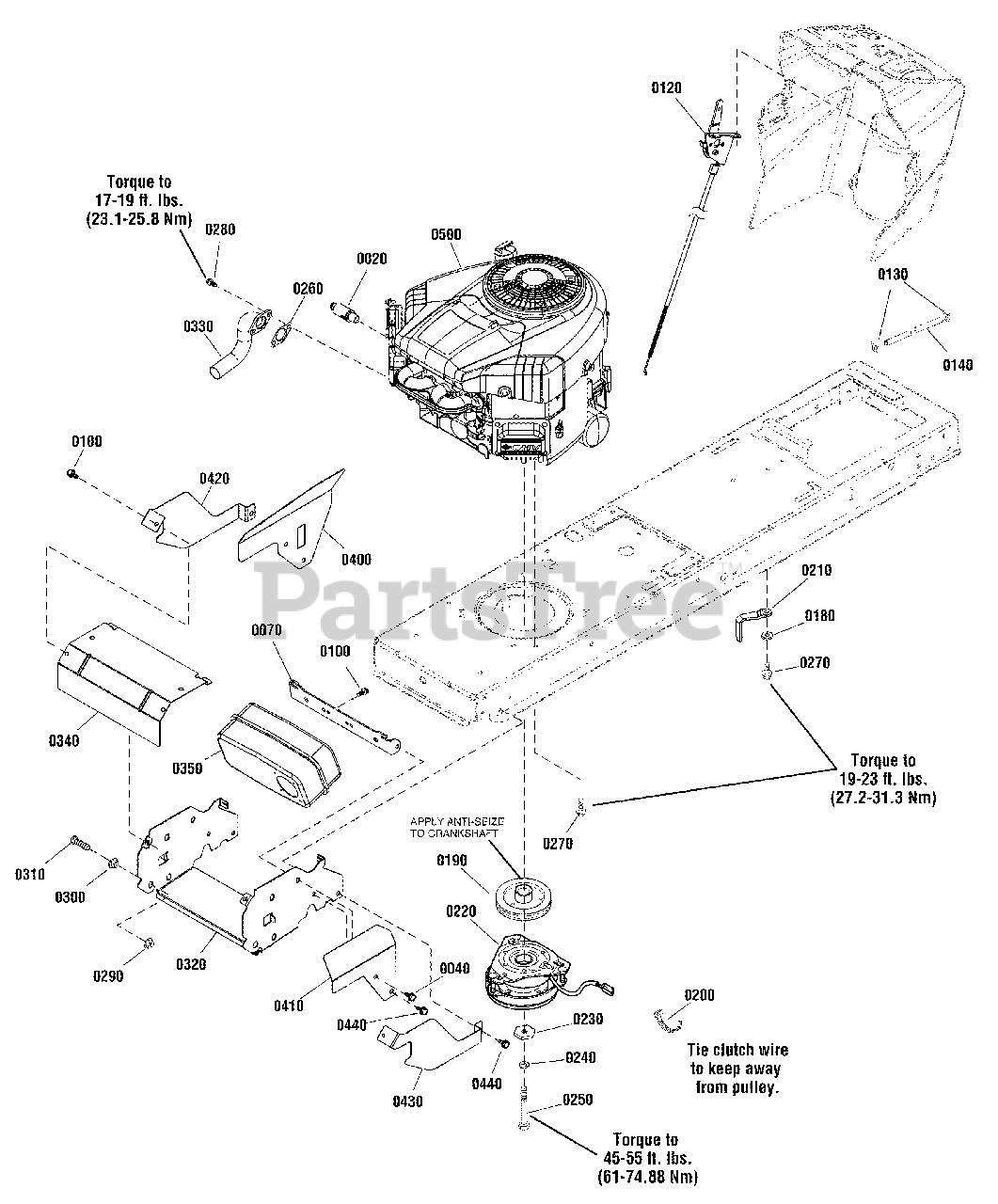

Engine Group - 17.5HP Briggs & Stratton Parts Diagram

  • Title

0020

Snapper 1750159

VALVE, Drain
(Superseded to 1750159YP)

$15.99

$

Usually ships in 2-12 days

0

0040

Snapper 1930601

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0070

Snapper 1727976A

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

0100

Snapper 1925003

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0120

Snapper 1751102

CABLE, Throttle Assembly, 23"
(Superseded to 1751102YP)

$43.99

$

Usually ships in 2-12 days

0

0130

Snapper 93053

CLAMP, Hose Band
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 7200116

HOSE, Fuel
(Superseded to 7200116YP)

$8.99

$

In Stock, only 1 left!

0

0180

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 1732576

PULLEY & HUB ASSEMBLY
(Superseded to 1732576SM)

$42.99

$

In Stock, only 1 left!

0

0200

Snapper 1701011

TIE, Self Lock
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0210

Snapper 1737421A

GUIDE, Belt, Long
(Superseded to 1737421AYP)

$12.99

$

In Stock, only 1 left!

0

0220

Snapper 1736105

CLUTCH, Electric
(Superseded to 1736105SM)

$387.99

$

Usually ships in 2-12 days

0

0230

Snapper 1708264

WASHER, Hex, 7/16
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 7

0

0240

Snapper 1918199

LOCKWASHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

0250

Snapper 1960649

CAPSCREW, Hex Head, 7/16-20 x 3-1/2, G5
(Superseded to 1960649SM)

$7.49

$

In Stock, only 1 left!

0

0260

Snapper 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

0270

Snapper 720045

SCREW, Self Tap, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

0280

Snapper 94480

SCREW, Hex, Lock, Washer, SEMS, 5/16-18 x 7/8
(Superseded to 690341)

$5.99

$

In Stock, only 2 left!

0

0290

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Snapper 1728086

PIVOT, Hood
(Superseded to 1728086SM)

$5.99

$

In Stock, only 1 left!

0

0310

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0320

Snapper 1738265A

SUPPORT, Muffler & Hood Pivot
(Superseded to 1738265AYP)

$67.99

$

Usually ships in 2-12 days

0

0330

Snapper 1728959

PIPE, Exhaust
(Superseded to 1728959SM)

$34.99

$

Usually ships in 2-12 days

0

0340

Snapper 1727996A

HEAT SHIELD
(Superseded to 7300918ASM)

$48.99

$

Usually ships in 2-12 days

0

0350

Snapper 1727993

MUFFLER
(Superseded to 1727993SM)

$93.99

$

In Stock, only 4 left!

0

0400

Snapper 1752460BM

GUARD, Exhaust, RH
(Superseded to 1752460BMYP)

$21.99

$

Usually ships in 2-12 days

0

0410

Snapper 1752476BM

GUARD, Exhaust, LH
(Superseded to 1752476BMYP)

$16.99

$

Usually ships in 2-12 days

0

0420

Snapper 1752477BM

STRAP, Exhaust Guard, RH
(Superseded to 1752477BMYP)

$21.99

$

Usually ships in 2-12 days

0

0430

Snapper 1752478BM

STRAP, Exhaust Guard, LH
(Superseded to 1752478BMYP)

$21.99

$

Usually ships in 2-12 days

0

0440

Snapper 722858

CAPSCREW, 5/16-18 x 3/4
(Superseded to 26X249MA)

$

$

Not available

0500

Snapper 31G777-0194-B1

* ENGINE, 17.5HP Briggs & Stratton

Note: (Engine Model: 31G777-0194-B1)

$

$

Not available
