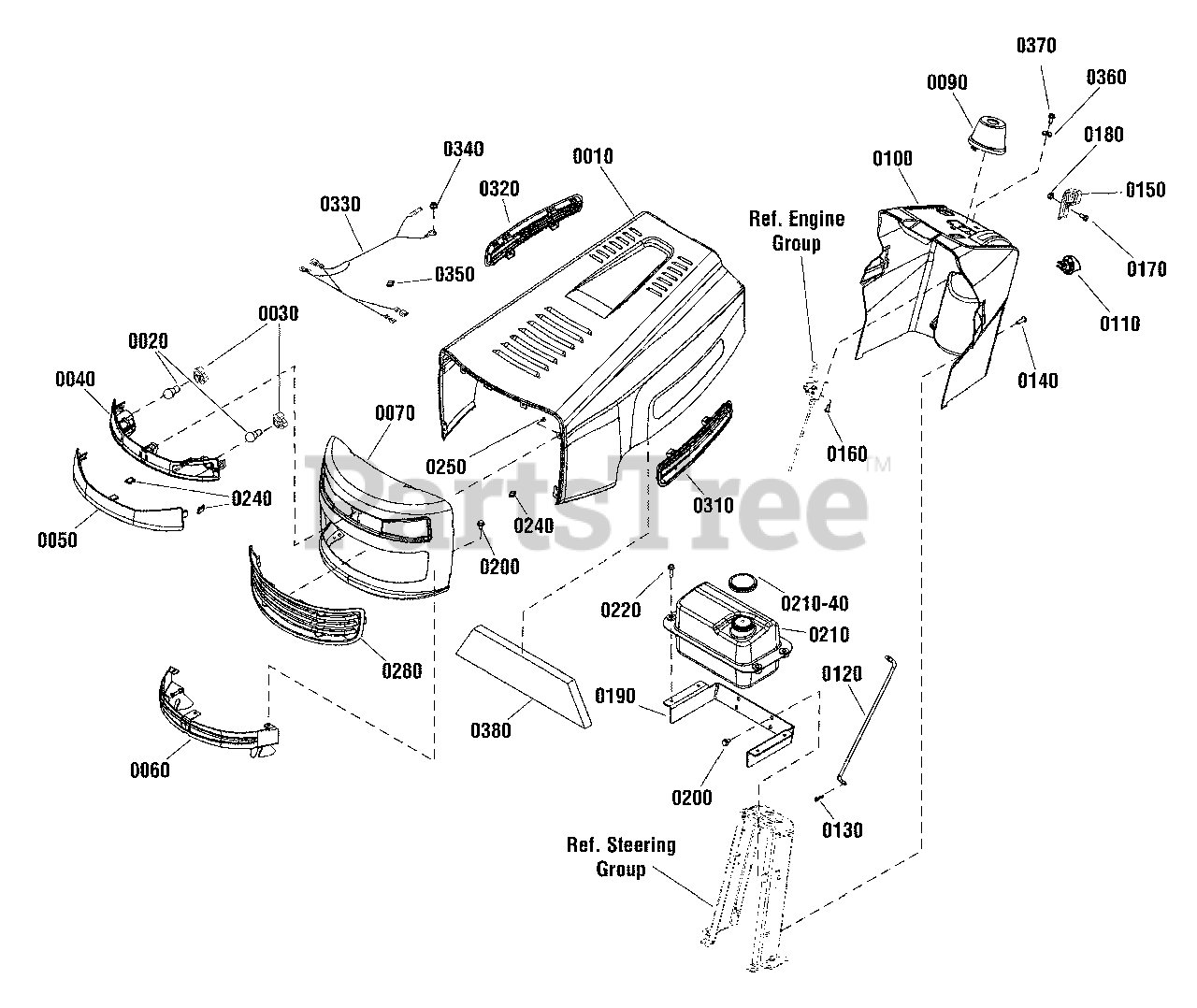

ELT 175420 (2691044) - Snapper 42" Lawn Tractor, 17.5hp Hood, Grille & Dash Group Parts Diagram

42" Lawn Tractor, 17.5hp

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Snapper 1750971D

HOOD
(Superseded to 1750971DYP)

$769.99

$

Usually ships in 2-12 days

0

0020

Snapper 1677371

BULB, Light, 1156
(Superseded to 1677371SM)

$32.99

$

Usually ships in 2-12 days

0

0030

Snapper 721550

SOCKET, Lamp
(Superseded to 1001716MA)

$8.49

$

Usually ships in 2-12 days

0

0040

Snapper 721567

HOUSING, Light
(Superseded to 1001805MA)

$33.99

$

Usually ships in 2-12 days

0

0050

Snapper 721568

LENS, Light
(Superseded to 1001806MA)

$30.99

$

Usually ships in 2-12 days

0

0060

Snapper 1750659BM

BRACKET, Hinge, Hood/Bumper
(Superseded to 1750659BMYP)

$49.99

$

Usually ships in 2-12 days

0

0070

Snapper 1751786D

GRILLE, Front
(Superseded to 1751786DYP)

$170.99

$

Usually ships in 2-12 days

0

0090

Snapper 1751114

COVER, Steering Shaft
(Superseded to 1751114YP)

$17.99

$

Usually ships in 2-12 days

0

0100

Snapper 1751931

DASH
(Superseded to 1751931YP)

$199.99

$

Usually ships in 2-12 days

0

0110

Snapper 1721891

KNOB, Push On
(Superseded to 1721891SM)

$10.99

$

Usually ships in 2-12 days

0

0120

Snapper 1738929

ROD, Parking Brake
(Superseded to 1738929YP)

$33.99

$

Usually ships in 2-12 days

0

0130

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

0140

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$

$

Not available

0150

Snapper 1739312

KNOB, Throttle
(Superseded to 1739312YP)

$11.99

$

Usually ships in 2-12 days

0

0160

Snapper 1739329

SCREW, Washer Head, 5mm x 12mm Long
(Superseded to 1739329YP)

$4.49

$

Usually ships in 2-12 days

0

0170

Snapper 797483

SCREW, Phillips Head, 8-32 x 3/8

$4.99

$

Usually ships in 2-12 days

0

0180

Snapper 7091018

NUT, Hex, #8C GR2
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 7

0

0190

Snapper 1750974BM

SUPPORT, Fuel Tank
(Superseded to 1750974BMYP)

$38.99

$

Usually ships in 2-12 days

0

0200

Snapper 1930601

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

0210

Snapper 1750972

TANK, Fuel
(Superseded to 1750972YP)

Note: (Includes Ref. No. 0210-40)

$178.99

$

Usually ships in 2-12 days

0

0210-40

Snapper 1751942

CAP, Fuel
(Superseded to 1751942YP)

$16.99

$

Usually ships in 2-12 days

0

0220

Snapper 1931202

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 5

0

0240

Snapper 720382

S-CLIP
(Superseded to 028X83MA)

$3.99

$

In Stock, only 2 left!

0

0250

Snapper 729075

SCREW, Thread Forming
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 19

0

0280

Snapper 1753563

INSERT, Grille
(Superseded to 1753563YP)

$8.99

$

Usually ships in 2-12 days

0

0310

Snapper 1741760

INSERT, Hood, LH
(Superseded to 1741760MA)

$11.99

$

Usually ships in 2-12 days

0

0320

Snapper 1741761

INSERT, Hood, RH
(Superseded to 1741761MA)

$11.99

$

Usually ships in 2-12 days

0

0330

Snapper 1751440

HARNESS, Headlight
(Superseded to 1751440YP)

$25.99

$

Usually ships in 2-12 days

0

0340

Snapper 1931211

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 11

0

0350

Snapper 2172434

CLIP, Panel
(Superseded to 2172434SM)

$4.99

$

In Stock, only 4 left!

0

0360

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 15

0

0370

Snapper 1664847

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0380

Snapper 1752484

FOAM, Hood
(Superseded to 1752484YP)

$21.99

$

Usually ships in 2-12 days

0
