ELT 1840RD (2690851) - Snapper 40" Lawn Tractor, 18hp Electrical Group - 18HP & 24HP Parts Diagram

40" Lawn Tractor, 18hp

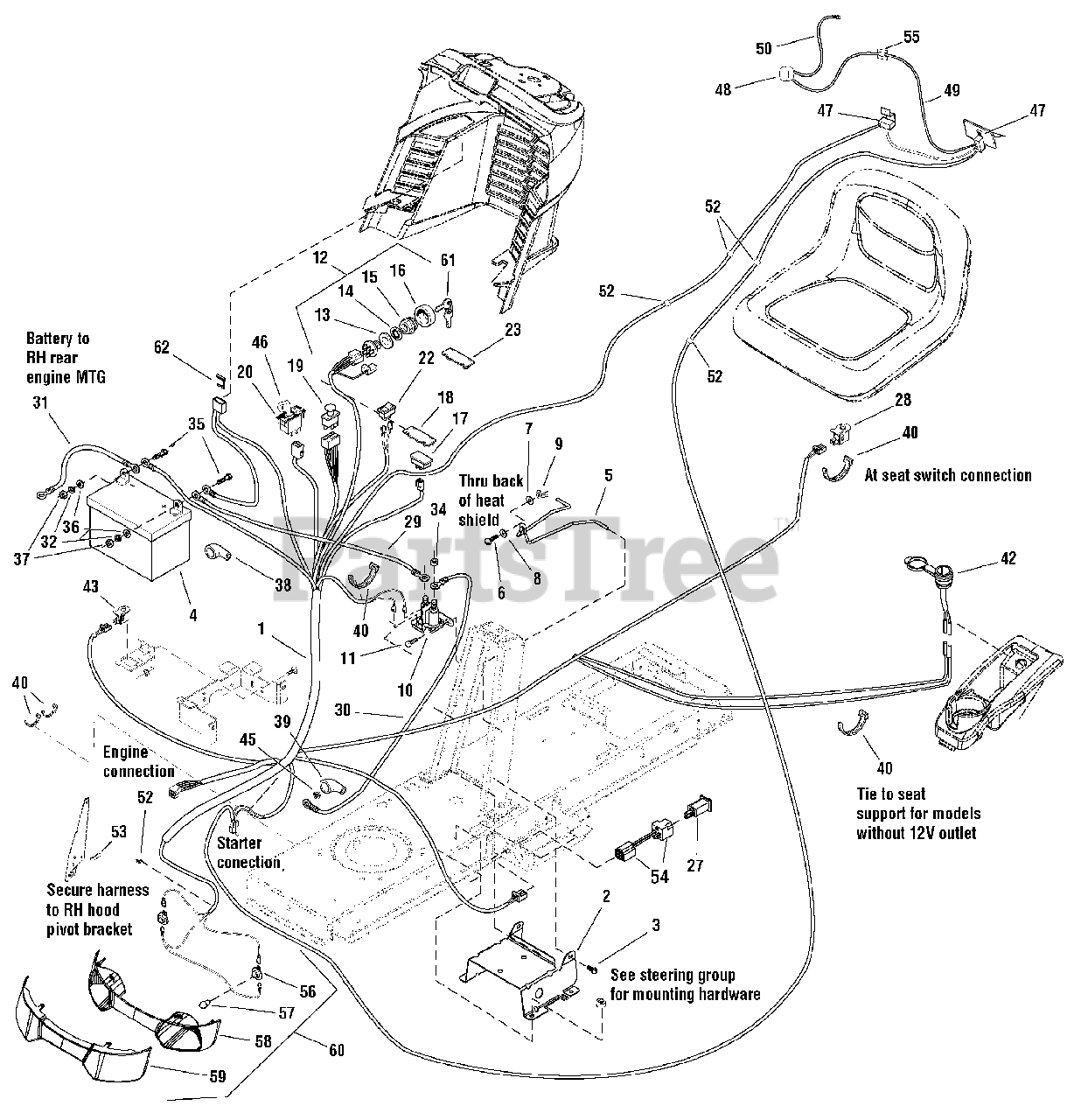

Electrical Group - 18HP & 24HP Parts Diagram

  • Title

1

Snapper 1735475

HARNESS, Main
(Superseded to 1735475YP)

$136.99

$

Usually ships in 2-12 days

0

2

Snapper 1727282

SUPPORT, Battery
(Superseded to 1727282SM)

$30.99

$

Usually ships in 2-12 days

0

3

Snapper 1930601

SCREW, Hex Washer Head, TAPTITE, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

4

Snapper 1685215

BATTERY, 12V 230 CCA DRY
(Superseded to 1685215SM)

$

$

Not available

5

Snapper 1730007

HOLD DOWN, Battery
(Superseded to 1730007SM)

$27.99

$

Usually ships in 2-12 days

0

6

Snapper 1931318

BOLT, Carriage, 1/4-20 x 7/8
(Superseded to 1931318SM)

$4.49

$

In Stock, only 1 left!

0

7

Snapper 1960353

WASHER, Flat .25
(Superseded to 703229)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 1960518

PUSHNUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 15

0

9

Snapper 1920397

NUT, 1/4 ESNA
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 1728963

SOLENOID, 12V
(Superseded to 1755381YP)

$24.99

$

Usually ships in 2-12 days

0

11

Snapper 1925003

SCREW, Hex Washer Head, TAPTITE, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 1716061

SWITCH ASSEMBLY, Ignition
(Superseded to 1686734SM)

Note: (Includes Ref. Nos. 13, 14, 15 & 16)

$32.99

$

In Stock, Qty 20+

0

13

Snapper 2101025

WASHER, 5/8
(Superseded to 2101025SM)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 1960547

WASHER, Lock, Int. Tooth .62
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 6

0

15

Snapper 1717549

NUT, Hex Flange, 5/8, IGN Switch
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

16

Snapper 1717550

COVER, Ignition Switch
(Superseded to 1717550SM)

$8.49

$

In Stock, Qty 9

0

17

Snapper 1728068

HOUR METER
(Superseded to 1731185SM)

Note: (24HP)

$60.99

$

In Stock, only 1 left!

0

18

Snapper 1729993

PLUG, Hour Meter
(Superseded to 1729993SM)

Note: (18HP)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 1722887

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

20

Snapper 1726556

SWITCH, RMO Module Only
(Superseded to 1726556SM)

$

$

Not available

22

Snapper 1716951

SWITCH, Head lights
(Superseded to 1716951SM)

$21.99

$

In Stock, only 3 left!

0

23

Snapper 1722611

PLUG
(Superseded to 1722611SM)

$6.99

$

Usually ships in 2-12 days

0

27

Snapper 1732006

SWITCH, Push (Foot Pedal)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

28

Snapper 1732005

SWITCH, Push NC (Seat)
(Superseded to 7023354YP)

Note: (Use Before S/N 2014602299)

$12.99

$

Usually ships in 2-12 days

0

28

Snapper 1738015

SWITCH, Push NC (Seat)
(Superseded to 1738015YP)

Note: (Use on S/N 2014602299 and after)

$43.99

$

Usually ships in 2-12 days

0

29

Snapper 1716549

CABLE, #6 10.0 Lg Red
(Superseded to 1752685YP)

$11.99

$

Usually ships in 2-12 days

0

30

Snapper 1721830

CABLE, #6 25.0 Lg Red
(Superseded to 1721830SM)

$19.99

$

In Stock, only 1 left!

0

31

Snapper 1713163

CABLE, #6 20.0 Lg Black
(Superseded to 1713163SM)

$24.99

$

Usually ships in 2-12 days

0

32

Snapper 2816964

LOCKWASHER, Spring 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

34

Snapper 2860750

NUT, Hex KEPS Lock, 5/16-24
(Superseded to 2860750SM)

$2.99

$

Usually ships in 2-12 days

0

35

Snapper 2823341

CAPSCREW, Hex, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

36

Snapper 2821319

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

37

Snapper 2816622

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

38

Snapper 1677296

BOOT, Insulator, Battery
(Superseded to 1677296SM)

$6.49

$

In Stock, only 2 left!

0

39

Snapper 1713535

BOOT, Insulator, Red
(Superseded to 1713535SM)

$5.99

$

Usually ships in 2-12 days

0

40

Snapper 1735980

TIE, RT 360 /L=150

$

$

Not available

42

Snapper 7073090

12V AUX. PLUG, With Cover
(Superseded to 7073090SM)

$23.99

$

Usually ships in 2-12 days

0

43

Snapper 1732004

SWITCH, Push Button, NO, Black
(Superseded to 1732004SM)

$8.99

$

In Stock, Qty 7

0

45

Snapper 1960294

NUT, Flange, Whiz, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

46

Snapper 1726557

KEY, RMO Module
(Superseded to 1726557SM)

$5.49

$

In Stock, Qty 20+

0

47

Snapper 1735922

MICROSWITCH, MKH 12 D13 S1

$

$

Not available

48

Snapper 1735852

BEEPER, PF 27 A 29 EP/

$

$

Not available

49

Snapper 1736003

WIRE, 9-8316-616

$

$

Currently unavailable

50

Snapper 1736002

WIRE, 9-8316-615

$

$

Not available

52

Snapper 1735882

CABLE, Clip WSBH 1-0-1

$

$

Not available

53

Snapper 2834683

CLIP, Speed Wire
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

54

Snapper 1734025

PLUG, Shut-Off
(Superseded to 1734025SM)

$14.99

$

In Stock, only 1 left!

0

55

Snapper 1735884

CLIP, Cable WCK 460 01/A

$

$

Currently unavailable

56

Snapper 1723451

SOCKET ASSEMBLY
(Superseded to 1723451SM)

$28.99

$

In Stock, only 1 left!

0

57

Snapper 1677371

BULB, 1141-12V 21CP
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

58

Snapper 1728973

REFLECTOR, Headlight
(Superseded to 1728973SM)

$237.99

$

In Stock, Qty 7

0

59

Snapper 1728974

LENS, Headlight
(Superseded to 1728974SM)

$237.99

$

In Stock, Qty 7

0

60

Snapper 1727296

HEADLIGHT ASSEMBLY
(Superseded to 1727296SM)

Note: (Includes Ref. Nos. 56, 57, 58 & 59)

$237.99

$

In Stock, Qty 7

0

61

Snapper 1717163

KEY, Ignition (Set of 2)
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 13

0

62

Snapper 1731957

FUSE
(Superseded to 1731957SM)

$8.49

$

Usually ships in 2-12 days

0
