ELT 18V38RDF (1696112-00) - Snapper 38"/96cm Lawn Tractor, Rear-Discharge, 18hp Engine Group - 17.5 & 18 Gross HP Parts Diagram

38"/96cm Lawn Tractor, Rear-Discharge, 18hp

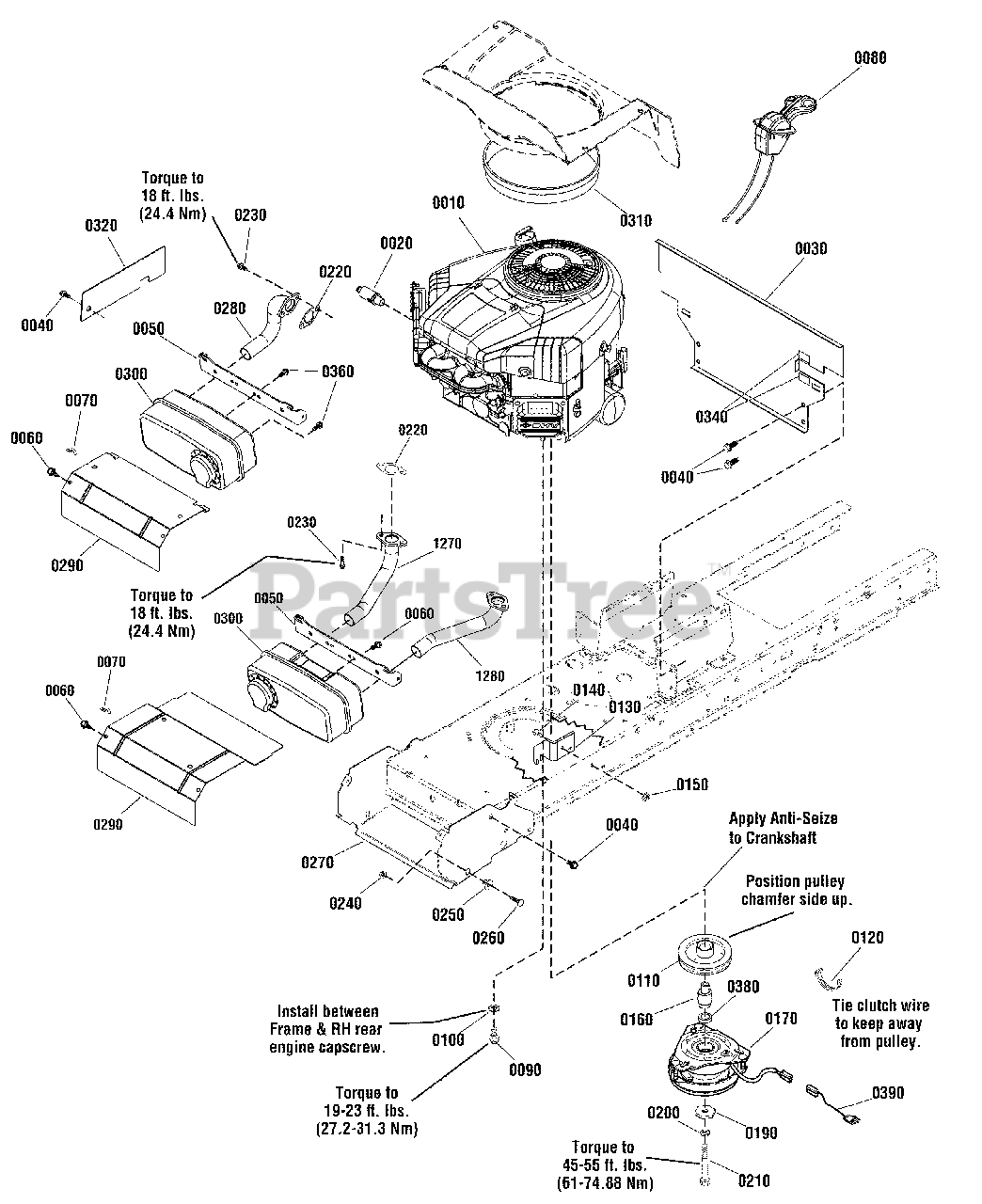

Engine Group - 17.5 & 18 Gross HP Parts Diagram

  • Title

0010

Snapper 31G777-0194-B1

* ENGINE, 17.5HP Briggs & Stratton, Model 31G777-0194-B1

$

$

Not available

0010

Snapper 31G777-0204-B1

* ENGINE, 17.5HP Briggs & Stratton, Model 31G777-0204-B1

$

$

Not available

0010

Snapper 405577-0116-B1

* ENGINE, 18HP Briggs & Stratton, Model 405577-0116-B1

$

$

Not available

0020

Snapper 1750159

VALVE, Shut Off Oil Drain
(Superseded to 1750159YP)

$15.99

$

Usually ships in 2-12 days

0

0030

Snapper 885677A

HEAT SHIELD
(Superseded to 885677BMYP)

$31.99

$

Usually ships in 2-12 days

0

0040

Snapper 1930601

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0050

Snapper 1727976A

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

0060

Snapper 1925003

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

Note: (Qty 4 used on 18 Gross HP Models)

$3.99

$

In Stock, Qty 20+

0

0070

Snapper 2834683

WIRE CLIP
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

0080

Snapper 1751734

THROTTLE CONTROL, Choke-A-Matic
(Superseded to 1751734YP)

Note: (Used on 17.5 Gross HP Models)

$59.99

$

In Stock, only 1 left!

0

0080

Snapper 1727817

THROTTLE CONTROL, Double
(Superseded to 1727817SM)

Note: (Used on 18 Gross HP Models)

$115.99

$

Usually ships in 2-12 days

0

0090

Snapper 2827187

SCREW, Hex Washer, Taptit, 3/8-16 x 1
(Superseded to 1927187SM)

$4.49

$

In Stock, only 4 left!

0

0100

Snapper 2820427

LOCKWASHER, External Tooth
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0110

Snapper 1732576

PULLEY & HUB ASSEMBLY, Engine
(Superseded to 1732576SM)

$42.99

$

In Stock, only 1 left!

0

0120

Snapper 1701011

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0130

Snapper 885535A

BRACKET, Electric Clutch Torque
(Superseded to 885535AYP)

$29.99

$

Usually ships in 2-12 days

0

0140

Snapper 1921332

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

0150

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0160

Snapper 885679

SPACER, Electric Clutch
(Superseded to 885679YP)

$13.99

$

Usually ships in 2-12 days

0

0170

Snapper 885443

CLUTCH, Electric, GT1A- HU02
(Superseded to 885443YP)

Note: (Used before Serial No. 2015765318)

$370.99

$

Usually ships in 2-12 days

0

0170

Snapper 885680

CLUTCH, Electric, GT1A-EH07
(Superseded to 885680YP)

Note: (Used after Serial No. 2015765319)

$307.99

$

Usually ships in 2-12 days

0

0190

Snapper 1708264

WASHER, 7/16
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 7

0

0200

Snapper 1918199

LOCKWSHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

0210

Snapper 7102075

CAPSCREW, Hex Head, 7/16-20 x 5
(Superseded to 7102075YP)

$7.99

$

In Stock, only 1 left!

0

0220

Snapper 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

Note: (Qty 2 used on 18 Gross HP Models)

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 94480

** SCREW, Hex SEMS Lock Washer 5/16-18 x 7/8
(Superseded to 690341)

Note: (Qty 4 used on 18 Gross HP Models)

$5.99

$

In Stock, only 2 left!

0

0240

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0250

Snapper 1728086

PIVOT, Hood
(Superseded to 1728086SM)

$5.99

$

In Stock, only 1 left!

0

0260

Snapper 1931335

BOLT, Carriage, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0270

Snapper 1727982A

BRACKET, Muffler
(Superseded to 1727982ASM)

$70.99

$

Usually ships in 2-12 days

0

0280

Snapper 1728959

EXHAUST PIPE, Single
(Superseded to 1728959SM)

Note: (Used on 17.5 Gross HP Models)

$34.99

$

Usually ships in 2-12 days

0

0290

Snapper 1727996A

HEAT SHIELD, Single
(Superseded to 7300918ASM)

Note: (Used on 17.5 Gross HP Models)

$48.99

$

Usually ships in 2-12 days

0

0290

Snapper 1727997A

HEAT SHIELD, Twin
(Superseded to 1727997ASM)

Note: (Used on 18 Gross HP Models)

$33.99

$

Usually ships in 2-12 days

0

0300

Snapper 885615

MUFFLER, Single
(Superseded to 885615YP)

Note: (Used on 17.5 Gross HP Models)

$66.99

$

Usually ships in 2-12 days

0

0300

Snapper 1727994

MUFFLER, Twin
(Superseded to 1727994SM)

Note: (Used on 18 Gross HP Models)

$98.99

$

Usually ships in 2-12 days

0

0310

Snapper 1734166

EDGING, Rubber, Single
(Superseded to 1734166SM)

Note: (Used on 17.5 Gross HP Models)

$21.99

$

Usually ships in 2-12 days

0

0310

Snapper 1731970

EDGING, Rubber, Twin
(Superseded to 1731970SM)

Note: (Used on 18 Gross HP Models)

$13.99

$

In Stock, only 1 left!

0

0320

Snapper 1736025

GUARD, Pulley
(Superseded to 1736025BMYP)

$8.49

$

Usually ships in 2-12 days

0

0340

Snapper 7070814

TRIM
(Superseded to 1735680SM)

$8.99

$

Usually ships in 2-12 days

0

0360

Snapper 1930601

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0380

Snapper 885810

SPACER, Lower, 1.76" OD, 1.387" ID, .402" Thick
(Superseded to 885810YP)

Note: (Used before Serial No. 2015765318)

$4.49

$

Usually ships in 2-12 days

0

0380

Snapper 885427

SPACER, Electric Clutch
(Superseded to 885427YP)

Note: (Used after Serial No. 2015765319)

$13.99

$

Usually ships in 2-12 days

0

0390

Snapper 885815

HARNESS, Ogura
(Superseded to 885815YP)

Note: (Used after Serial No. 2015765319)

$11.99

$

Usually ships in 2-12 days

0

1270

Snapper 1727979

EXHAUST PIPE, RH
(Superseded to 1727979SM)

Note: (Used on 18 Gross HP Models)

$37.99

$

In Stock, only 1 left!

0

1280

Snapper 1727980

EXHAUST PIPE, LH
(Superseded to 1727980SM)

Note: (Used on 18 Gross HP Models)

$37.99

$

In Stock, only 1 left!

0
