ELT 2040RD (2691070) - Snapper 40" Lawn Tractor, 20hp Controls Group Parts Diagram

40" Lawn Tractor, 20hp

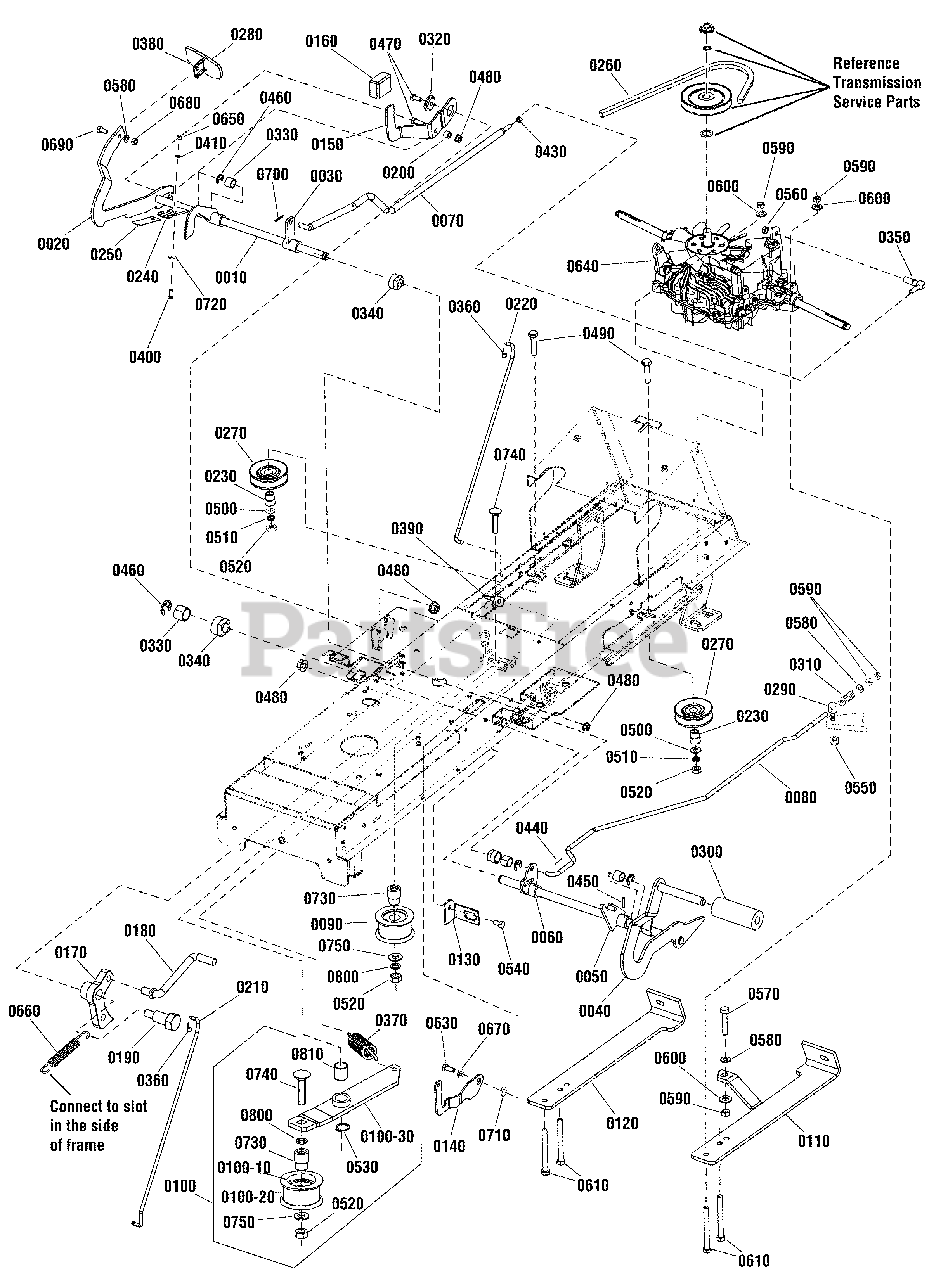

Controls Group Parts Diagram

  • Title

0010

Snapper 1735940

PEDAL, Forward

$

$

Not available

0020

Snapper 1735952

RATCHET

$

$

Not available

0030

Snapper 1735847

ARM

$

$

Not available

0040

Snapper 1735941

PEDAL, Brake

$

$

Not available

0050

Snapper 1735918

LEVER, Parking Brake

$

$

Not available

0060

Snapper 1735917

LEVER, Brake

$

$

Not available

0070

Snapper 1735959

ROD, Traveling

$

$

Not available

0080

Snapper 1735957

ROD, Brake

$

$

Not available

0090

Snapper 1751841

PULLEY, Tensioning

$

$

Not available

0100

Snapper 1735950

PULLEY, Idler

Note: (Incl. Ref. Nos. 0100-10, 0100-20, 0100-30, 0520, 0530, 0730, 0740, 0750, 0800 & 0810)

$

$

Not available

0100-10

Snapper 1736459

BALL BEARING, Pulley, 62032RS

$

$

Not available

0100-20

Snapper 1736458

PULLEY

$

$

Not available

0100-30

Snapper 1736461

ARM, Pulley, Tension

$

$

Not available

0110

Snapper 1735910

HOLDER, Left

$

$

Not available

0120

Snapper 1735911

HOLDER, Right

$

$

Not available

0130

Snapper 1735974

SUPPORT, Switch

$

$

Not available

0140

Snapper 1735595A

LATCH, Brake Lock
(Superseded to 1735595ASM)

$10.99

$

In Stock, only 1 left!

0

0150

Snapper 1727246

PEDAL, Reverse
(Superseded to 1727246SM)

$20.99

$

Usually ships in 2-12 days

0

0160

Snapper 1727259

PAD, Foot Pedal
(Superseded to 1727259SM)

$8.49

$

Usually ships in 2-12 days

0

0170

Snapper 1727897

LATCH, Cruise
(Superseded to 1727897SM)

$9.99

$

In Stock, only 1 left!

0

0180

Snapper 1727899

ROD, Cruise 5/16 Dia. x 2.83"
(Superseded to 1727899SM)

$7.49

$

Usually ships in 2-12 days

0

0190

Snapper 1728976

BOLT, Shoulder, 5/16-18 x 1-5/8
(Superseded to 1728976SM)

$6.49

$

In Stock, only 2 left!

0

0200

Snapper 1728024

SPACER, Foot Pedal
(Superseded to 1728024SM)

$4.99

$

Usually ships in 2-12 days

0

0210

Snapper 1738760

ROD, Cruise Latch, 17"
(Superseded to 1738760YP)

$16.99

$

In Stock, only 1 left!

0

0220

Snapper 1727267

ROD, Parking Brake
(Superseded to 1727267SM)

$15.99

$

Usually ships in 2-12 days

0

0230

Snapper 1735880

BUSHING, 0-9421-418

$

$

Not available

0240

Snapper 1736001

WASHER, Lock

$

$

Not available

0250

Snapper 1735972

SPRING, Flat 0-9740-221

$

$

Not available

0260

Snapper 1752054

V-BELT, Li, BBT, 13 x 2580

$

$

Not available

0270

Snapper 1735949

PULLEY, Compensa C-00237/1

$

$

Not available

0280

Snapper 1735942

PEDAL, Forward Rubber

$

$

Not available

0290

Snapper 1735853

BOLT, 0-9016-447

$

$

Not available

0300

Snapper 1727261

PEDAL, Brake Pad
(Superseded to 1727261SM)

$9.99

$

Usually ships in 2-12 days

0

0310

Snapper 1735968

SPRING, TLZ 250.150.0530 Yellow

$

$

Not available

0320

Snapper 1727935

SPACER, Pivot
(Superseded to 1727935SM)

$5.99

$

In Stock, only 4 left!

0

0330

Snapper 1735896

DISTANCE, Pedal 0-9521-288

$

$

Not available

0340

Snapper 1735881

BUSHING, 0-9462-202

$

$

Not available

0350

Snapper 1735850

BALL JOINT, CS 13 DIN 71802 M8, Silver

$

$

Not available

0360

Snapper 1728111

CLIP, Linkage .250 dia
(Superseded to 1728111SM)

$6.99

$

Usually ships in 2-12 days

0

0370

Snapper 1735969

SPRING, TZ 2x14x62, Yellow

$

$

Not available

0380

Snapper 1735943

PEDAL, Forward, Top

$

$

Not available

0390

Snapper 1735875

BOLT, Eye M6x80 BN1006

$

$

Not available

0400

Snapper 1735866

BOLT, M6 x 16

$

$

Not available

0410

Snapper 1735998

WASHER, 6.4

$

$

Not available

0430

Snapper 1735936

NUT, M8

$

$

Not available

0440

Snapper 1735963

SPINDLE, 2 x 20

$

$

Not available

0450

Snapper 1735946

PIN, Flex. 5 x 25

$

$

Not available

0460

Snapper 1735920

LOCK RING, 12

$

$

Not available

0470

Snapper 1960223

BOLT, Carriage, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

Usually ships in 2-12 days

0

0480

Snapper 1931277

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0490

Snapper 1735855

BOLT, M10 x 40

$

$

Not available

0500

Snapper 1735990

WASHER, 10.5

$

$

Not available

0510

Snapper 1735991

WASHER, 10.0

$

$

Not available

0520

Snapper 1735925

NUT, M10

$

$

Not available

0530

Snapper 1735921

LOCK RING, 16

$

$

Not available

0540

Snapper 1930601

SCREW, Tap, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0550

Snapper 1735924

NUT, M10

$

$

Not available

0560

Snapper 1735938

NUT, M8 DIN 6923 8 Yellow, Tooth

$

$

Not available

0570

Snapper 1735873

BOLT, M8 x 45

$

$

Not available

0580

Snapper 1735989

WASHER, 8.4

$

$

Not available

0590

Snapper 1735934

NUT, M8

$

$

Not available

0600

Snapper 1736000

WASHER, 8

$

$

Not available

0610

Snapper 1735874

BOLT, M8 x 75

$

$

Not available

0630

Snapper 1729576

BOLT, Shoulder 5/16-18 x 1-3/16
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0640

Snapper 1735476

TRANSMISSION, Tuff Torq, K-46CW

$

$

Not available

0650

Snapper 1735933

NUT, M6

$

$

Not available

0660

Snapper 2159181

SPRING
(Superseded to 2159181SM)

$7.49

$

In Stock, only 2 left!

0

0670

Snapper 1735994

WASHER, 14 x 26/0.2

$

$

Not available

0680

Snapper 1735935

NUT, M8

$

$

Not available

0690

Snapper 1751843

BOLT, M8 x 20

$

$

Not available

0700

Snapper 1735964

SPINDLE, 3.2 x 25

$

$

Not available

0710

Snapper 1739135

WASHER, 16 x 22 x 1

$

$

Not available

0720

Snapper 1751842

WASHER, 6

$

$

Not available

0730

Snapper 1751840

BUSHING, Pulley, Tension

$

$

Not available

0740

Snapper 1751844

BOLT, M10 x 45

$

$

Not available

0750

Snapper 1751845

WASHER, 11

$

$

Not available

0800

Snapper 1736456

LOCK RING, 40

$

$

Not available

0810

Snapper 1736462

BEARING, Slide

$

$

Not available
