ELT 2040RDF (2691071) - Snapper 40" Lawn Tractor, 20hp Hood, Grille & Dash Group Parts Diagram

40" Lawn Tractor, 20hp

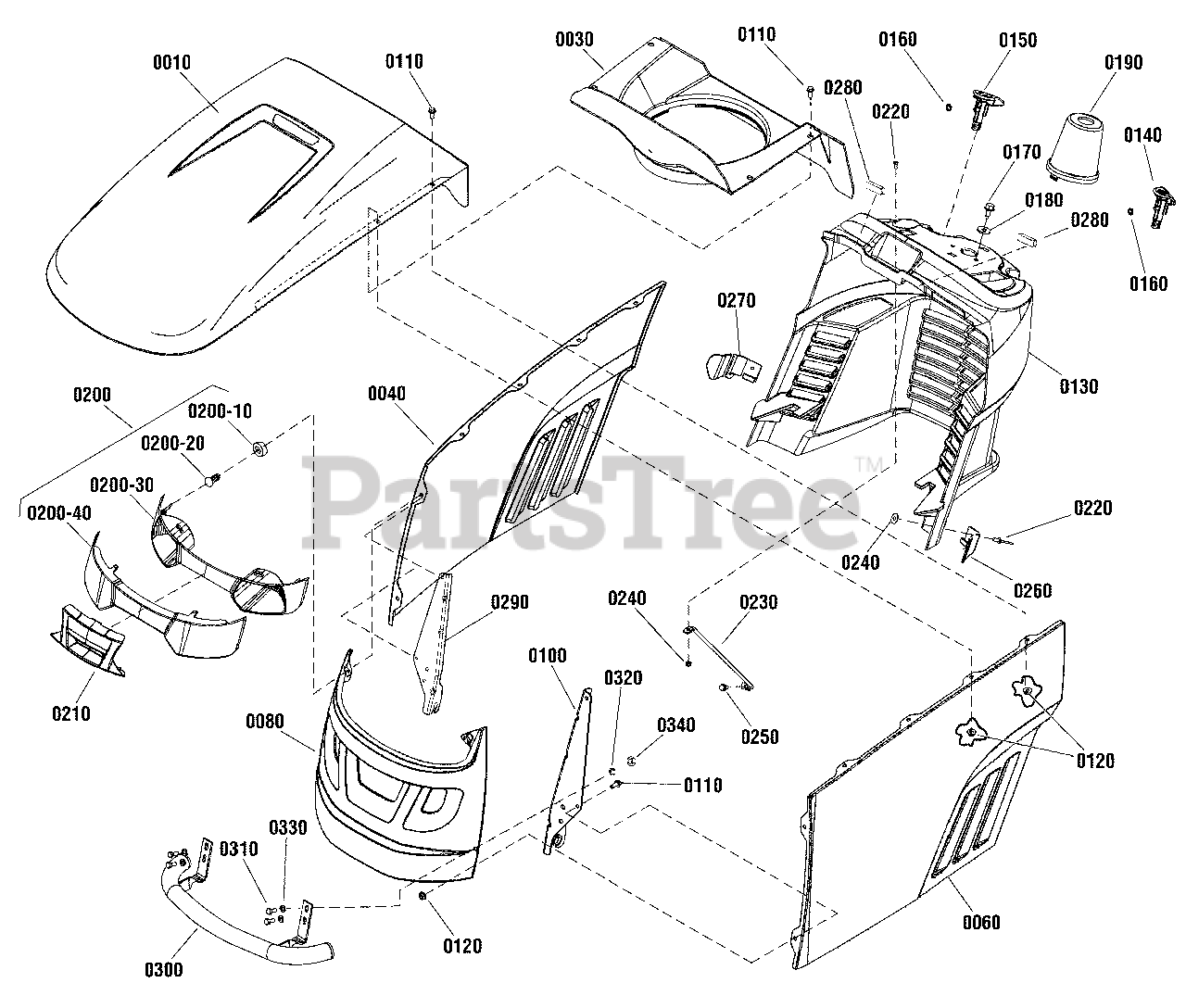

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Snapper 1728031D

HOOD, With Scoop
(Superseded to 1728031DSM)

$311.99

$

In Stock, only 1 left!

0

0030

Snapper 7102326

DUCT, Air Inlet
(Superseded to 7102326YP)

$131.99

$

In Stock, only 1 left!

0

0040

Snapper 1727294D

PANEL, Hood, Right
(Superseded to 1727294DSM)

$128.99

$

Usually ships in 2-12 days

0

0060

Snapper 1727295D

PANEL, Hood, Left
(Superseded to 1727295DSM)

$111.99

$

Usually ships in 2-12 days

0

0080

Snapper 1728059D

GRILLE
(Superseded to 1728059DSM)

$143.99

$

Usually ships in 2-12 days

0

0100

Snapper 1727279

HINGE, Hood, Left
(Superseded to 1727279BMYP)

$20.99

$

Usually ships in 2-12 days

0

0110

Snapper 1960295

CAPSCREW, Hex Lock, 1/4-20 x 5/8
(Superseded to 1960295SM)

$4.49

$

In Stock, only 3 left!

0

0120

Snapper 1930641

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0130

Snapper 1727293

DASHBOARD
(Superseded to 1727293SM)

$202.99

$

Usually ships in 2-12 days

0

0140

Snapper 1728089

KNOB, Brake Lock
(Superseded to 1728089SM)

$7.49

$

In Stock, only 1 left!

0

0150

Snapper 1728090

KNOB, Cruise Lock
(Superseded to 1728090SM)

$7.49

$

In Stock, Qty 14

0

0160

Snapper 1960518

NUT, Push Pal, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 17

0

0170

Snapper 1664847

CAPSCREW, Hex Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0180

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 13

0

0190

Snapper 1727999

COVER, Steering Shaft
(Superseded to 1727999SM)

$17.99

$

Usually ships in 2-12 days

0

0200

Snapper 1727296

HEADLIGHT ASSEMBLY
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

0200-10

Snapper 1723451

SOCKET ASSEMBLY
(Superseded to 1723451SM)

Note: (Included in Ref. 0200)

$28.99

$

In Stock, only 1 left!

0

0200-20

Snapper 1677371

BULB, 1141-12V 21CP
(Superseded to 1677371SM)

Note: (Included in Ref. 0200)

$30.99

$

In Stock, only 1 left!

0

0200-30

Snapper 1728973

REFLECTOR, Headlight
(Superseded to 1728973SM)

Note: (Included in Ref. 0200)

$237.99

$

In Stock, Qty 7

0

0200-40

Snapper 1728974

LENS, Headlight
(Superseded to 1728974SM)

Note: (Included in Ref. 0200)

$237.99

$

In Stock, Qty 7

0

0210

Snapper 1728975

INSERT, Light Bar
(Superseded to 1728975SM)

$12.99

$

In Stock, only 1 left!

0

0220

Snapper 1960392

SCREW, Phillips Head
(Superseded to 1960392SM)

$3.99

$

Usually ships in 2-12 days

0

0230

Snapper 1723123

ROD, Dash Support
(Superseded to 1723123SM)

$11.99

$

Usually ships in 2-12 days

0

0240

Snapper 1933896

NUT, Flange
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0250

Snapper 1925003

SCREW, Self Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0260

Snapper 1732030

GUIDE, Hood, Left
(Superseded to 1732030SM)

$7.49

$

In Stock, only 4 left!

0

0270

Snapper 1732031

GUIDE, Hood, Right
(Superseded to 1732031SM)

$7.49

$

In Stock, Qty 11

0

0280

Snapper 1735878

BRAID, Steel-Insert 0-9634-219

$

$

Not available

0290

Snapper 1727280

HINGE, Hood, Right
(Superseded to 1727280ASM)

$20.99

$

In Stock, only 1 left!

0

0300

Snapper 1735879

BUMPER, Front

$

$

Not available

0310

Snapper 1735868

BOLT, M8 x 20

$

$

Not available

0320

Snapper 1735989

WASHER, 8.4

$

$

Not available

0330

Snapper 1736000

WASHER, 8

$

$

Not available

0340

Snapper 1735934

NUT, M8

$

$

Not available
