EM 21 EMR A - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) Handle Group Model Es20zsr Parts Diagram

Walk-Behind Mower

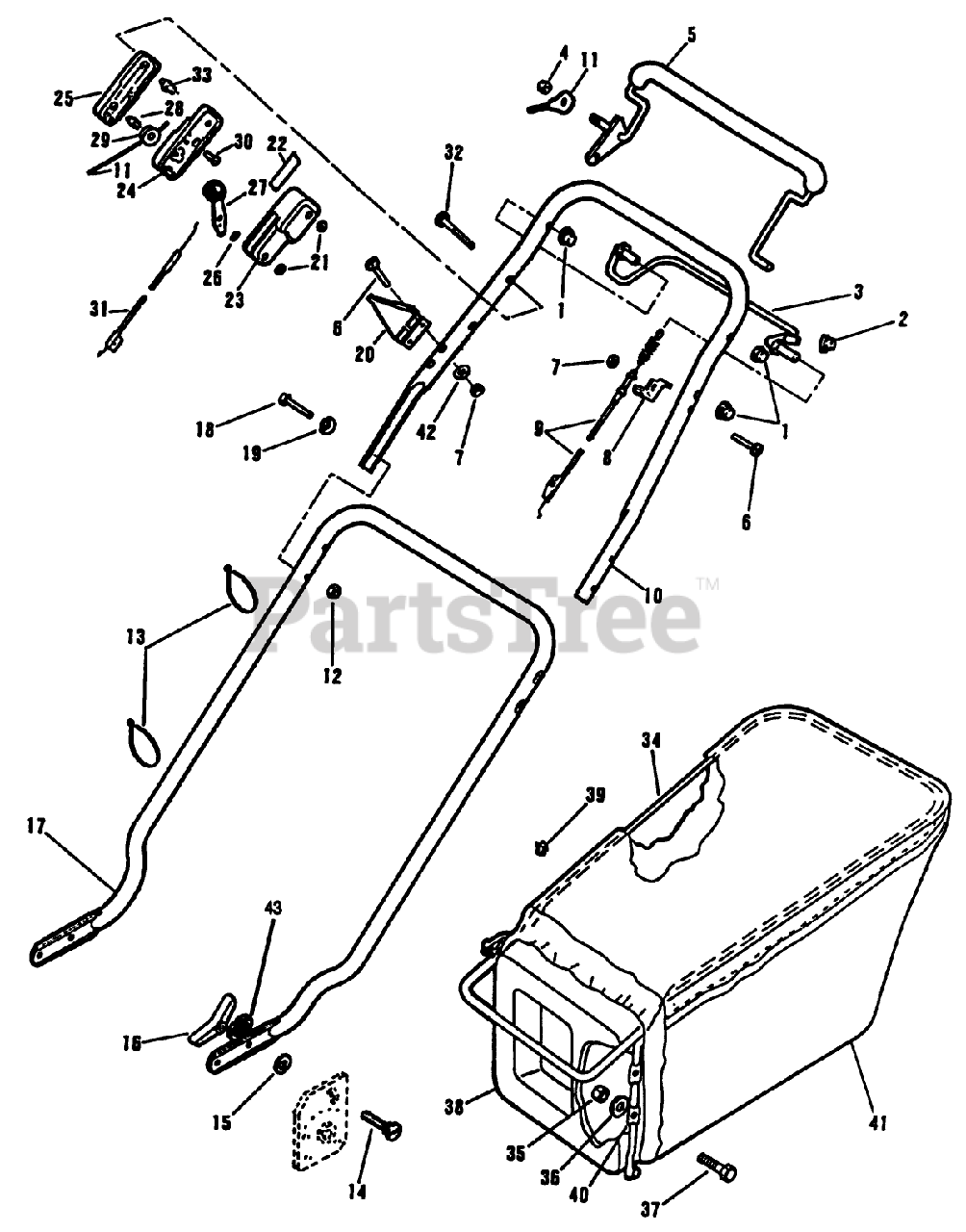

Handle Group Model Es20zsr Parts Diagram

  • Title

1

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$1.49

$

In Stock, Qty 15

0

2

Lawn-Boy 60997

Palnut-Cable to Bail

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Currently unavailable

3

Lawn-Boy 68401

Self-propelled Bail

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Currently unavailable

4

Lawn-Boy 612168

NUT ACORN

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 683478

CONTROL LEVER ARG

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 611233

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 146084

ANCHOR C'DUIT TRO

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

9

Lawn-Boy 68401

Self-propelled Bail

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Currently unavailable

10

Lawn-Boy 61363

Top Handle Section

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Currently unavailable

11

Lawn-Boy 683733

CONTROL CABLE

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$111.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 614249

TIE-CABLE

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 14601

Bolt-Handle to Handle Bracket

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Currently unavailable

15

Lawn-Boy 145509

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

16

Lawn-Boy 607544

NUT-WING

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$22.99

$

In Stock, only 4 left!

0

17

Lawn-Boy 613159

LOWER HANDLE *G

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$350.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 61120

Screw-Handle to Handle

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Currently unavailable

19

Lawn-Boy 609739

WASHER-CURVED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.49

$

In Stock, Qty 10

0

20

Lawn-Boy 153254

DISCONTINUED
(Superseded to 682684)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

21

Lawn-Boy 61125

Spacer

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Currently unavailable

22

Lawn-Boy 61269

Decal-Throttle Control

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Currently unavailable

23

Lawn-Boy 612634

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

24

Lawn-Boy 612633

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

25

Lawn-Boy 611777

OUTER CONTROL CASE

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$27.99

$

In Stock, only 1 left!

0

26

Lawn-Boy 612586

WASHER-SPRING

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 5

0

27

Lawn-Boy 683663

LEVER&KNOB AY WES

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

28

Lawn-Boy 611542

PIN SKF

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 612564

PULLEY PL

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 611543

SCREW

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 612646

T/CABLE WESCON

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

32

Lawn-Boy 611799

SCREW

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 611541

COLUMN

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 611530

HANGER BAG TROX

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$115.99

$

In Stock, only 2 left!

0

Lawn-Boy 684007

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

35

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

36

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

37

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

38

Lawn-Boy 611500

BAG ADAPTOR PL

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

39

Lawn-Boy 613155

S CLIP ARDEN

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

40

Lawn-Boy 684008

LATCH BAR AY ARGO

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$156.99

$

Usually ships in 3-6 days

0

41

Grass Bag (Accessory Part No. 684020)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

42

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

43

Lawn-Boy 146258

See Supercession: 3253-4
(Superseded to 3253-4)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$0.99

$

In Stock, Qty 20+

0
