EM1600 A (GE200) - Honda Generator, Made in Japan (SN: GE200-1000001 - GE200-9999999) EM1600 CONTROL BOX Parts Diagram

Generator, Made in Japan

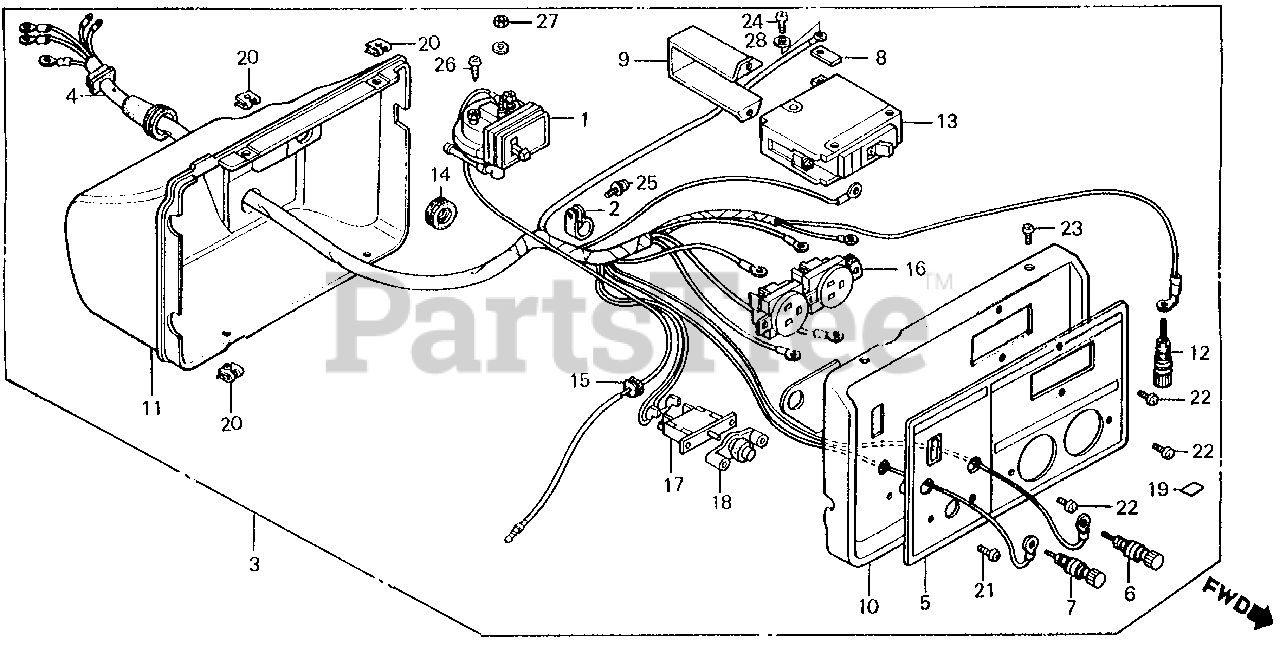

EM1600 CONTROL BOX Parts Diagram

  • Title

1

Honda 15520-898-003

SWITCH ASSY., UNIT

$125.99

$

Usually ships in 3-6 days

0

2

Honda 30566-898-000

CLAMP, CABLE

$

$

Not available

3

Honda 31401-897-731H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

4

Honda 31404-897-741

WIRE HARNESS ASSY.

$

$

Not available

5

Honda 31406-897-730

MARK, SWITCH PANEL

$

$

Not available

6

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$53.99

$

Usually ships in 3-6 days

0

7

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$53.99

$

Usually ships in 3-6 days

0

8

Honda 31414-880-000

TERMINAL, BREAKER

$21.99

$

Usually ships in 3-6 days

0

9

Honda 31415-898-630

SUPPORT, BREAKER

$

$

Not available

10

Honda 31420-897-731H

PANEL, CONTROL *R8* (BRIGHT RED)

$

$

Not available

11

Honda 31425-898-700

CASE, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 31428-880-910

TERMINAL ASSY., GROUND

$

$

Not available

13

Honda 31430-897-800

BREAKER, CIRCUIT (15A)

$

$

Not available

14

Honda 31473-898-000

GROMMET, UNIT SWITCH

$7.99

$

Usually ships in 3-6 days

0

15

Honda 31486-898-700

GROMMET, SWITCH WIRE

$

$

Not available

16

Honda 32330-877-000

RECEPTACLE (15A/125V)

$93.99

$

Usually ships in 3-6 days

0

17

Honda 38240-898-000

PROTECTOR, CIRCUIT (DC)

$42.99

$

In Stock, only 2 left!

0

18

Honda 38250-898-000

LENS ASSY., PROTECTOR

$28.99

$

Usually ships in 3-6 days

0

19

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.99

$

In Stock, only 4 left!

0

20

Honda 90320-692-000

NUT, SPRING (5MM)

$10.99

$

Usually ships in 3-6 days

0

21

Honda 93500-03012-0A

SCREW, PAN (3X12)

$1.49

$

In Stock, Qty 6

0

22

Honda 93500-04006-0A

SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93500-05012-3J

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93893-04016-10

SEE PART DETAILS - SUP; SCREW-WASHER (4X16)
(Superseded to 93893-04016-00)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 93901-15120

SCREW, TAPPING (5X10)

$0.99

$

Usually ships in 3-6 days

0

27

Honda 94001-05390-0S

NUT, HEX. (5MM)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 94111-05800

WASHER, SPRING (5MM)

$1.99

$

Usually ships in 3-6 days

0
