EM1600X A (GX140) - Honda Generator, Made in Japan (SN: GX140-1000001 - GX140-3263982) CONTROL BOX (EM1600X) Parts Diagram

Generator, Made in Japan

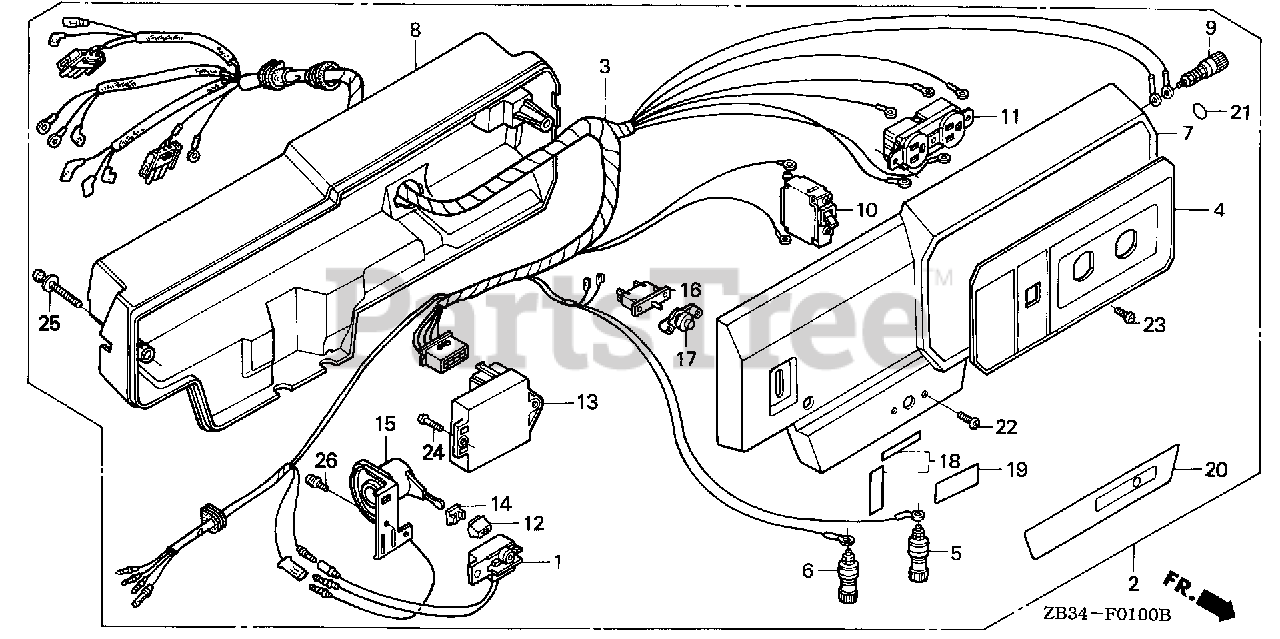

CONTROL BOX (EM1600X) Parts Diagram

  • Title

1

Honda 15520-ZB2-003

ALERT UNIT, OIL (NOT AVAILABLE)

$

$

Not available

2

Honda 31401-ZB2-631H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 1710750.

$

$

Not available

2

Honda 31401-ZB2-633ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use from Frame SN 1710751.

$

$

Not available

3

Honda 31405-ZB2-630

WIRE HARNESS ASSY.

Note: Use up to Frame SN 1710750.

$

$

Not available

3

Honda 31405-ZB2-631

WIRE HARNESS ASSY.

Note: Use from Frame SN 1710751.

$

$

Not available

4

Honda 31407-ZB2-630

MARK, SWITCH PANEL

$40.99

$

Usually ships in 3-6 days

0

5

Honda 31408-880-000

TERMINAL, D.C. OUTPUT (+)

$43.99

$

Usually ships in 3-6 days

0

6

Honda 31409-880-000

TERMINAL, D.C. OUTPUT (-)

$43.99

$

Usually ships in 3-6 days

0

7

Honda 31421-ZB2-630ZA

PANEL, CONTROL *R8* (BRIGHT RED)

$

$

Not available

8

Honda 31425-ZB2-000ZA

SEE PART DETAILS - SUP; CASE, CONTROL *R8* (BRIGHT RED)

$

$

Not available

8

Honda 31425-ZB2-000ZE

SEE PART DETAILS - PRI; CASE, CONTROL *R280* (POWER RED)

$125.99

$

Usually ships in 3-6 days

0

9

Honda 31428-ZA5-003

TERMINAL ASSY., GROUND

$

$

Not available

10

Honda 31430-ZB2-630

BREAKER, CIRCUIT (13A)

$

$

Not available

11

Honda 32330-ZA3-003

RECEPTACLE (15A-125V)

$

$

Not available

12

Honda 32343-892-003

KNOB, PETCOCK LEVER

$12.99

$

Usually ships in 3-6 days

0

13

Honda 32350-ZB3-702

SEE PART DETAILS - SUP; REGULATOR UNIT, AUTOMATIC VOLTAGE
(Superseded to 32350-ZB3-703)

Note: Use up to Frame SN 2309162.

$190.99

$

Usually ships in 3-6 days

0

13

Honda 32350-ZB3-703

SEE PART DETAILS - PRI; REGULATOR UNIT, AUTOMATIC VOLTAGE

$190.99

$

Usually ships in 3-6 days

0

14

Honda 36106-892-003

BUSH, CONTROL KNOB

$6.49

$

Usually ships in 3-6 days

0

15

Honda 36110-ZB2-003

SWITCH ASSY., ENGINE

$32.99

$

Usually ships in 3-6 days

0

16

Honda 38240-898-000

PROTECTOR, CIRCUIT (D.C.)

$34.99

$

In Stock, only 4 left!

0

17

Honda 38250-898-000

LENS ASSY., PROTECTOR

$22.99

$

Usually ships in 3-6 days

0

18

Honda 87501-ZB2-630

MARK, SWITCH (NOT AVAILABLE)

$

$

Not available

19

Honda 87502-ZB2-630

MARK, OIL ALERT (NOT AVAILABLE)

$

$

Not available

20

Honda 87524-ZB2-630

MARK, D.C. OUTPUT (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 87534-892-640

MARK, GROUND

$2.49

$

In Stock, Qty 5

0

22

Honda 93500-03012-0A

SCREW, PAN (3X12)

$0.99

$

In Stock, Qty 7

0

23

Honda 93500-04006-0A

SCREW, PAN (4X6)

$0.99

$

Usually ships in 3-6 days

0

24

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

25

Honda 93891-06045-08

SCREW-WASHER (6X45)

$

$

Not available

26

Honda 93892-04008-08

SCREW-WASHER (4X8)

$1.49

$

Usually ships in 3-6 days

0
