EM2200 A (GE200) - Honda Generator, Made in Japan (SN: GE200-1000001 - GE200-9999999) CONTROL BOX Parts Diagram

Generator, Made in Japan

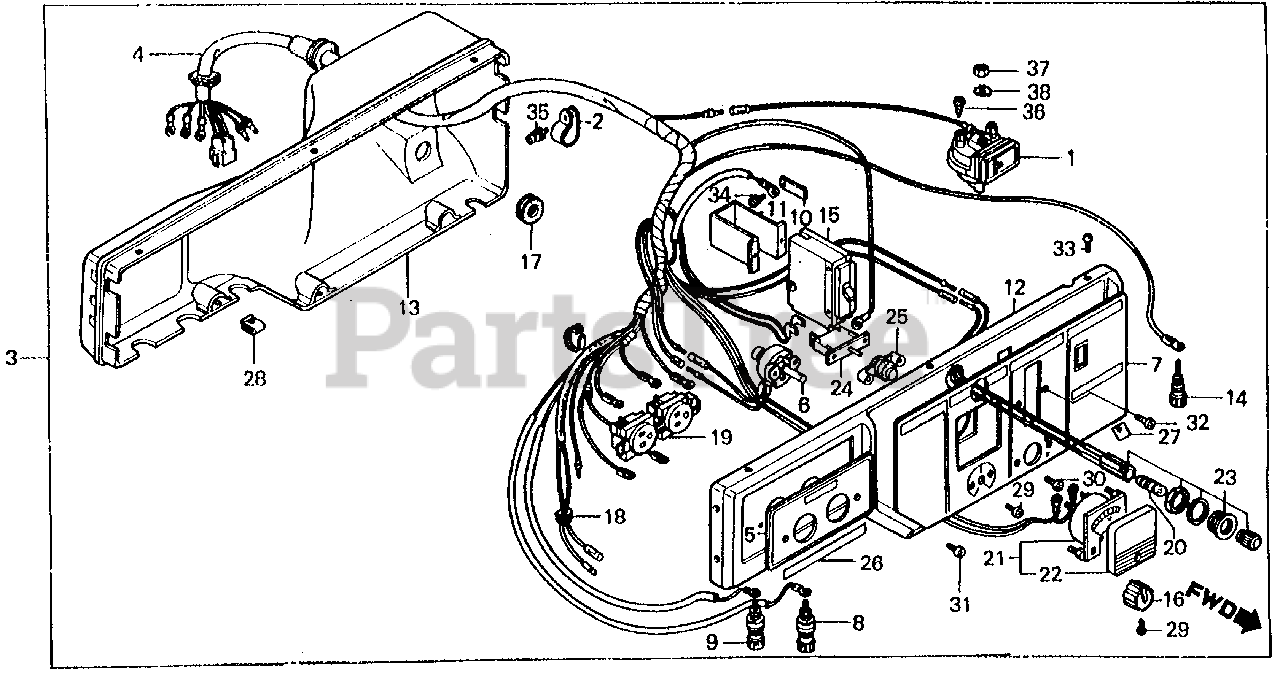

CONTROL BOX Parts Diagram

  • Title

1

Honda 15520-898-003

SWITCH ASSY., UNIT

$125.99

$

Usually ships in 3-6 days

0

2

Honda 30566-898-000

CLAMP, CABLE

$

$

Not available

3

Honda 31400-898-631H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

4

Honda 31404-898-631

WIRE HARNESS

$

$

Not available

5

Honda 31405-898-630

MARK, A.C. OUTPUT

$

$

Not available

6

Honda 31406-876-003

RESISTOR, VARIABLE (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 31406-898-630

MARK, SWITCH PANEL (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$53.99

$

Usually ships in 3-6 days

0

9

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$53.99

$

Usually ships in 3-6 days

0

10

Honda 31414-880-000

TERMINAL, BREAKER

$21.99

$

Usually ships in 3-6 days

0

11

Honda 31415-898-630

SUPPORT, BREAKER

$

$

Not available

12

Honda 31420-898-003H

PANEL, CONTROL *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 31425-898-000

CASE, CONTROL

$

$

Not available

14

Honda 31428-880-910

TERMINAL ASSY., GROUND

$

$

Not available

15

Honda 31430-898-630

BREAKER, CIRCUIT (18A)

$

$

Not available

16

Honda 31461-898-000

KNOB, ADJUSTING

$16.99

$

Usually ships in 3-6 days

0

17

Honda 31473-898-000

GROMMET, UNIT SWITCH

$7.99

$

Usually ships in 3-6 days

0

18

Honda 31486-898-700

GROMMET, SWITCH WIRE

$

$

Not available

19

Honda 32330-877-000

RECEPTACLE (15A/125V)

$93.99

$

Usually ships in 3-6 days

0

20

Honda 34909-880-000

BULB (24V2W)

$9.99

$

Usually ships in 3-6 days

0

21

Honda 37450-898-000

SEE PART DETAILS - PRI; VOLTMETER ASSY.

$270.99

$

Usually ships in 3-6 days

0

22

Honda 37451-898-000

LENS, METER

$

$

Not available

23

Honda 37560-880-000

SEE PART DETAILS - SUP; SOCKET ASSY., PILOT LAMP
(Superseded to 37560-ZA0-003)

$41.99

$

Usually ships in 3-6 days

0

24

Honda 38240-898-000

PROTECTOR, CIRCUIT (DC)

$42.99

$

In Stock, only 2 left!

0

25

Honda 38250-898-000

LENS ASSY., PROTECTOR

$28.99

$

Usually ships in 3-6 days

0

26

Honda 87524-898-630

MARK, D.C. OUTPUT (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.99

$

In Stock, only 4 left!

0

28

Honda 90320-692-000

NUT, SPRING (5MM)

$10.99

$

Usually ships in 3-6 days

0

29

Honda 93500-03006-0G

SCREW, PAN (3X6)

$0.99

$

In Stock, only 3 left!

0

30

Honda 93500-03012-0G

SCREW, PAN (3X12)

$

$

Not available

31

Honda 93500-04006-0A

SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 93500-04006-0G

SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 5

0

34

Honda 93500-05012-3J

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 93893-04016-10

SEE PART DETAILS - SUP; SCREW-WASHER (4X16)
(Superseded to 93893-04016-00)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 93901-15120

SCREW, TAPPING (5X10)

$0.99

$

Usually ships in 3-6 days

0

37

Honda 94001-05390-0S

NUT, HEX. (5MM)

$1.99

$

Usually ships in 3-6 days

0

38

Honda 94111-05800

WASHER, SPRING (5MM)

$1.99

$

Usually ships in 3-6 days

0
