EM2500X K1 A/A (EZCN) - Honda Generator, Made in Japan (SN: EZCN-1000001 - EZCN-1036738) CONTROL BOX (EM1800X/K1, EM2200X, EM2500XK1) Parts Diagram

Generator, Made in Japan

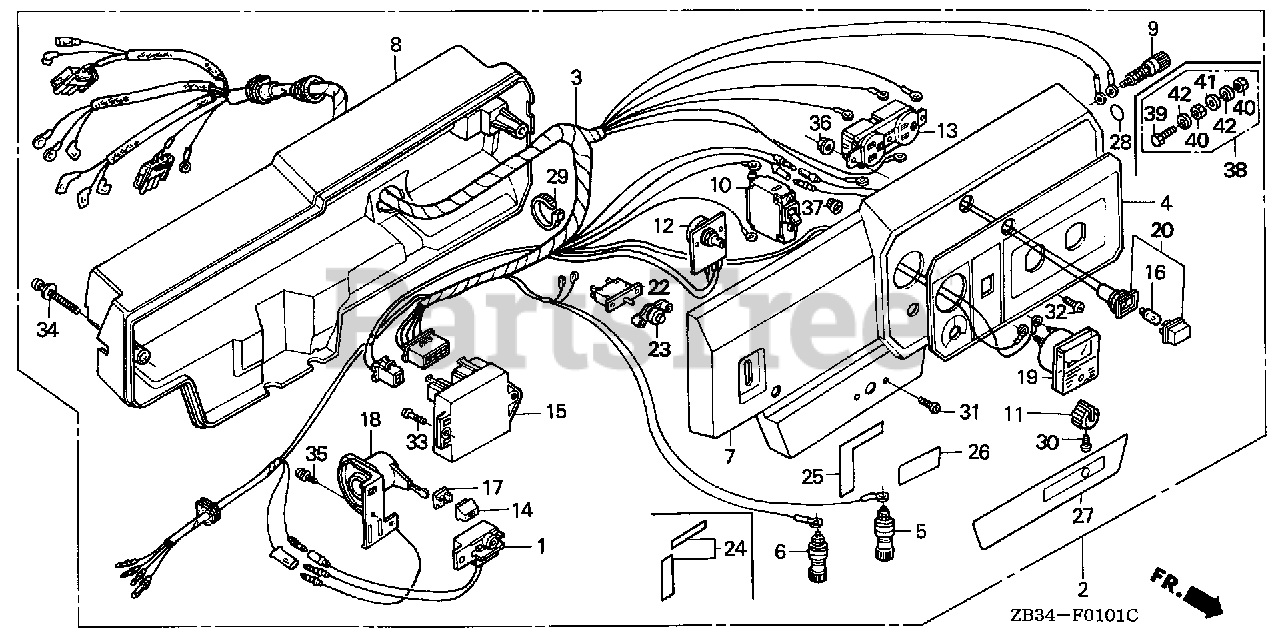

CONTROL BOX (EM1800X/K1, EM2200X, EM2500XK1) Parts Diagram

  • Title

1

Honda 15520-ZB2-003

ALERT UNIT, OIL (NOT AVAILABLE)

Note: Use up to Frame SN 1019657.

$

$

Not available

2

Honda 31400-ZB3-C31ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 1019657.

$

$

Not available

2

Honda 31400-ZB3-C32ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use from Frame SN 1019658.

$

$

Currently unavailable

3

Honda 31404-ZB3-C31

WIRE HARNESS ASSY.

$

$

Not available

4

Honda 31406-ZB2-C31

MARK, SWITCH PANEL (NOT AVAILABLE)

$

$

Not available

5

Honda 31408-880-000

TERMINAL, D.C. OUTPUT (+)

$43.99

$

Usually ships in 3-6 days

0

6

Honda 31409-880-000

TERMINAL, D.C. OUTPUT (-)

$43.99

$

Usually ships in 3-6 days

0

7

Honda 31420-ZB3-C31ZA

PANEL, CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 1019657.

$186.99

$

Usually ships in 3-6 days

0

7

Honda 31420-ZB3-C32ZA

PANEL, CONTROL *R8* (BRIGHT RED)

Note: Use from Frame SN 1019658.

$250.99

$

Usually ships in 3-6 days

0

8

Honda 31425-ZB2-000ZA

SEE PART DETAILS - SUP; CASE, CONTROL *R8* (BRIGHT RED)

$

$

Not available

8

Honda 31425-ZB2-000ZE

SEE PART DETAILS - PRI; CASE, CONTROL *R280* (POWER RED)

$125.99

$

Usually ships in 3-6 days

0

9

Honda 31428-ZA5-003

TERMINAL ASSY., GROUND

$

$

Not available

10

Honda 31430-ZB3-E30

BREAKER, CIRCUIT (20A)

$91.99

$

Usually ships in 3-6 days

0

11

Honda 31461-898-000

KNOB, ADJUSTING

$12.99

$

Usually ships in 3-6 days

0

12

Honda 31465-ZB2-631

RESISTOR

$103.99

$

Usually ships in 3-6 days

0

13

Honda 32330-899-631

RECEPTACLE (20A/125V) (MATSUSHITA)

$65.99

$

Usually ships in 3-6 days

0

14

Honda 32343-892-003

KNOB, PETCOCK LEVER

$12.99

$

Usually ships in 3-6 days

0

15

Honda 32350-ZB3-014

SEE PART DETAILS - PRI; REGULATOR UNIT, AUTOMATIC VOLTAGE

$186.99

$

In Stock, only 1 left!

0

16

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W)

$3.49

$

In Stock, only 1 left!

0

17

Honda 36106-892-003

BUSH, CONTROL KNOB

$6.49

$

Usually ships in 3-6 days

0

18

Honda 36110-ZB2-003

SWITCH ASSY., ENGINE (STOP SWITCH)

$32.99

$

Usually ships in 3-6 days

0

19

Honda 37450-ZB2-C00

SEE PART DETAILS - PRI; VOLTMETER ASSY.

$214.99

$

Usually ships in 3-6 days

0

20

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN)

$40.99

$

Usually ships in 3-6 days

0

22

Honda 38240-898-000

PROTECTOR, CIRCUIT (D.C.)

$34.99

$

In Stock, only 4 left!

0

23

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

$18.99

$

Usually ships in 3-6 days

0

25

Honda 87501-ZB3-C31

MARK, ENGINE SWITCH INDICATION

$4.49

$

Usually ships in 3-6 days

0

26

Honda 87162-ZB3-C00

MARK, OIL INDICATION

Note: Use up to Frame SN 1019657.

$2.49

$

Usually ships in 3-6 days

0

26

Honda 87532-ZH8-810

MARK, OIL ALERT (ENGLISH)

Note: Use from Frame SN 1019658.

$4.99

$

In Stock, only 2 left!

0

27

Honda 87524-ZB3-C31

MARK, D.C. OUTPUT

$

$

Not available

28

Honda 87534-892-640

MARK, GROUND

$2.49

$

In Stock, Qty 5

0

29

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$5.49

$

Usually ships in 3-6 days

0

30

Honda 93500-03008-0A

SCREW, PAN (3X8)

$0.99

$

In Stock, only 1 left!

0

31

Honda 93500-03012-0H

SCREW, PAN (3X12)

$0.99

$

Usually ships in 3-6 days

0

33

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

34

Honda 93891-06045-08

SCREW-WASHER (6X45)

$

$

Not available

35

Honda 93892-04008-08

SCREW-WASHER (4X8)

Note: Use up to Frame SN 1019657.

$1.49

$

Usually ships in 3-6 days

0

35

Honda 93892-04008-08

SCREW-WASHER (4X8)

Note: Use from Frame SN 1019658.

$1.49

$

Usually ships in 3-6 days

0

36

Honda 94050-04000

NUT, FLANGE (4MM)

$1.49

$

Usually ships in 3-6 days

0
