EM3000 A (GE300) - Honda Generator, Made in Japan (SN: GE300-1000001 - GE300-9999999) EM3000 C.D.I. UNIT + EXCITER COIL Parts Diagram

Generator, Made in Japan

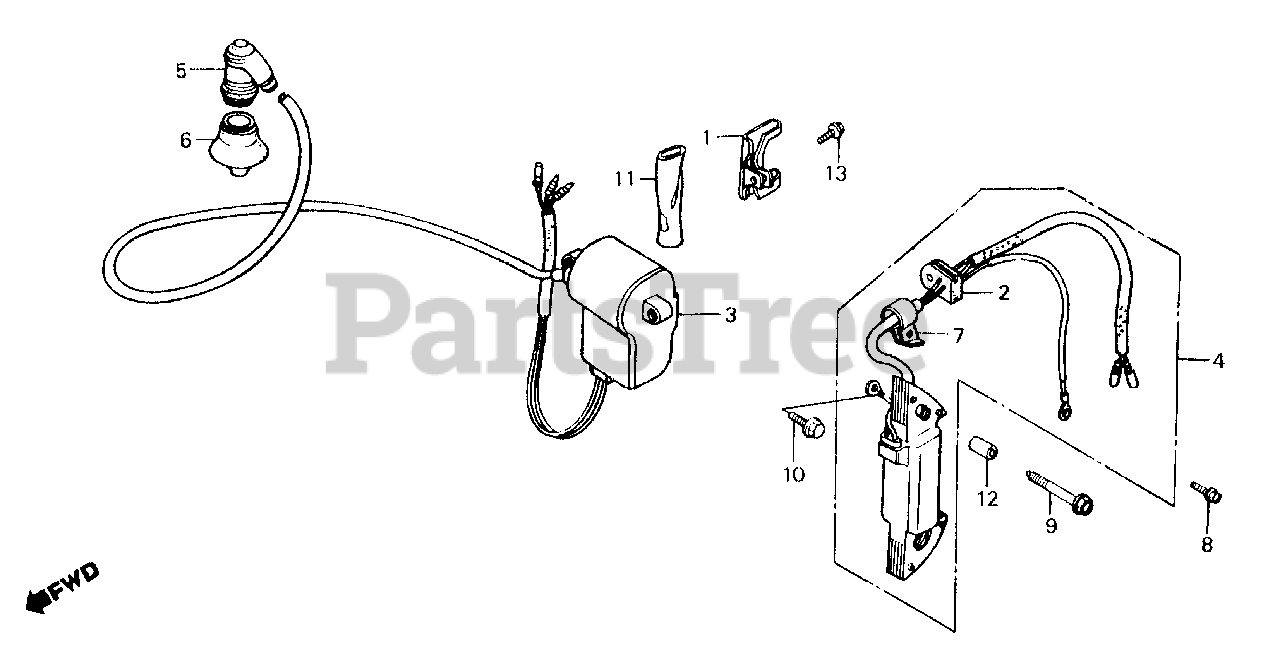

EM3000 C.D.I. UNIT + EXCITER COIL Parts Diagram

  • Title

1

Honda 30561-899-600

CLIP, WIRE

$

$

Not available

2

Honda 30563-889-731

GROMMET, WIRE

$

$

Not available

3

Honda 30580-899-601

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 30590-899-601

COIL ASSY., EXCITER (NOT AVAILABLE)

$

$

Not available

5

Honda 30700-898-013

CAP ASSY., NOISE SUPPRESSOR

$16.99

$

Usually ships in 3-6 days

0

6

Honda 30701-898-003

SEAL, IGNITION

$11.99

$

Usually ships in 3-6 days

0

7

Honda 30702-890-000

CLAMP, IGNITION WIRE

$6.49

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 17

0

9

Honda 90015-883-000

BOLT, FLANGE (6X28)

$3.49

$

In Stock, only 3 left!

0

10

Honda 90019-883-000

BOLT, FLANGE (5X10)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 91406-899-000

TUBE, WIRE

$

$

Not available

12

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 14

0

13

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

13

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0
