EM3500SX K1 A/C (EA6) - Honda Generator, Made in Japan (SN: EA6-1150001 - EA6-1999999) EM CONTROL BOX (FROM EA6-1143263) Parts Diagram

Generator, Made in Japan

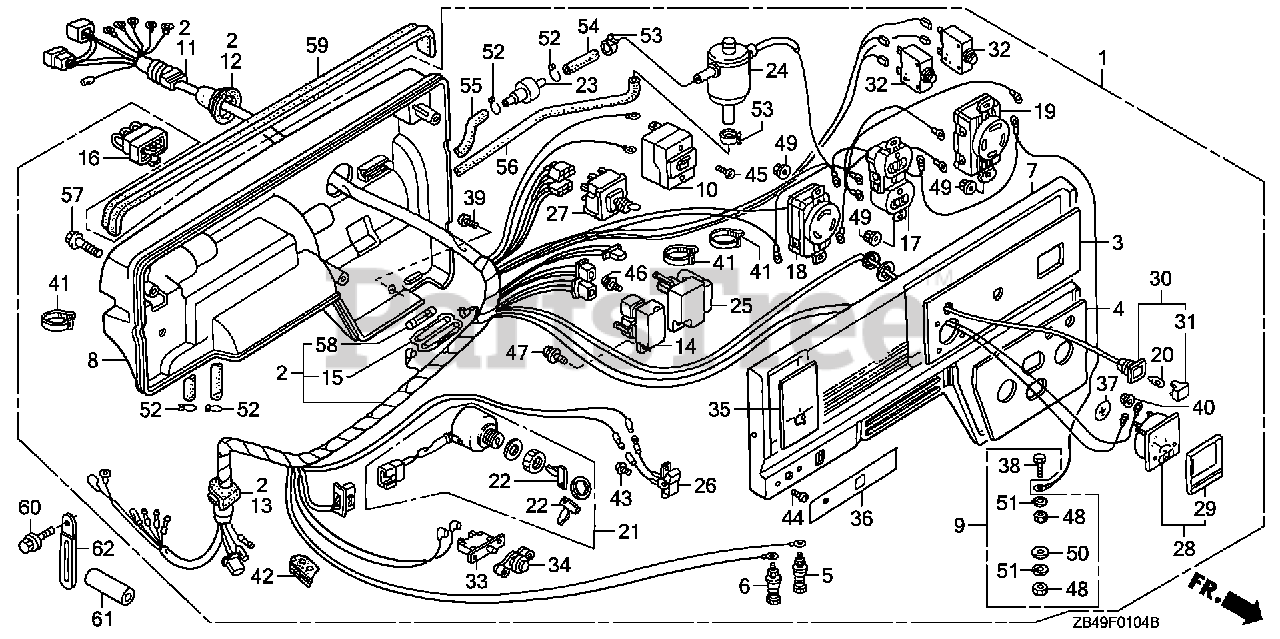

EM CONTROL BOX (FROM EA6-1143263) Parts Diagram

  • Title

1

Honda 31400-ZB4-S31ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 1151650.

$

$

Not available

1

Honda 31400-ZB4-S31ZB

BOX ASSY., CONTROL *R280* (POWER RED)

Note: Use from Frame SN 1151651.

$

$

Not available

2

Honda 31404-ZB4-S31

WIRE HARNESS ASSY. (NOT AVAILABLE)

$

$

Not available

3

Honda 31406-ZB4-A31

MARK, SWITCH PANEL

$

$

Not available

4

Honda 31408-ZB4-S30

MARK, A.C. OUT

$48.99

$

Usually ships in 3-6 days

0

5

Honda 31408-880-000

TERMINAL, D.C. OUTPUT (+)

$53.99

$

Usually ships in 3-6 days

0

6

Honda 31409-880-000

TERMINAL, D.C. OUTPUT (-)

$53.99

$

Usually ships in 3-6 days

0

7

Honda 31420-ZB4-A41ZB

PANEL, CONTROL *R280* (POWER RED)

$

$

Not available

8

Honda 31425-ZB4-010ZD

CASE, CONTROL *R280* (POWER RED)

$

$

Not available

9

Honda 31428-ZB4-013

TERMINAL SET, GROUND

$13.99

$

Usually ships in 3-6 days

0

10

Honda 31430-ZB4-630

BREAKER, CIRCUIT (14A)

$326.99

$

Usually ships in 3-6 days

0

11

Honda 31481-ZB4-003

GROMMET, A.C. WIRE

$

$

Not available

12

Honda 31482-ZB4-003

GROMMET, MAIN WIRE

$19.99

$

Usually ships in 3-6 days

0

13

Honda 31483-ZB4-003

GROMMET, SWITCH WIRE

$

$

Not available

14

Honda 31710-ZB4-003

DIODE ASSY.

$135.99

$

Usually ships in 3-6 days

0

15

Honda 32114-230-003

CASE, FUSE CONNECTOR (SUMITOMO)

$6.49

$

Usually ships in 3-6 days

0

16

Honda 32130-ZB4-000

CONNECTOR ASSY.

$24.99

$

Usually ships in 3-6 days

0

17

Honda 32330-Z03-C31

RECEPTACLE (20A/125V)

$58.99

$

In Stock, only 1 left!

0

18

Honda 32332-Z04-C31

RECEPTACLE (30A/125V)

$67.99

$

In Stock, only 1 left!

0

19

Honda 32332-899-630

RECEPTACLE (20A-125/250V) (MATSUSHITA) (NOT AVAILABLE)

$

$

Not available

20

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W)

$4.49

$

Usually ships in 3-6 days

0

21

Honda 35100-ZB4-013

SEE PART DETAILS - SUP; SWITCH ASSY., COMBINATION
(Superseded to 35100-ZB4-023)

$161.99

$

In Stock, only 1 left!

0

21

Honda 35100-ZB4-023

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (HONDALOCK)

$161.99

$

In Stock, only 1 left!

0

22

Honda 35111-880-013

KEY (HONDALOCK)

$13.99

$

In Stock, only 2 left!

0

23

Honda 36135-ZF6-D41

VALVE, DASHPOT CHECK

$47.99

$

In Stock, only 2 left!

0

24

Honda 36170-ZB4-013

SEE PART DETAILS - PRI; VALVE ASSY., SOLENOID

$100.99

$

Usually ships in 3-6 days

0

25

Honda 36210-ZB4-014

SEE PART DETAILS - PRI; THROTTLE UNIT, AUTO (SAWAFUJI)

$288.99

$

Usually ships in 3-6 days

0

26

Honda 36214-ZB4-013

SEE PART DETAILS - PRI; SWITCH, AUTO THROTTLE
(Superseded to 36214-ZB4-023)

$47.99

$

In Stock, only 2 left!

0

27

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$253.99

$

Usually ships in 3-6 days

0

28

Honda 37450-ZB4-651

METER ASSY., VOLT (300V)

$

$

Not available

29

Honda 37451-ZB4-003

LENS, METER

$23.99

$

In Stock, only 2 left!

0

30

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN)

$52.99

$

Usually ships in 3-6 days

0

31

Honda 37563-ZA0-801

LENS (GREEN)

$5.49

$

In Stock, only 1 left!

0

32

Honda 38240-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (20A)
(Superseded to 38240-ZC6-E31)

$92.99

$

In Stock, only 2 left!

0

32

Honda 38240-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

$92.99

$

In Stock, only 2 left!

0

33

Honda 38240-898-000

PROTECTOR, CIRCUIT (D.C.)

$42.99

$

In Stock, only 2 left!

0

34

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

$22.99

$

Usually ships in 3-6 days

0

35

Honda 87501-ZB4-A32

MARK, ENGINE SWITCH

$

$

Not available

36

Honda 87524-ZB4-A31

MARK, D.C. OUT

$8.49

$

Usually ships in 3-6 days

0

37

Honda 87534-892-640

MARK, GROUND

$2.99

$

In Stock, only 4 left!

0

38

Honda 90011-899-840

BOLT, HEX. (6X28)

$4.99

$

Usually ships in 3-6 days

0

39

Honda 90101-692-000

SCREW, GLOVE BOX

$1.99

$

Usually ships in 3-6 days

0

40

Honda 90201-ZB4-003

NUT, FLANGE (3MM)

$2.49

$

Usually ships in 3-6 days

0

41

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$6.99

$

Usually ships in 3-6 days

0

42

Honda 91601-ZB4-003

GROMMET, TUBE

$4.99

$

Usually ships in 3-6 days

0

43

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, Qty 8

0

44

Honda 93500-03012-0H

SCREW, PAN (3X12)

$1.49

$

Usually ships in 3-6 days

0

45

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 5

0

46

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.99

$

In Stock, Qty 16

0

47

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

$1.99

$

Usually ships in 3-6 days

0

47

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12)
(Superseded to 93893-04012-08)

$1.99

$

Usually ships in 3-6 days

0

48

Honda 94001-06390-0S

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

49

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 2 left!

0

50

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

51

Honda 94111-06800

WASHER, SPRING (6MM)

$1.99

$

Usually ships in 3-6 days

0

52

Honda 95002-02070

CLIP, TUBE (B7)

$2.99

$

In Stock, only 2 left!

0

53

Honda 95002-40800-08

CLAMP, TUBE (D8)

$3.49

$

In Stock, Qty 20+

0

54

Honda 95005-35008-10M

BULK HOSE, VACUUM (3.5X8000) (3.5X30)

$175.99

$

Usually ships in 3-6 days

0

55

Honda 95005-35008-10M

BULK HOSE, VACUUM (3.5X8000) (95005-35001-10M(95005-35001-1

$175.99

$

Usually ships in 3-6 days

0

56

Honda 95005-35008-10M

BULK HOSE, VACUUM (3.5X8000) (95005-35001-10M(95005-35001-1

$175.99

$

Usually ships in 3-6 days

0

57

Honda 95701-06040-08

BOLT, FLANGE (6X40)

$2.99

$

Usually ships in 3-6 days

0

58

Honda 98200-21000

FUSE B (10A)

$1.49

$

In Stock, Qty 8

0

59

Honda 31462-ZB4-000

RUBBER, CONTROL

$23.99

$

Usually ships in 3-6 days

0

60

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

61

Honda 91406-ZB3-740

TUBE, CORD

$5.99

$

Usually ships in 3-6 days

0

62

Honda 91406-671-000

CLIP, WIRE HARNESS

$23.99

$

Usually ships in 3-6 days

0
