EM3500X A (EA6) - Honda Generator, Made in Japan (SN: EA6-2000001 - EA6-3000000) CONTROL BOX (EM3500X) Parts Diagram

Generator, Made in Japan

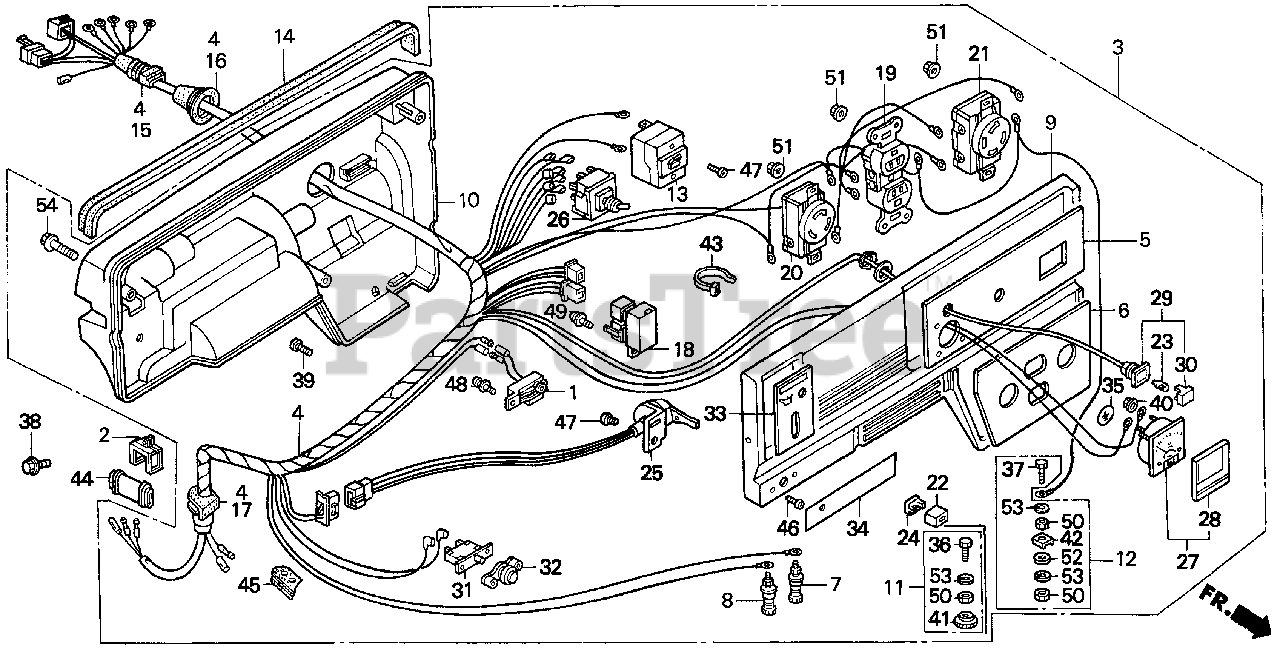

CONTROL BOX (EM3500X) Parts Diagram

  • Title

1

Honda 15520-ZB2-003

ALERT UNIT, OIL (NOT AVAILABLE)

$

$

Not available

2

Honda 30561-ZB4-000

CLIP, WIRE

$6.49

$

Usually ships in 3-6 days

0

3

Honda 31400-ZB4-732ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

4

Honda 31404-ZB4-731

WIRE HARNESS ASSY.

Note: Use up to Frame SN 2012250.

$

$

Currently unavailable

4

Honda 31404-ZB4-732

WIRE HARNESS ASSY. (NOT AVAILABLE)

Note: Use from Frame SN 2012251.

$

$

Currently unavailable

5

Honda 31406-ZB4-630

MARK, SWITCH PANEL (EMS-A)

$

$

Not available

6

Honda 31408-ZB4-630

MARK, A.C. OUT (NOT AVAILABLE)

Note: Use up to Frame SN 2006752.

$

$

Currently unavailable

6

Honda 31408-ZB4-631

MARK, A.C. OUT (NOT AVAILABLE)

Note: Use from Frame SN 2006753.

$

$

Currently unavailable

7

Honda 31408-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (+)

$43.99

$

Usually ships in 3-6 days

0

8

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUTPUT (-)

$43.99

$

Usually ships in 3-6 days

0

9

Honda 31420-ZB4-720H

PANEL, CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 2005661.

$

$

Currently unavailable

9

Honda 31420-ZB4-721ZA

PANEL, CONTROL *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use from Frame SN 2005662.

$

$

Currently unavailable

10

Honda 31425-ZB4-010ZD

SEE PART DETAILS - PRI; CASE, CONTROL *R280* (POWER RED)

$

$

Not available

11

Honda 31428-ZB4-013

TERMINAL SET, GROUND

Note: Use up to Frame SN 2017331.

$10.99

$

Usually ships in 3-6 days

0

12

Honda 31428-899-840

TERMINAL SET, GROUND

Note: Use from Frame SN 2017332.

$21.99

$

Usually ships in 3-6 days

0

13

Honda 31430-ZB4-630

BREAKER, CIRCUIT (13A)

$251.99

$

Usually ships in 3-6 days

0

14

Honda 31462-ZB4-000

RUBBER, CONTROL

$18.99

$

In Stock, only 1 left!

0

15

Honda 31481-ZB4-003

GROMMET, A.C. WIRE

$13.99

$

Usually ships in 3-6 days

0

16

Honda 31482-ZB4-003

GROMMET, MAIN WIRE

$16.99

$

Usually ships in 3-6 days

0

17

Honda 31483-ZB4-003

SEE PART DETAILS - PRI; GROMMET, SWITCH WIRE

$11.99

$

Usually ships in 3-6 days

0

18

Honda 31710-ZB4-731

DIODE ASSY.

$

$

Not available

19

Honda 32330-899-631

RECEPTACLE (20A/125V) (MATSUSHITA)

$65.99

$

Usually ships in 3-6 days

0

20

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$32.99

$

Usually ships in 3-6 days

0

21

Honda 32332-899-630

RECEPTACLE (20A-125/250V) (MATSUSHITA) (NOT AVAILABLE)

$

$

Not available

22

Honda 32343-892-003

SEE PART DETAILS - PRI; KNOB, PETCOCK LEVER

$12.99

$

Usually ships in 3-6 days

0

23

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W) Use from Frame SN 1001725.

$3.49

$

In Stock, only 1 left!

0

24

Honda 36106-892-003

BUSH, CONTROL KNOB

$6.49

$

Usually ships in 3-6 days

0

25

Honda 36110-ZB4-701

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP
(Superseded to 36110-ZB4-702)

$31.99

$

Usually ships in 3-6 days

0

25

Honda 36110-ZB4-702

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

$31.99

$

Usually ships in 3-6 days

0

26

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$199.99

$

Usually ships in 3-6 days

0

27

Honda 37450-ZB4-651

METER ASSY., VOLT (300V)

$277.99

$

Usually ships in 3-6 days

0

28

Honda 37451-ZB4-003

LENS, METER

$18.99

$

Usually ships in 3-6 days

0

29

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN) Use from Frame SN 1001725.

$40.99

$

Usually ships in 3-6 days

0

30

Honda 37563-ZA0-801

LENS (GREEN) Use from Frame SN 1001725.

$4.49

$

Usually ships in 3-6 days

0

31

Honda 38240-898-000

PROTECTOR, CIRCUIT (D.C.)

$34.99

$

In Stock, only 4 left!

0

32

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR (Honda Code 1888676).

$18.99

$

Usually ships in 3-6 days

0

33

Honda 87501-ZB4-730

MARK, ENGINE SWITCH

$

$

Currently unavailable

34

Honda 87524-ZB4-730

MARK, D.C. OUT

$

$

Not available

35

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.49

$

In Stock, Qty 5

0

36

Honda 90011-ZB4-000

BOLT, HEX. (6X22)

Note: Use up to Frame SN 2017331.

$4.49

$

Usually ships in 3-6 days

0

37

Honda 90011-899-840

BOLT, HEX. (6X28)

Note: Use from Frame SN 2017332.

$4.49

$

Usually ships in 3-6 days

0

38

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

39

Honda 90101-692-000

SCREW, GLOVE BOX

$1.99

$

Usually ships in 3-6 days

0

40

Honda 90201-ZB4-003

NUT, FLANGE (3MM) Use from Frame SN 1001725.

Note: Use from Frame SN 2017332.

$1.99

$

Usually ships in 3-6 days

0

41

Honda 90381-812-710

NUT, SPECIAL (6MM)

Note: Use up to Frame SN 2017331.

$2.49

$

In Stock, only 1 left!

0

42

Honda 90501-ZA7-640

RETAINER (6MM)

Note: Use from Frame SN 2017332.

$3.99

$

Usually ships in 3-6 days

0

43

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$5.49

$

Usually ships in 3-6 days

0

44

Honda 91406-ZB4-000

TUBE, CORD

$11.99

$

Usually ships in 3-6 days

0

45

Honda 91601-ZB4-003

GROMMET, TUBE

$3.99

$

Usually ships in 3-6 days

0

46

Honda 93500-03012-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X12) (Honda Code 0665521).

$0.99

$

Usually ships in 3-6 days

0

47

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

$1.49

$

In Stock, Qty 10

0

48

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 6

0

49

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12) Use up to Engine SN 2056819.

$1.99

$

Usually ships in 3-6 days

0

49

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12) Use up to Engine SN 2056819.
(Superseded to 93893-04012-08)

$1.99

$

Usually ships in 3-6 days

0

50

Honda 94001-06390-0S

NUT, HEX. (6MM)

Note: Use up to Frame SN 2017331.

$1.99

$

Usually ships in 3-6 days

0

50

Honda 94001-06390-0S

NUT, HEX. (6MM)

Note: Use from Frame SN 2017332.

$1.99

$

Usually ships in 3-6 days

0

51

Honda 94050-04000

NUT, FLANGE (4MM)

$1.49

$

Usually ships in 3-6 days

0

52

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

Note: Use from Frame SN 2017332.

$0.99

$

In Stock, Qty 20+

0

53

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

Note: Use up to Frame SN 2017331.

$1.49

$

Usually ships in 3-6 days

0

53

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

Note: Use from Frame SN 2017332.

$1.49

$

Usually ships in 3-6 days

0

54

Honda 95701-06040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2105872).

$2.49

$

Usually ships in 3-6 days

0
