EM3800SX A (EAMC) - Honda Generator, Made in China (SN: EAMC-1000001 - EAMC-9999999) STARTER MOTOR (EM3800SX) Parts Diagram

Generator, Made in China

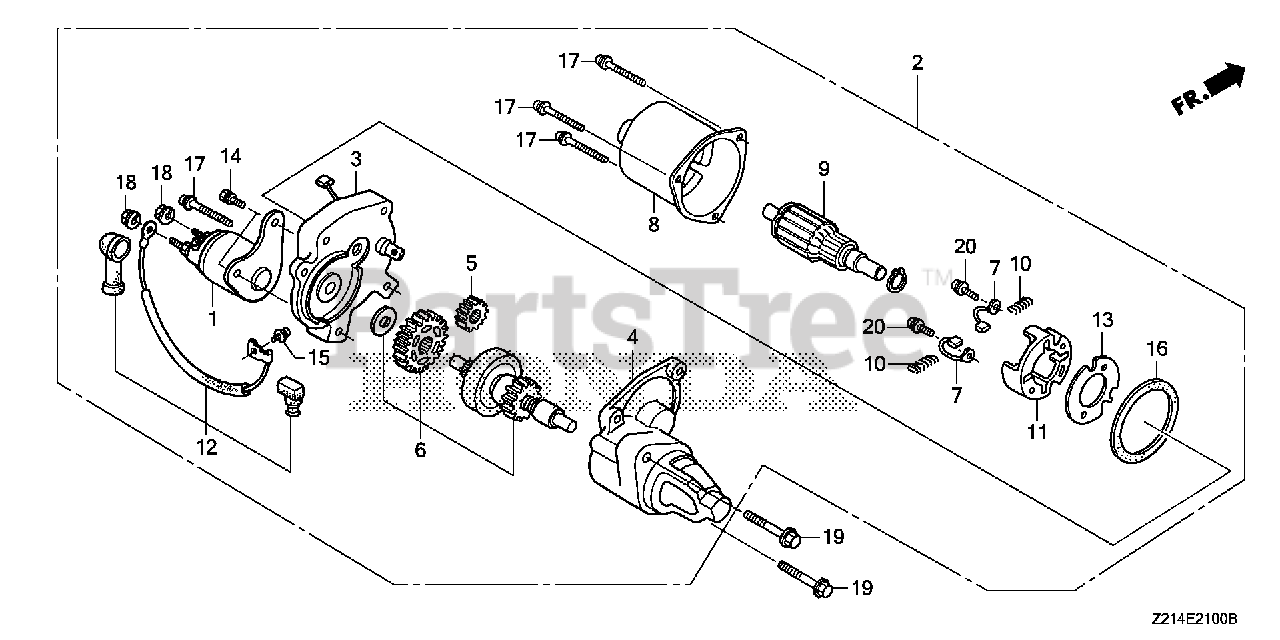

STARTER MOTOR (EM3800SX) Parts Diagram

  • Title

1

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY. (Honda Code 2108298).

$165.99

$

In Stock, only 1 left!

0

2

Honda 31210-ZE2-003

MOTOR UNIT, STARTER (Honda Code 2026425).

$612.99

$

Usually ships in 3-6 days

0

3

Honda 31211-ZE2-003

BRACKET, CENTER (Honda Code 2026433).

$126.99

$

Usually ships in 3-6 days

0

4

Honda 31212-ZE2-003

BRACKET, FR. (Honda Code 2026441).

$145.99

$

Usually ships in 3-6 days

0

5

Honda 31213-ZE2-003

GEAR, DRIVE PINION (Honda Code 2026458).

$64.99

$

Usually ships in 3-6 days

0

6

Honda 31214-ZE2-003

CLUTCH, OVERRUNNING (Honda Code 2026466).

$345.99

$

Usually ships in 3-6 days

0

7

Honda 31215-ZE2-003

BRUSH (Honda Code 2026474).

$14.99

$

In Stock, only 2 left!

0

8

Honda 31216-ZE2-003

YOKE (Honda Code 2026482).

$53.99

$

Usually ships in 3-6 days

0

9

Honda 31217-ZE2-003

ARMATURE (Honda Code 2026490).

$98.99

$

Usually ships in 3-6 days

0

10

Honda 31219-ZE2-003

SPRING, BRUSH RETURN (Honda Code 2026508).

$4.99

$

In Stock, only 2 left!

0

11

Honda 31231-ZE2-003

HOLDER, BRUSH (Honda Code 2026516).

$17.99

$

Usually ships in 3-6 days

0

12

Honda 31232-ZE2-013

WIRE, WATER COVER (Honda Code 2158335).

Note: Use up to Engine SN 4850607.

$6.99

$

Usually ships in 3-6 days

0

12

Honda 31232-ZE3-003

WIRE, WATER COVER (Honda Code 2108355).

Note: Use from Engine SN 4850608.

$15.99

$

Usually ships in 3-6 days

0

13

Honda 31233-ZE2-003

INSULATOR (Honda Code 2026524).

$15.99

$

Usually ships in 3-6 days

0

14

Honda 90007-ZE2-003

BOLT-WASHER (5X14)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90110-ZE2-003

SCREW-WASHER (4X6) (Honda Code 2027100).

$3.49

$

Usually ships in 3-6 days

0

16

Honda 91601-ZE2-003

GASKET (Honda Code 2027266).

$8.99

$

Usually ships in 3-6 days

0

17

Honda 93892-05032-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X3) (Honda Code 1171891).

$2.49

$

Usually ships in 3-6 days

0

18

Honda 94070-06080

SEE PART DETAILS - PRI; NUT-WASHER (6MM)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 11

0

20

Honda 31219-ZE3-003

SCREW-WASHER (4X14)

$4.49

$

Usually ships in 3-6 days

0
