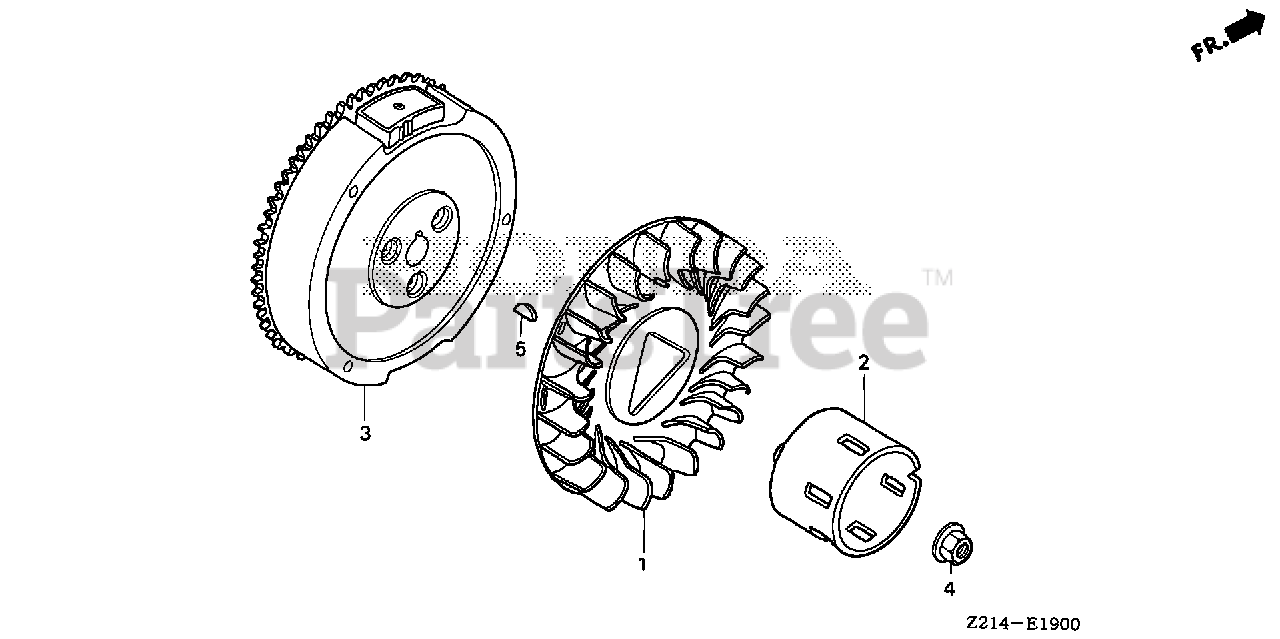

EM3800SX AN (EAMC) - Honda Generator, Made in China (SN: EAMC-1000001 - EAMC-9999999) FLYWHEEL Parts Diagram

Generator, Made in China

FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-Z7E-700

FAN, COOLING

$28.99

$

Usually ships in 3-6 days

0

2

Honda 28451-Z7E-701

SEE PART DETAILS - PRI; PULLEY, STARTER

Note: Use from Engine SN 0025331.

$33.99

$

Usually ships in 3-6 days

0

2

Honda 28451-Z7E-000

PULLEY, STARTER

Note: Use up to Engine SN 0025330.

$30.99

$

Usually ships in 3-6 days

0

3

Honda 31110-Z7E-821

FLYWHEEL (SEL-LAMP)

$162.99

$

Usually ships in 3-6 days

0

4

Honda 90201-ZE3-V00

NUT, SPECIAL (16MM)

$9.49

$

Usually ships in 3-6 days

0

5

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18)

$3.99

$

Usually ships in 3-6 days

0
