EM400 A (EM400) - Honda Generator, Made in Japan (SN: EM400-1000001 - EM400-9999999) EM400 ALTERNATOR + POINTS Parts Diagram

Generator, Made in Japan

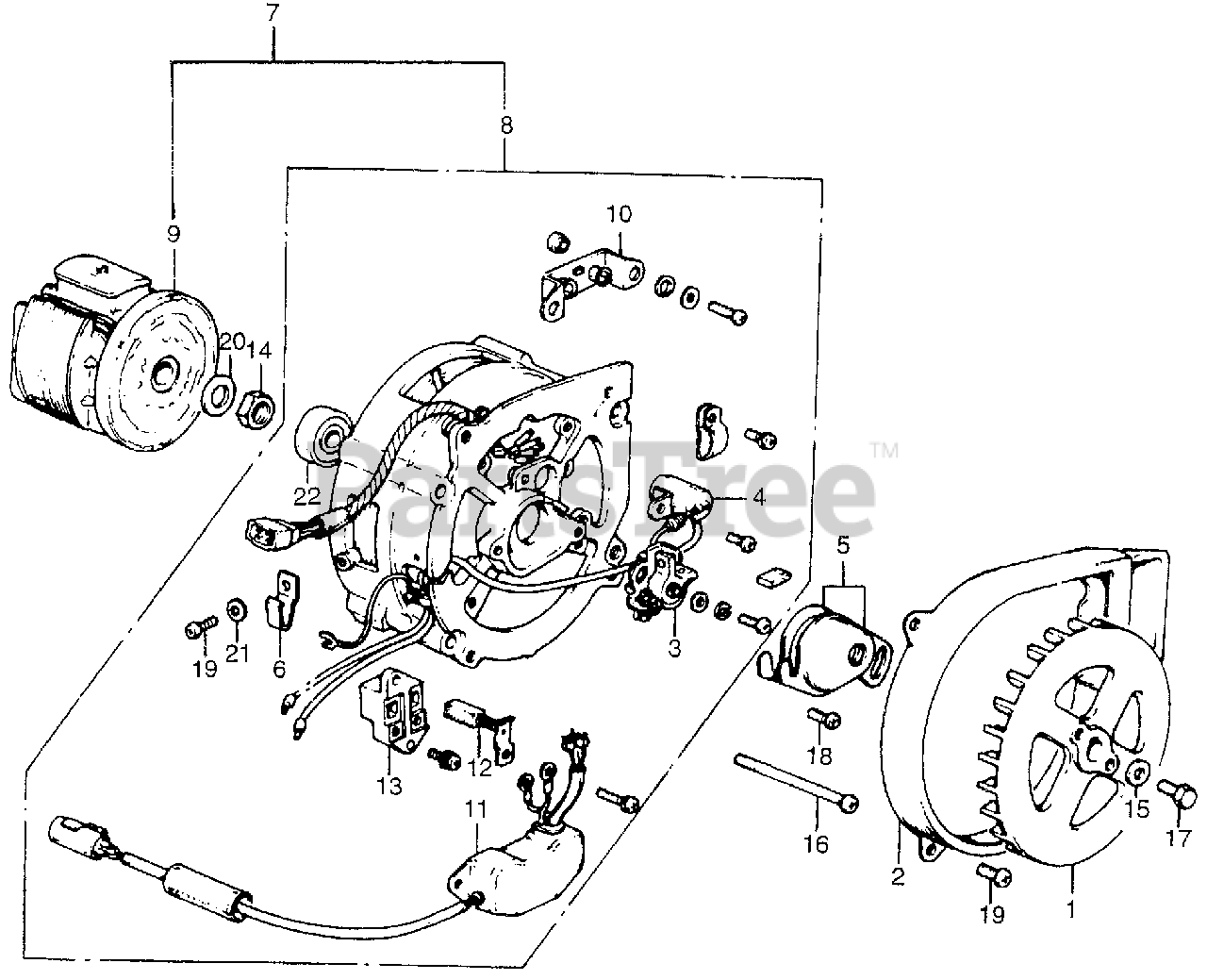

EM400 ALTERNATOR + POINTS Parts Diagram

  • Title

1

Honda 22171-884-004

FAN, ALTERNATOR COOLING (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 22180-870-020

COVER, ALTERNATOR FAN

$

$

Not available

3

Honda 30202-870-003

POINTS ASSY. (NOT AVAILABLE)

$

$

Not available

4

Honda 30203-870-003

CONDENSER ASSY., IGNITION

$

$

Not available

5

Honda 30210-870-000

COVER ASSY., POINTS (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 30564-848-000

CLAMP, WIRE

$

$

Not available

7

Honda 31100-870-023

ALTERNATOR ASSY.

$

$

Not available

8

Honda 31150-870-003

STATOR ASSY., ALTERNATOR

$

$

Not available

9

Honda 31160-870-013

ROTOR

$

$

Not available

10

Honda 31700-870-003

DIODE ASSY., D.C. OUT

$

$

Not available

11

Honda 32350-870-013

REGULATOR, AUTOMATIC VOL TAGE (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 39140-870-003

BRUSH (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 39150-870-013

HOLDER, BRUSH (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 90201-836-000

NUT, SPECIAL (14MM)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90474-704-000

WASHER (6X17)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90604-870-000

BOLT, ALTERNATOR SET (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

19

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 9

0

20

Honda 94102-14000

WASHER, PLAIN (14MM)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 94111-05000

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 96150-60010-10

BEARING, RADIAL BALL (6001UU)

$28.99

$

Usually ships in 3-6 days

0
