EM400 A (EM400) - Honda Generator, Made in Japan (SN: EM400-1000001 - EM400-9999999) GOVERNOR + FAN COVER Parts Diagram

Generator, Made in Japan

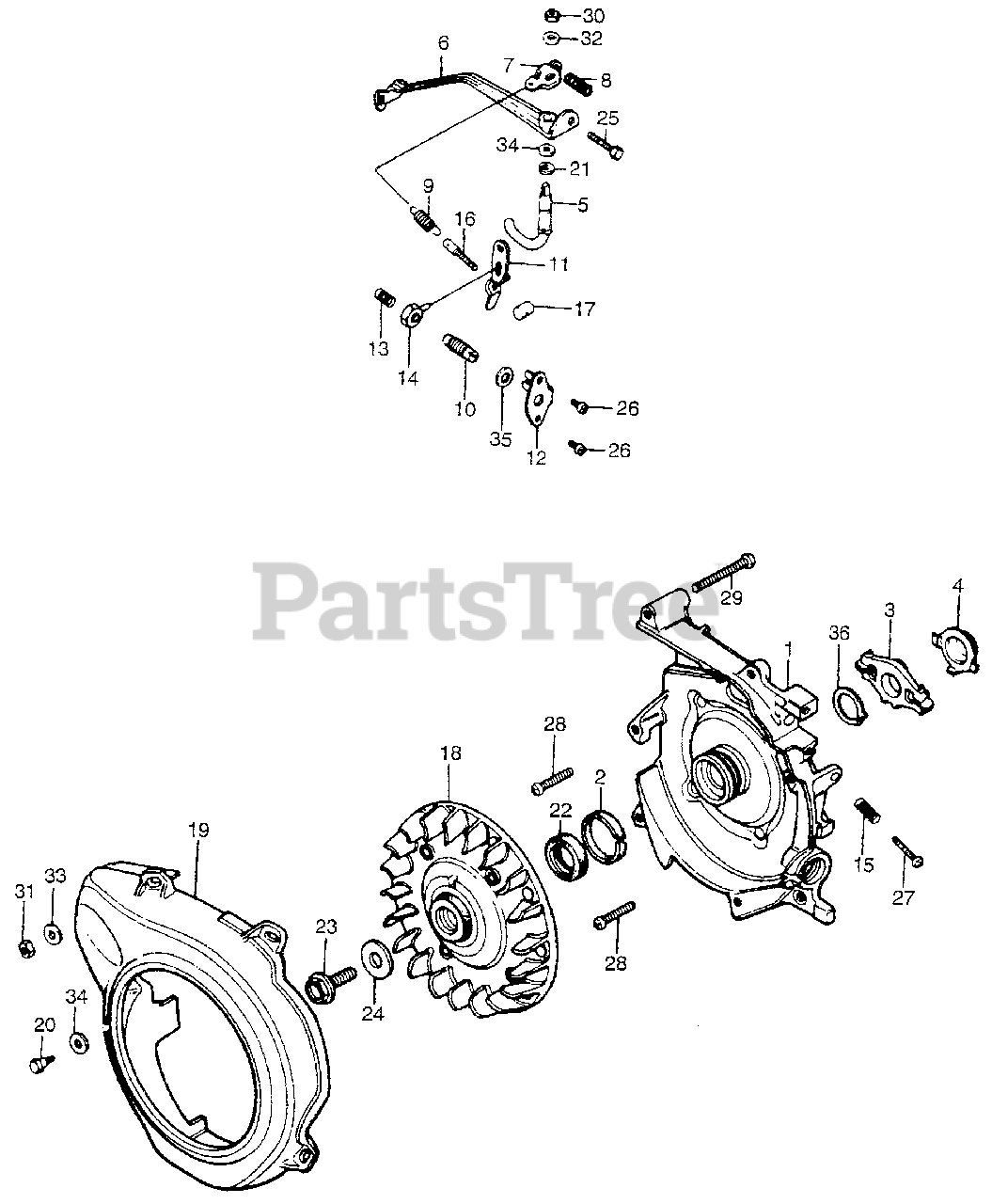

GOVERNOR + FAN COVER Parts Diagram

  • Title

1

Honda 11401-836-010

CASE, STARTER

$

$

Currently unavailable

2

Honda 11511-836-000

FELT (4.5MM)

$

$

Currently unavailable

3

Honda 16510-836-000

HOLDER, GOVERNOR WEIGHT

$

$

Currently unavailable

4

Honda 16521-836-000

SLIDER, GOVERNOR

$

$

Not available

5

Honda 16530-836-000

SHAFT, GOVERNOR ARM

$

$

Not available

6

Honda 16541-836-000

ARM, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16542-836-000

PLATE, GOVERNOR ADJUST

$

$

Not available

8

Honda 16543-836-000

SPRING, GOVERNOR ARM ADJUST

$

$

Currently unavailable

9

Honda 16551-836-000

SPRING, GOVERNOR

$

$

Currently unavailable

10

Honda 16562-836-621

SHAFT, CONTROL ADJUST

$

$

Not available

11

Honda 16565-836-000

ARM, CONTROL

$

$

Not available

12

Honda 16567-836-000

RETAINER, ADJUST SHAFT

$

$

Not available

13

Honda 16568-836-000

SPRING, ADJUST SHAFT

$

$

Not available

14

Honda 16569-836-000

NUT, CONTROL ADJUSTING (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 16571-836-000

SPRING, CONTROL ADJUSTING

$1.99

$

Usually ships in 3-6 days

0

16

Honda 16575-836-000

BOLT, SPRING ADJUST

$

$

Currently unavailable

17

Honda 16576-836-000

NUT, SPRING ADJUST

$

$

Not available

18

Honda 19510-836-010

FAN, COOLING (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 19600-866-000

COVER, FAN (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 90004-836-000

BOLT, FAN COVER (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 90601-836-000

E-RING (4MM)

$

$

Not available

22

Honda 91204-GK8-003

OIL SEAL (15X24X5)

$6.49

$

In Stock, only 1 left!

0

23

Honda 92101-08020-0A

BOLT, HEX. (8X20)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94102-10000

WASHER, PLAIN (10MM)

$0.99

$

In Stock, only 2 left!

0

25

Honda 92301-04018-0A

BOLT, RECESSED (4X18)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 93500-04006-0A

SCREW, PAN (4X6)

$0.99

$

Usually ships in 3-6 days

0

27

Honda 93500-04020-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X20)

$0.99

$

In Stock, Qty 10

0

28

Honda 93500-05022-0A

SCREW, PAN (5X22)

$0.99

$

Usually ships in 3-6 days

0

29

Honda 93500-05035-0A

SCREW, PAN (5X35)

$1.49

$

In Stock, only 4 left!

0

30

Honda 94001-04000-0S

NUT, HEX. (4MM)

$1.49

$

In Stock, only 1 left!

0

31

Honda 94001-05000-0S

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 94101-04200

WASHER, FLAT (4MM)

Note: Use from Engine SN 1000001 to 3110422.

$0.99

$

Usually ships in 3-6 days

0

33

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

34

Honda 94101-05200

WASHER, PLAIN (5MM)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

36

Honda 94510-15000

CIRCLIP, OUTER (15MM)

$1.49

$

In Stock, Qty 9

0
