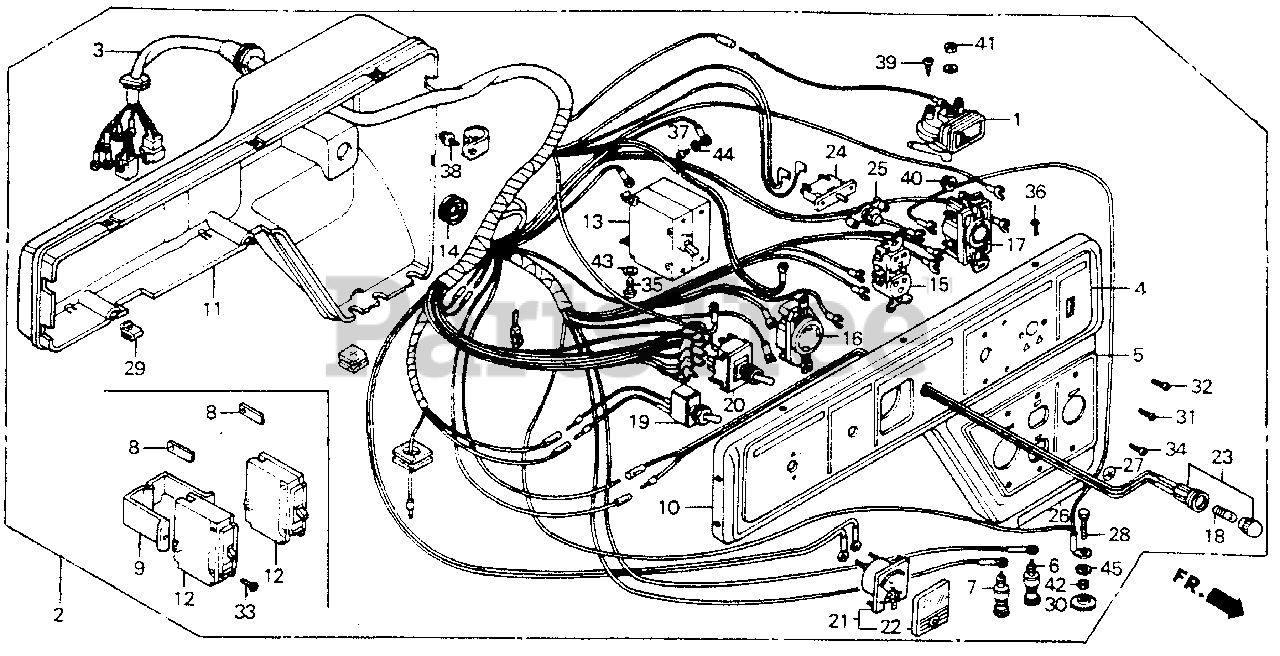

EM4000 A (GE400) - Honda Generator, Made in Japan (SN: GE400-1000001 - GE400-9999999) CONTROL BOX (EM) Parts Diagram

Generator, Made in Japan

CONTROL BOX (EM) Parts Diagram

  • Title

1

Honda 15520-898-003

SWITCH ASSY., UNIT

$125.99

$

Usually ships in 3-6 days

0

2

Honda 31400-ZA1-731H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 1043201.

$

$

Currently unavailable

2

Honda 31400-ZA1-732H

BOX ASSY., CONTROL *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use from Frame SN 1043202.

$

$

Currently unavailable

3

Honda 31404-ZA1-731

WIRE HARNESS ASSY.

Note: Use up to Frame SN 1043201.

$

$

Not available

3

Honda 31404-ZA1-732

WIRE HARNESS ASSY. (NOT AVAILABLE)

Note: Use from Frame SN 1043202.

$

$

Currently unavailable

4

Honda 31406-899-730

MARK, SWITCH PANEL

Note: Use up to Frame SN 1043201.

$

$

Not available

4

Honda 31406-899-731

MARK, SWITCH PANEL

Note: Use from Frame SN 1043202.

$

$

Not available

5

Honda 31408-ZA1-630

MARK, A.C. OUTPUT

Note: Use up to Frame SN 1043201.

$

$

Not available

5

Honda 31408-ZA1-631

MARK, A.C. OUTPUT (NOT AVAILABLE)

Note: Use from Frame SN 1043202.

$

$

Currently unavailable

6

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$53.99

$

Usually ships in 3-6 days

0

7

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$53.99

$

Usually ships in 3-6 days

0

8

Honda 31414-880-000

TERMINAL, BREAKER

Note: Use up to Frame SN 1043201.

$21.99

$

Usually ships in 3-6 days

0

9

Honda 31415-880-000

SUPPORT, BREAKER (NOT AVAILABLE)

Note: Use up to Frame SN 1043201.

$

$

Currently unavailable

10

Honda 31420-ZA1-730H

PANEL, CONTROL *R8* (EM-A) (BRIGHT RED)

Note: Use from Frame SN 1043202.

$

$

Currently unavailable

10

Honda 31420-899-630H

PANEL, CONTROL *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use up to Frame SN 1043201.

$

$

Currently unavailable

11

Honda 31425-899-000

CASE, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 31430-897-000

BREAKER, CIRCUIT (17A)

Note: Use up to Frame SN 1043201.

$

$

Not available

13

Honda 31435-ZA1-630

BREAKER, CIRCUIT (17A) (NOT AVAILABLE)

Note: Use from Frame SN 1043202.

$

$

Currently unavailable

14

Honda 31473-898-000

GROMMET, UNIT SWITCH

$7.99

$

Usually ships in 3-6 days

0

15

Honda 32330-Z07-C30

SEE PART DETAILS - PRI; RECEPTACLE ASSY. (125V-20A)

$67.99

$

In Stock, only 1 left!

0

15

Honda 32330-899-630

SEE PART DETAILS - SUP; RECEPTACLE (20A/125V)
(Superseded to 32330-Z07-C30)

$67.99

$

In Stock, only 1 left!

0

16

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$53.99

$

In Stock, only 2 left!

0

17

Honda 32332-899-630

RECEPTACLE (20A/125-250V)

$

$

Not available

18

Honda 34909-880-000

BULB (24V2W)

$9.99

$

Usually ships in 3-6 days

0

19

Honda 36100-877-611

SWITCH ASSY., ENGINE (NOT AVAILABLE)

$

$

Not available

20

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$253.99

$

Usually ships in 3-6 days

0

21

Honda 37450-898-650

VOLTMETER ASSY.

$327.99

$

Usually ships in 3-6 days

0

22

Honda 37451-898-000

LENS, METER

$

$

Not available

23

Honda 37560-880-000

SEE PART DETAILS - SUP; SOCKET ASSY., PILOT LAMP
(Superseded to 37560-ZA0-003)

$41.99

$

Usually ships in 3-6 days

0

24

Honda 38240-898-000

PROTECTOR, CIRCUIT (DC)

$42.99

$

In Stock, only 2 left!

0

25

Honda 38250-898-000

LENS ASSY., PROTECTOR

$28.99

$

Usually ships in 3-6 days

0

26

Honda 87524-898-630

MARK, D.C. OUTPUT (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.99

$

In Stock, only 4 left!

0

28

Honda 90011-899-000

BOLT, HEX. (6X18)

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90320-692-000

NUT, SPRING (5MM)

$10.99

$

Usually ships in 3-6 days

0

30

Honda 90381-812-710

NUT, SPECIAL (6MM)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 93500-03006-0G

SCREW, PAN (3X6)

Note: Use from Frame SN 1043202.

$0.99

$

In Stock, only 3 left!

0

32

Honda 93500-03012-0G

SCREW, PAN (3X12)

$

$

Not available

33

Honda 93500-04006-0G

SCREW, PAN (4X6)

Note: Use up to Frame SN 1043201.

$1.49

$

Usually ships in 3-6 days

0

34

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 1 left!

0

35

Honda 93500-04010-3J

SCREW, PAN (4X10)

Note: Use from Frame SN 1043202.

$2.49

$

Usually ships in 3-6 days

0

36

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

37

Honda 93500-05012-3J

SCREW, PAN (5X12)

Note: Use up to Frame SN 1043201.

$1.49

$

Usually ships in 3-6 days

0

38

Honda 93893-05010-00

SCREW-WASHER (5X10)

$

$

Not available

39

Honda 93901-15120

SCREW, TAPPING (5X10)

$0.99

$

Usually ships in 3-6 days

0

40

Honda 94001-04000-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

41

Honda 94001-05390-0S

NUT, HEX. (5MM)

$1.99

$

Usually ships in 3-6 days

0

42

Honda 94001-06390-0S

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

43

Honda 94111-04800

WASHER, SPRING (4MM)

Note: Use from Frame SN 1043202.

$1.49

$

Usually ships in 3-6 days

0

44

Honda 94111-05800

WASHER, SPRING (5MM)

Note: Use up to Frame SN 1043201.

$1.99

$

Usually ships in 3-6 days

0

45

Honda 94111-06800

WASHER, SPRING (6MM)

$1.99

$

Usually ships in 3-6 days

0
