EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) ALTERNATOR + FLYWHEEL + COUPLING CASE Parts Diagram

Generator, Made in Japan

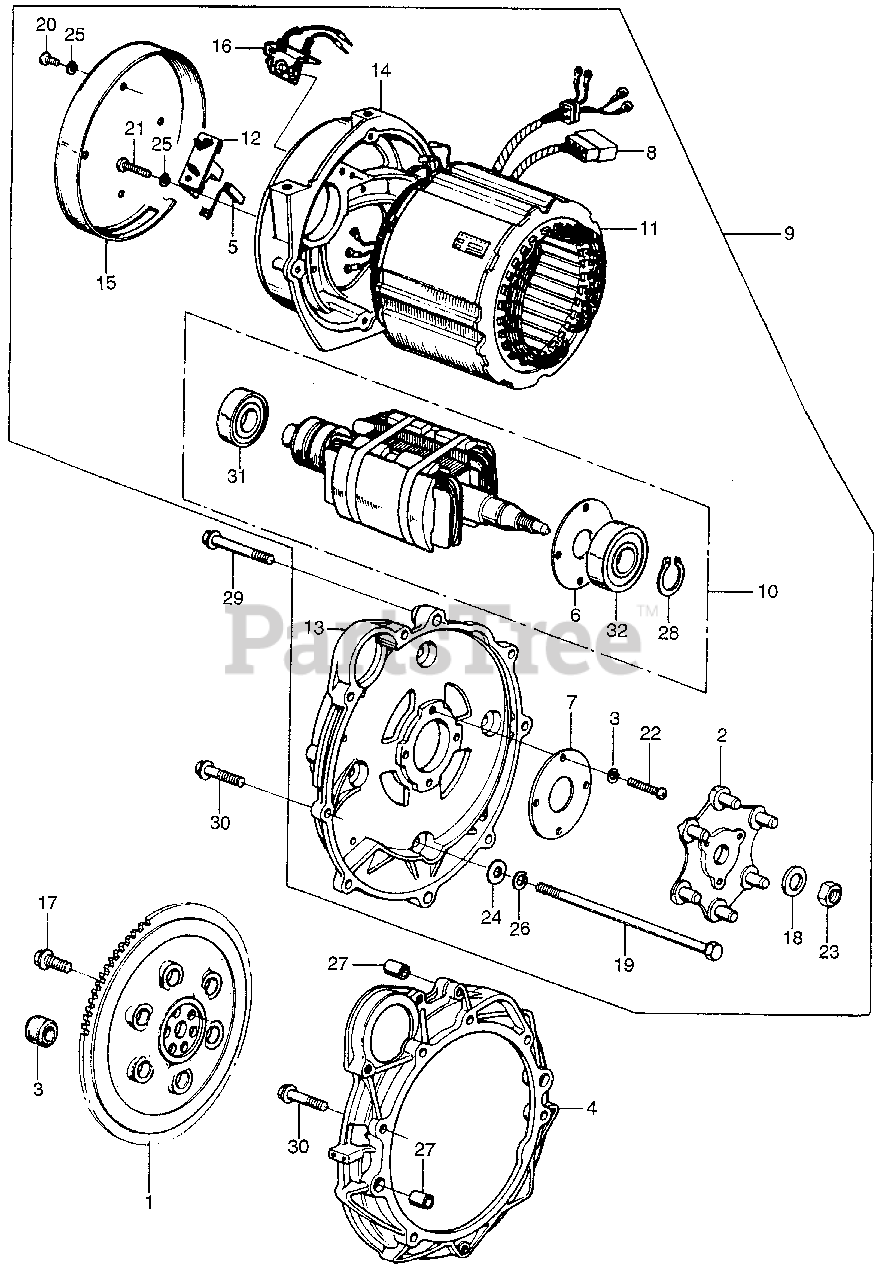

ALTERNATOR + FLYWHEEL + COUPLING CASE Parts Diagram

  • Title

1

Honda 22100-862-000

FLYWHEEL

$

$

Not available

2

Honda 22250-862-000

PIN, FLANGE

$

$

Not available

3

Honda 22251-862-000

RUBBER, COUPLING (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 22260-862-000

CASE, COUPLING

$

$

Not available

5

Honda 31107-815-168

SEE PART DETAILS - PRI; BRUSH, CARBON (NOT AVAILABLE)

$

$

Not available

6

Honda 31117-819-168

COVER B, BEARING

$

$

Not available

7

Honda 31119-862-158

COVER A, BEARING

$

$

Not available

8

Honda 32136-862-158

CONNECTOR, POLE MALE (8) (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 39100-862-674CT

ALTERNATOR ASSY. *NH83L* (OFF BLACK)

$

$

Not available

10

Honda 39110-862-158

ROTOR

$

$

Not available

11

Honda 39120-862-670

STATOR (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 39155-862-158

STAY, BRUSH (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 39210-862-158

HOUSING, FR. ALTERNATOR

$

$

Not available

14

Honda 39220-862-168

HOUSING, RR. ALTERNATOR

$

$

Not available

15

Honda 39241-862-158CT

COVER, RR. *NH83L* (OFF BLACK)

$

$

Currently unavailable

16

Honda 39351-862-158

DIODE ASSY., D.C.

$

$

Currently unavailable

17

Honda 90011-689-000

BOLT, HEX. (10MM)

$11.99

$

Usually ships in 3-6 days

0

18

Honda 90401-862-000

WASHER (40MM)

$

$

Not available

19

Honda 92000-08200-0H

BOLT, HEX. (8X200)

$

$

Currently unavailable

20

Honda 93500-05016-0H

SEE PART DETAILS - PRI; SCREW, PAN (5X16)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 93500-05025-1H

SCREW, PAN (5X25) (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 93500-05028-0H

SEE PART DETAILS - PRI; SCREW, PAN (5X28)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94002-18080-0S

NUT, HEX. (18MM) (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 4 left!

0

25

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94111-08800

SEE PART DETAILS - PRI; WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94301-14200

SEE PART DETAILS - PRI; PIN A, DOWEL (14X20)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 94510-30000

CIRCLIP (OUTER) (30MM)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 95701-08055-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X55)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 95701-08032-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 96150-62050-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205UU)

$41.99

$

Usually ships in 3-6 days

0

32

Honda 96150-63060

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6306UU)

$

$

Currently unavailable
