EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) BALANCER SPROCKET + BALANCER CHAIN Parts Diagram

Generator, Made in Japan

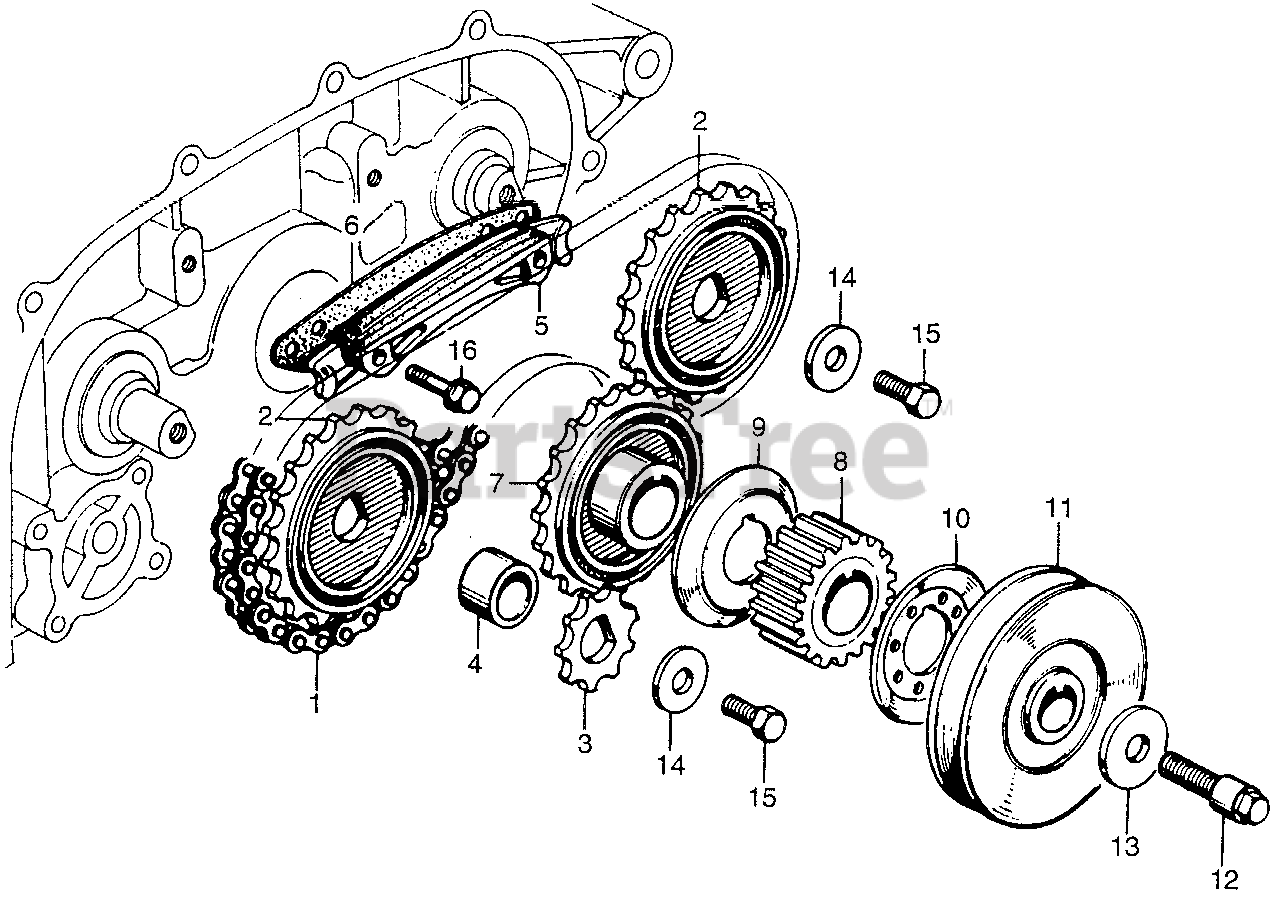

BALANCER SPROCKET + BALANCER CHAIN Parts Diagram

  • Title

1

Honda 13420-611-003

CHAIN, BALANCER

$

$

Not available

2

Honda 13422-611-000

SPROCKET, BALANCER DRIVEN

$

$

Not available

3

Honda 13425-611-000

SPROCKET, OIL PUMP DRIVE

$

$

Not available

4

Honda 13435-611-000

COLLAR, FR. BALANCER SHAFT

$

$

Not available

5

Honda 13440-611-010

SLIPPER, BALANCER CHAIN

$

$

Not available

6

Honda 13443-611-000

GASKET, BALANCER CHAIN SLIPPER

$

$

Currently unavailable

7

Honda 13610-611-040

SPROCKET, BALANCER DRIVE

$

$

Not available

8

Honda 13621-611-313

PULLEY, TIMING BELT DRIVE

$

$

Currently unavailable

9

Honda 13622-611-000

PLATE A, TIMING BELT GUIDE

$

$

Currently unavailable

10

Honda 13623-611-000

PLATE B, TIMING BELT GUIDE

$

$

Currently unavailable

11

Honda 13811-611-040

PULLEY, CRANKSHAFT

$

$

Not available

12

Honda 90015-611-000

BOLT, SPECIAL (10X25)

$

$

Not available

13

Honda 90414-611-000

WASHER, SPECIAL (34X10.5X4.0)

$

$

Currently unavailable

14

Honda 90436-611-000

WASHER, SPECIAL (22X8.5X2)

$

$

Currently unavailable

15

Honda 92101-08012-0H

SEE PART DETAILS - PRI; BOLT, HEX. (8X12)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95700-06025-08

BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0
