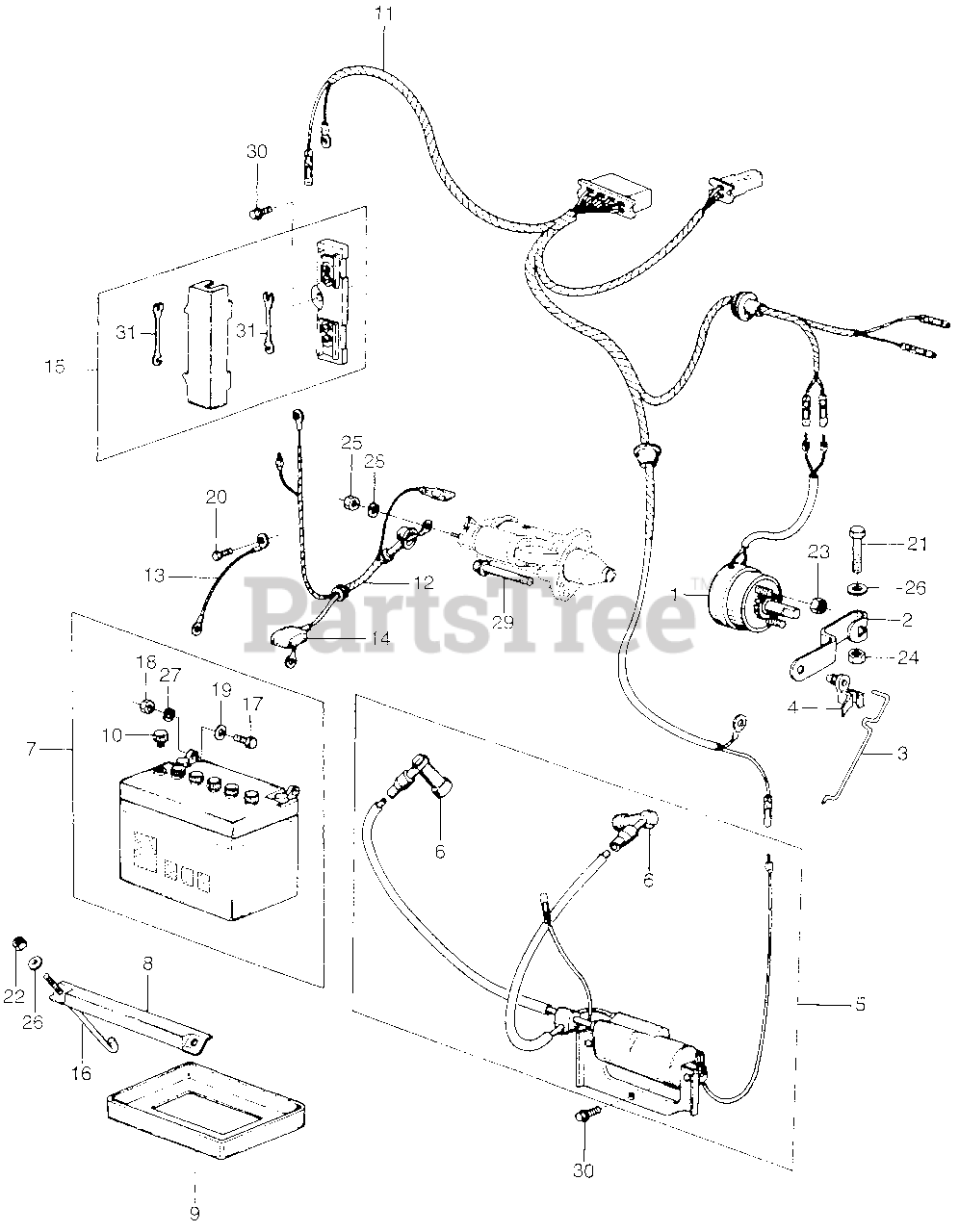

  • Title

1

Honda 16150-862-023

SOLENOID, THROTTLE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16152-862-000

ARM, THROTTLE STOP

$

$

Not available

3

Honda 16153-862-000

ROD, THROTTLE STOP

$

$

Not available

4

Honda 16155-862-003

HOLDER, ROD (2MM) (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 30500-862-405

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

Note: Use from Frame SN 1000016 to 1000533.

$

$

Currently unavailable

5

Honda 30500-862-405

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

Note: Use from Frame SN 1000534.

$

$

Currently unavailable

6

Honda 30700-155-163

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

Note: Use from Frame SN 1000016 to 1000533.

$

$

Not available

6

Honda 30700-890-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

Note: Use from Frame SN 1000534.

$

$

Not available

7

Honda 31500-750-013

SEE PART DETAILS - SUP; BATTERY ASSY. (32A19RT-S) (YUASA)
(Superseded to 31500-750-023)

$145.99

$

Usually ships in 3-6 days

0

7

Honda 31500-751-013

SEE PART DETAILS - SUP; BATTERY (26A19RT-S) (YUASA)
(Superseded to 31500-750-023)

$145.99

$

Usually ships in 3-6 days

0

8

Honda 31512-611-010

SEE PART DETAILS - SUP; PLATE, BATTERY SETTING

$

$

Currently unavailable

8

Honda 31512-611-811

SEE PART DETAILS - PRI; PLATE, BATTERY SETTING (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 31521-567-000

SEE PART DETAILS - SUP; BOX, BATTERY

$

$

Currently unavailable

10

Honda 31542-538-007

PLUG, VENT (YUASA)

$10.99

$

Usually ships in 3-6 days

0

11

Honda 32100-862-014

SEE PART DETAILS - PRI; WIRE HARNESS ASSY.

$

$

Not available

12

Honda 32310-862-004

CABLE, STARTER

$

$

Currently unavailable

13

Honda 32350-862-024

CABLE, GROUND (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 32411-538-000

COVER, BATTERY TERMINAL

$

$

Currently unavailable

15

Honda 38250-862-008

BOX ASSY., MAIN FUSE

$

$

Not available

16

Honda 65891-862-000

BOLT, BATTERY SETTING (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 90151-538-017

BOLT, BATTERY TERMINAL SETTING

$

$

Currently unavailable

18

Honda 90351-568-000

NUT (6MM)

$

$

Currently unavailable

19

Honda 90556-538-007

WASHER, BATTERY TERMINAL SETTING (6MM)

$

$

Currently unavailable

20

Honda 92000-06010-39

BOLT, HEX. (6X10)

$

$

Currently unavailable

21

Honda 92101-05020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X20)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 94002-04000-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94002-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 94101-05000

SEE PART DETAILS - PRI; WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

27

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94111-08000

SEE PART DETAILS - PRI; WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 95701-08060-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X60)

$2.99

$

In Stock, only 1 left!

0

30

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0

31

Honda 98200-64500

FUSE G (45A)

$2.49

$

Usually ships in 3-6 days

0
