EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) CAMSHAFT + ROCKER ARM SHAFT + FAN Parts Diagram

Generator, Made in Japan

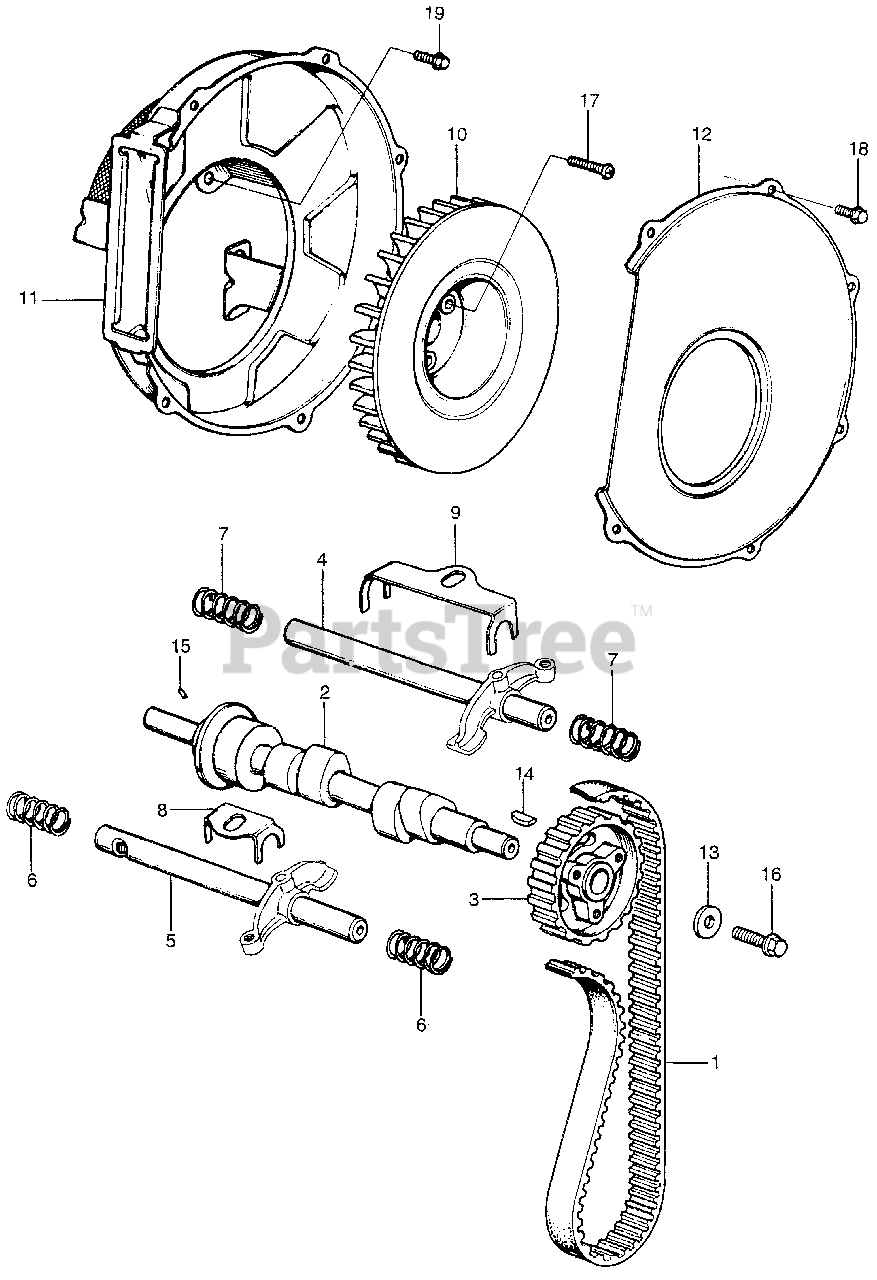

CAMSHAFT + ROCKER ARM SHAFT + FAN Parts Diagram

  • Title

1

Honda 01140-862-670P

BELT KIT (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 14111-611-010

CAMSHAFT

$

$

Not available

3

Honda 14321-862-000

PULLEY, CAM

$

$

Not available

4

Honda 14631-611-000

SHAFT, ROCKER ARM

$

$

Not available

5

Honda 14632-611-000

SHAFT, EX. ROCKER ARM

$

$

Not available

6

Honda 14642-611-000

SPRING, EX. ROCKER ARM

$

$

Currently unavailable

7

Honda 14643-611-000

SPRING, IN. ROCKER ARM

$

$

Not available

8

Honda 14652-611-000

WASHER, EX. THRUST

$

$

Not available

9

Honda 14661-611-000

WASHER, IN. THRUST

$

$

Not available

10

Honda 19511-862-010

FAN, COOLING

$

$

Not available

11

Honda 19610-862-050

COVER, FAN

$

$

Not available

12

Honda 19621-862-000

COVER, SIDE

$

$

Not available

13

Honda 90435-611-000

WASHER, SPECIAL (28X8.5X4.0)

$10.99

$

Usually ships in 3-6 days

0

14

Honda 90705-611-000

KEY, WOODRUFF (30x16.8MM) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 90710-551-000

PIN, KNOCK (3X6.5)

$

$

Currently unavailable

16

Honda 92101-08020-0H

SEE PART DETAILS - PRI; BOLT, HEX. (8X20)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 93500-06028-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X28)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 95700-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

18

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

19

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 2 left!

0
