EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) MUFFLER + STAY + MUFFLER SEAL Parts Diagram

Generator, Made in Japan

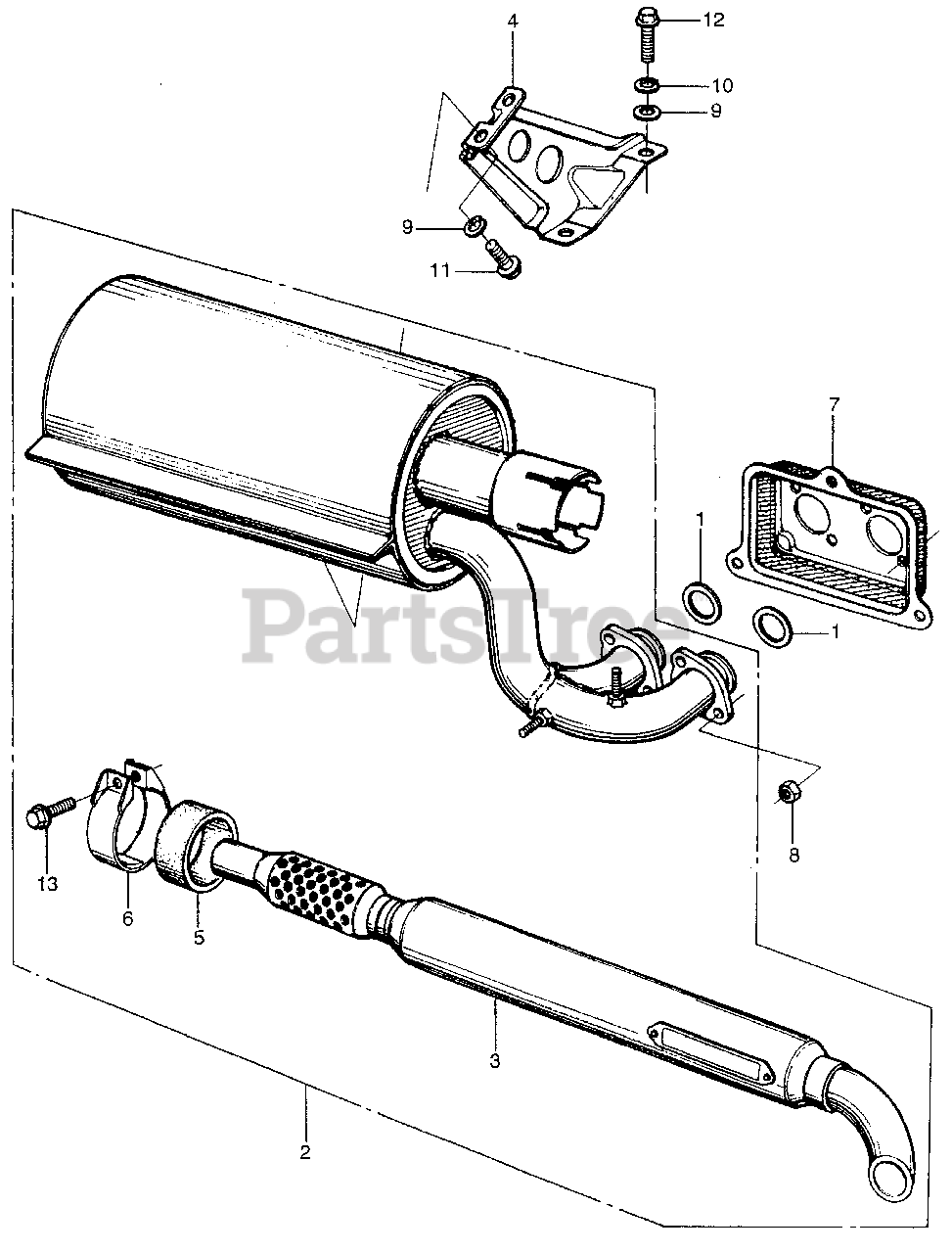

MUFFLER + STAY + MUFFLER SEAL Parts Diagram

  • Title

1

Honda 18212-634-S00

SEE PART DETAILS - SUP; GASKET, EX. PIPE

$

$

Currently unavailable

1

Honda 18212-634-010

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$

$

Not available

2

Honda 18310-862-023

SEE PART DETAILS - PRI; MUFFLER, EX.

$

$

Not available

3

Honda 18320-862-671

PIPE, TAIL

$

$

Not available

4

Honda 18321-862-010

STAY, MUFFLER

$

$

Currently unavailable

5

Honda 18322-862-000

GASKET, MUFFLER

$

$

Not available

6

Honda 18323-862-003

BAND

$

$

Not available

7

Honda 63360-862-000

SEAL, EX. PIPE (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

9

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 16

0

10

Honda 94111-08000

SEE PART DETAILS - PRI; WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.99

$

In Stock, Qty 20+

0

12

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.99

$

In Stock, Qty 13

0

13

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 15

0
