EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) POINTS + CASE + ADVANCER Parts Diagram

Generator, Made in Japan

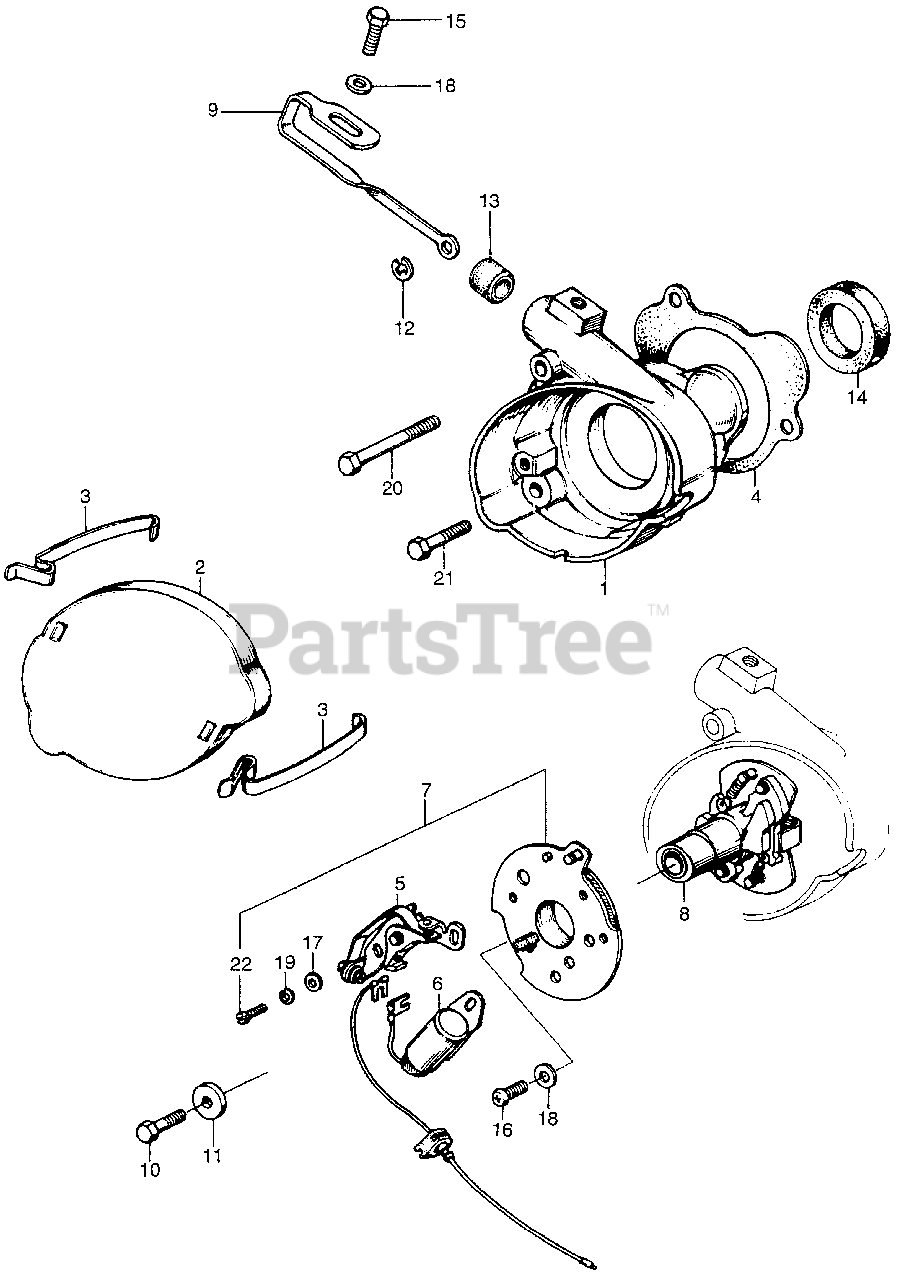

POINTS + CASE + ADVANCER Parts Diagram

  • Title

1

Honda 30050-611-010

CASE, BREAKER

$

$

Not available

2

Honda 30070-611-000

CAP, BREAKER

$

$

Not available

3

Honda 30072-611-010

CLAMP, BREAKER CAP (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 30075-611-020

SEE PART DETAILS - PRI; GASKET, BREAKER CASE

$

$

Not available

5

Honda 30103-567-024

POINTS

$

$

Not available

6

Honda 30104-551-004

CONDENSER

$

$

Currently unavailable

7

Honda 30200-862-004

POINTS ASSY.

$

$

Currently unavailable

8

Honda 30220-862-004

ADVANCER, SPARK (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 30262-862-000

STOPPER, BASE POINTS

$

$

Not available

10

Honda 90028-611-000

BOLT, SPECIAL (6X18)

$

$

Not available

11

Honda 90436-551-000

WASHER, FLAT (6MM)

$

$

Currently unavailable

12

Honda 90443-551-305

CLIP, ADVANCER ROD RETAINING

$

$

Currently unavailable

13

Honda 91203-862-003

SEAL, COTTER (13.5MM) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 91206-HB3-003

SEE PART DETAILS - PRI; OIL SEAL (22X36X6)

$9.99

$

Usually ships in 3-6 days

0

15

Honda 92101-06012-0H

SEE PART DETAILS - PRI; BOLT, HEX. (6X20)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 93500-06012-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X12)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94101-04800

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 95701-06050-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X50)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 95701-06028-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 99500-04005-0A

SCREW, HOLLOW PAN (4X5)
(Superseded to 93500-04006-0A)

$0.99

$

Usually ships in 3-6 days

0
