EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) SEPARATOR + CARBURETOR SEPARATOR Parts Diagram

Generator, Made in Japan

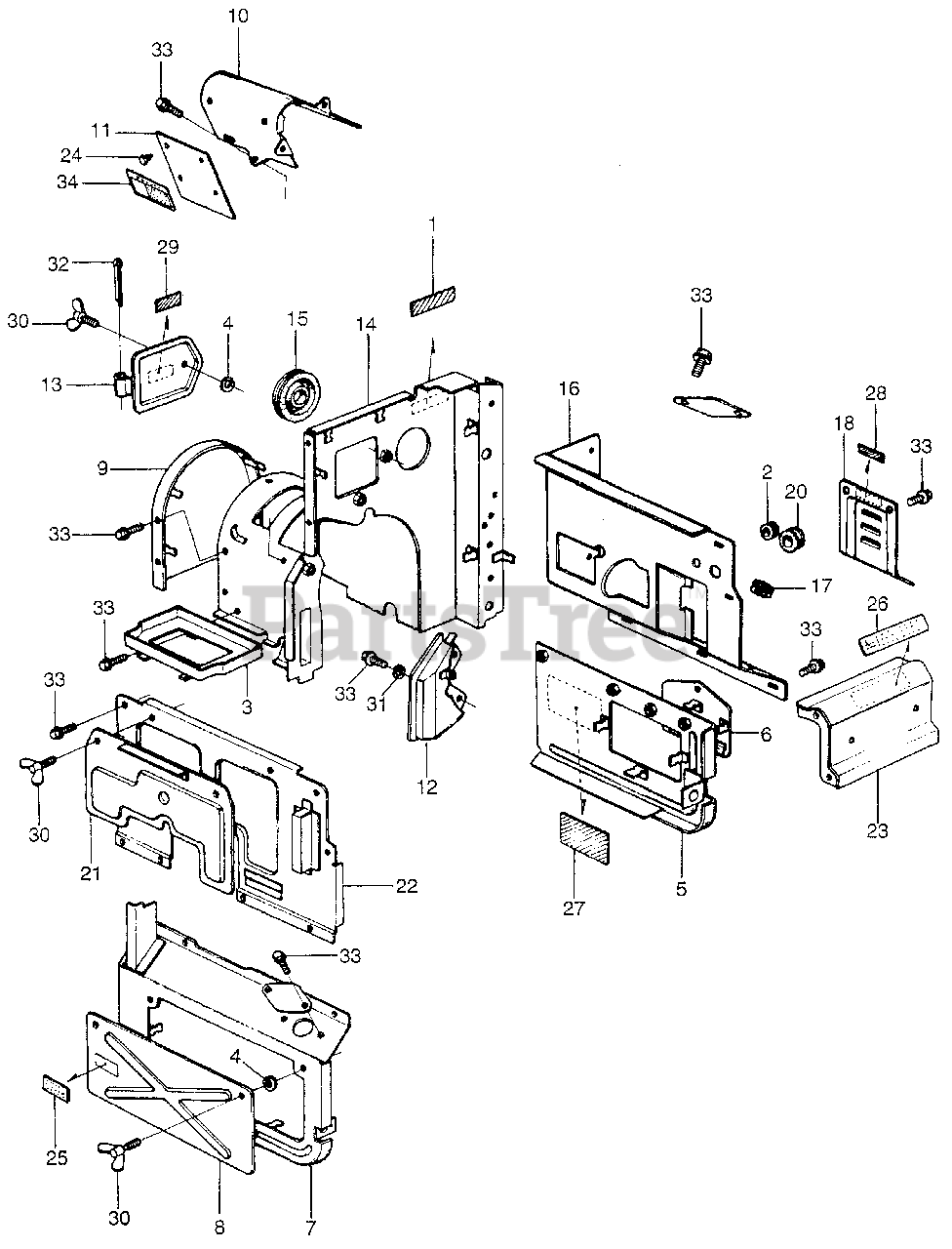

SEPARATOR + CARBURETOR SEPARATOR Parts Diagram

  • Title

NI

Honda 87563-862-670

MARK, HOT AIR VALVE

Note: Use from Frame SN 1000415.

$

$

Not available

1

Honda 19043-862-670

MARK, RADIATOR CAUTION

$

$

Not available

2

Honda 31403-323-000

SEE PART DETAILS - PRI; RUBBER, REGULATOR CUSHION

$4.49

$

Usually ships in 3-6 days

0

3

Honda 31550-862-010

CASE, BATTERY

$

$

Not available

4

Honda 50287-703-000

STOPPER, TOOL BOX LATCH

$

$

Not available

5

Honda 63161-862-020

COVER, R. SIDE

$

$

Not available

6

Honda 63163-862-000

COVER, R. SIDE SUB

$

$

Not available

7

Honda 63181-862-030

COVER, L. SIDE

$

$

Not available

8

Honda 63185-862-000

COVER, L. SIDE SUB

$

$

Not available

9

Honda 63251-862-000

COVER, ALTERNATOR END

$

$

Not available

10

Honda 63261-862-010

SEE PART DETAILS - PRI; COVER, STARTER MOTOR (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 63264-862-000

RUBBER, STARTER MOTOR COVER

Note: Use from Frame SN 1002811.

$

$

Not available

12

Honda 63266-862-000

COVER, ALTERNATOR DUCT

$

$

Not available

13

Honda 63276-862-000

COVER, POINT

$

$

Not available

14

Honda 63310-862-020

SEPARATOR

$

$

Not available

15

Honda 63323-862-000

GROMMET, WATER HOSE

$

$

Currently unavailable

16

Honda 63330-862-030

SEPARATOR, CARBURETOR

$

$

Not available

17

Honda 63339-862-000

GROMMET, CARBURETOR SEPARATOR

$

$

Not available

18

Honda 63341-862-010

COVER, GOVERNOR

$

$

Not available

20

Honda 63345-862-000

GROMMET, BOOST TUBE

$

$

Not available

21

Honda 63351-862-000

COVER, PLUG

$

$

Currently unavailable

22

Honda 63353-862-000

SUPPORT, PLUG COVER

$

$

Not available

23

Honda 63371-862-000

PLATE, JOINT

$

$

Not available

24

Honda 67245-862-000

PIN, RUBBER SET

Note: Use from Frame SN 1002811.

$

$

Not available

25

Honda 87549-862-670

MARK, TIMING

$

$

Not available

26

Honda 87551-862-670

MARK, OIL LEVEL

$

$

Not available

27

Honda 87552-862-670

MARK, BELT ADJUSTMENT

$

$

Not available

28

Honda 87555-862-670

MARK, GOVERNOR OIL

$

$

Not available

29

Honda 87556-862-670

MARK, CONTACT

$

$

Not available

30

Honda 91501-862-000

BOLT, WING

$

$

Not available

31

Honda 94111-06000

SEE PART DETAILS - PRI; WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 7

0

33

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use from Frame SN 1000016 to 1000414.

$1.99

$

In Stock, Qty 20+

0

33

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use from Frame SN 1000415.

$1.99

$

In Stock, Qty 20+

0
