EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) STARTER MOTOR Parts Diagram

Generator, Made in Japan

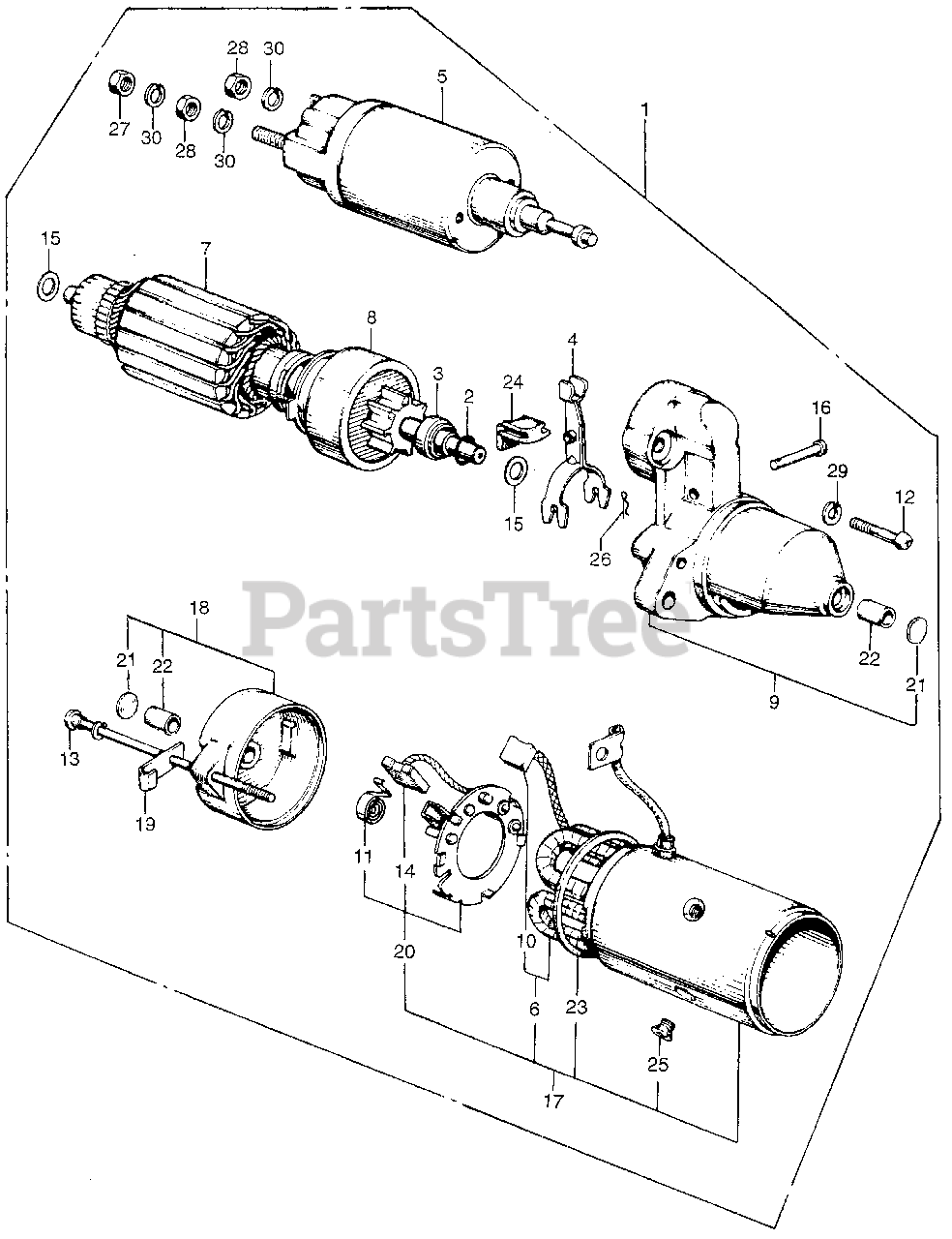

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31200-612-000

MOTOR ASSY., STARTER (NOT AVAILABLE)

$

$

Not available

2

Honda 31201-590-004

RING, SNAP (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 31202-590-004

COLLAR, CLUTCH STOP

$

$

Not available

4

Honda 31203-611-004

LEVER, PINION (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 31204-611-004

SWITCH, MAGNET

$

$

Not available

6

Honda 31205-611-004

COIL, FIELD (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 31206-611-004

ARMATURE (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 31207-611-004

CLUTCH, OVERRUNNING

$

$

Not available

9

Honda 31208-611-004

HOUSING, DRIVE SIDE

$

$

Not available

10

Honda 31211-611-004

SEE PART DETAILS - PRI; BRUSH (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 31212-611-004

SPRING, BRUSH

$

$

Currently unavailable

12

Honda 31213-611-004

SCREW, MAGNETIC SWITCH SETTING

$

$

Not available

13

Honda 31214-611-004

BOLT, THROUGH

$

$

Not available

14

Honda 31215-611-004

SEE PART DETAILS - SUP; BRUSH

$

$

Currently unavailable

15

Honda 31216-611-004

WASHER

$

$

Not available

16

Honda 31217-611-004

BOLT, DRIVE LEVER SET

$

$

Not available

17

Honda 31218-611-004

YOKE

$

$

Currently unavailable

18

Honda 31219-611-004

SEE PART DETAILS - PRI; COVER, RR.

$

$

Not available

19

Honda 31229-611-004

TERMINAL

$

$

Not available

20

Honda 31231-611-004

PLATE, BRUSH HOLDER (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 31232-611-004

COVER, BEARING

$

$

Not available

22

Honda 31233-611-004

BUSH, BEARING

$

$

Not available

23

Honda 31234-611-004

GASKET, RUBBER PLATE

$

$

Not available

24

Honda 31236-611-004

PART, RUBBER

$

$

Not available

25

Honda 31237-611-004

SCREW, POLE CORE

$

$

Not available

26

Honda 31238-611-004

PIN, SNAP

$

$

Not available

27

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 20+

0

28

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 94111-08800

SEE PART DETAILS - PRI; WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0
