EM5000 A (EM5000) - Honda Generator, Made in Japan (SN: EM5000-1000016 - EM5000-999999) TOP COVER + FRONT COVER + REAR COVER Parts Diagram

Generator, Made in Japan

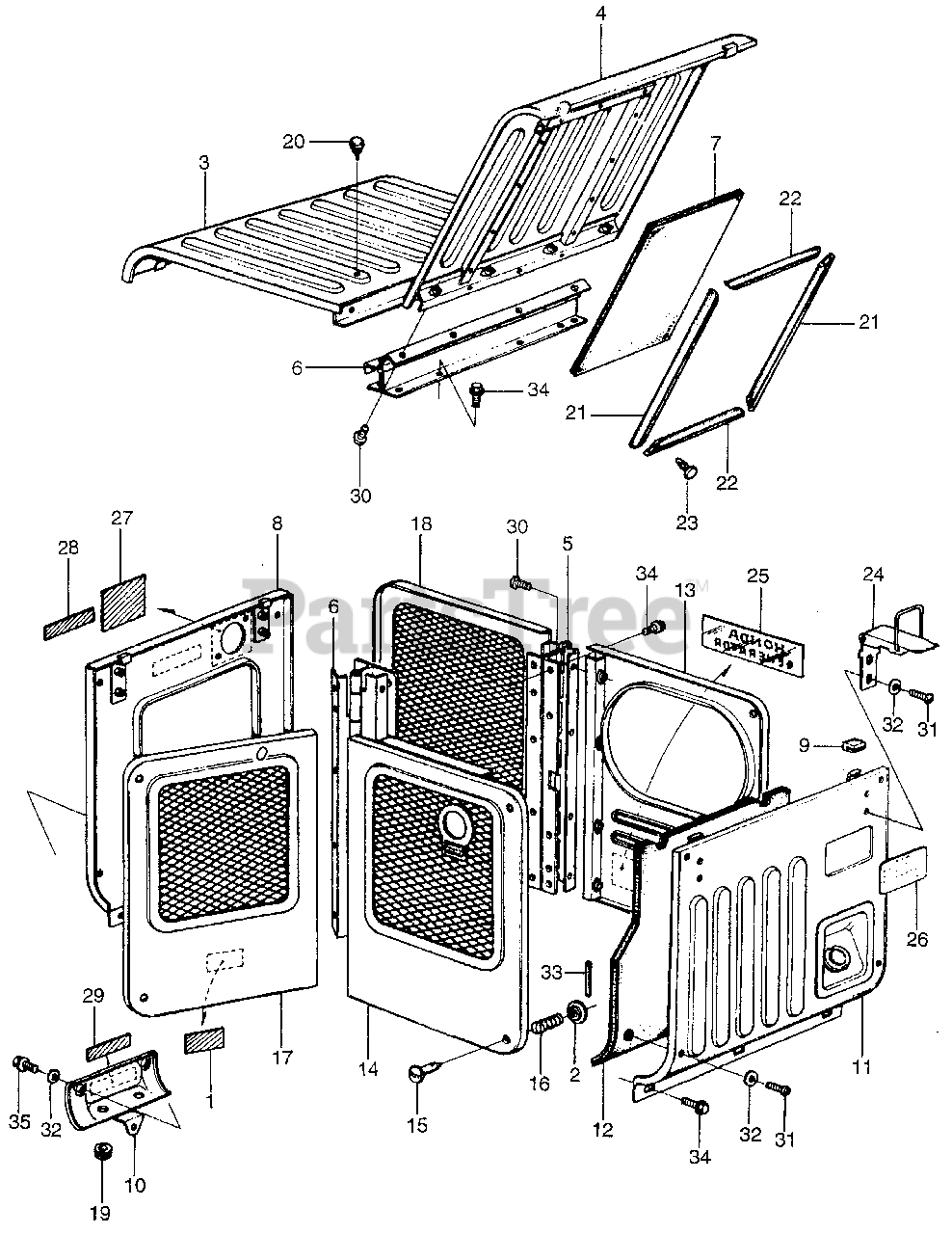

TOP COVER + FRONT COVER + REAR COVER Parts Diagram

  • Title

1

Honda 31511-632-761

LABEL, BATTERY CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 50129-862-000

RETAINER, LOCK SPRING

$5.49

$

Usually ships in 3-6 days

0

3

Honda 63110-862-020CB

COVER, FR. TOP *NH19M* (DARK GRAY METALLIC)

Note: Use from Frame SN 1001000.

$

$

Not available

3

Honda 63110-862-670CB

COVER, FR. TOP *NH19M* (DARK GRAY METALLIC)

Note: Use from Frame SN 1000016 to 1000999.

$

$

Not available

4

Honda 63120-862-010CB

COVER, RR. TOP *NH19M* (DARK GRAY METALLIC)

$

$

Not available

5

Honda 63123-862-000CB

HINGE, R. SIDE COVER *NH19M* (DARK GRAY METALLIC)

$

$

Not available

6

Honda 63124-862-000CB

HINGE, COVER TOP *NH19M* (DARK GRAY METALLIC)

$

$

Not available

7

Honda 63128-862-000

SHEET, COVER TOP

$

$

Not available

8

Honda 63130-862-030CB

COVER, FR. *NH19M* (DARK GRAY METALLIC)

Note: Use from Frame SN 1001000.

$

$

Not available

8

Honda 63130-862-670CB

COVER, FR. *NH19M* (DARK GRAY METALLIC)

Note: Use from Frame SN 1000016 to 1000999.

$

$

Not available

9

Honda 63132-862-000

SPACER, COVER

$

$

Not available

10

Honda 63135-862-000CB

COVER, A.C. TERMINAL *NH19M* (DARK GRAY METALLIC)

$

$

Not available

11

Honda 63140-862-050CB

COVER, RR. *NH19M* (DARK GRAY METALLIC)

$

$

Not available

12

Honda 63142-862-010

SHEET, RR. COVER

$

$

Not available

13

Honda 63150-862-000CB

COVER, CARBURETOR *NH19M* (DARK GRAY METALLIC)

$

$

Not available

14

Honda 63170-862-670CB

COVER, EX. PIPE *NH19M* (DARK GRAY METALLIC) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 63172-862-010

SEE PART DETAILS - PRI; PIN, COVER LOCK

$10.99

$

Usually ships in 3-6 days

0

16

Honda 63173-862-000

SPRING, COVER LOCK

$5.99

$

Usually ships in 3-6 days

0

17

Honda 63175-862-000CB

COVER, MUFFLER *NH19M* (DARK GRAY METALLIC)

$

$

Not available

18

Honda 63190-862-000CB

COVER, RADIATOR *NH19M* (DARK GRAY METALLIC)

$

$

Not available

19

Honda 63345-862-000

GROMMET, BOOST TUBE

$

$

Not available

20

Honda 63725-836-000

RUBBER, SETTING STOPPER (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 67242-862-000

RUBBER A, SEAL TOP

$

$

Not available

22

Honda 67243-862-000

RUBBER B, SEAL TOP

$

$

Not available

23

Honda 67245-862-000

PIN, RUBBER SET

$

$

Not available

24

Honda 73450-862-000

LOCK ASSY., COVER TOP (NOT AVAILABLE)

Note: Use from Frame SN 1000016 to 1000999.

$

$

Currently unavailable

25

Honda 87511-862-003

EMBLEM (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 87523-862-671

SEE PART DETAILS - PRI; MARK B, CAUTION

$

$

Not available

27

Honda 87524-862-670

MARK C, CAUTION

$

$

Not available

28

Honda 87561-862-000

MARK, CO. CAUTION

$

$

Not available

29

Honda 87559-862-671

MARK, A.C. TERMINAL

$

$

Not available

30

Honda 93500-06008

SCREW, PAN (6X8)

$1.49

$

In Stock, only 2 left!

0

30

Honda 93500-06008-0A

SCREW, PAN (6X8)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 93500-06008-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X8)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 93500-06012

SEE PART DETAILS - SUP; SCREW, PAN (6X12)

Note: Use from Frame SN 1000016 to 1000999.

$

$

Currently unavailable

31

Honda 93500-06012

SEE PART DETAILS - SUP; SCREW, PAN (6X12)

Note: Use from Frame SN 1001000.

$

$

Currently unavailable

31

Honda 93500-06012-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X12)

Note: Use from Frame SN 1000016 to 1000999.

$1.49

$

Usually ships in 3-6 days

0

31

Honda 93500-06012-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X12)

Note: Use from Frame SN 1001000.

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: Use from Frame SN 1000016 to 1000999.

$0.99

$

In Stock, Qty 20+

0

32

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: Use from Frame SN 1001000.

$0.99

$

In Stock, Qty 20+

0

33

Honda 94305-30183

PIN, SPRING (3X18)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0

35

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 20+

0
