EM5000SX A (EA7) - Honda Generator, Made in Japan (SN: EA7-1000001 - EA7-1100000) IGNITION COIL Parts Diagram

Generator, Made in Japan

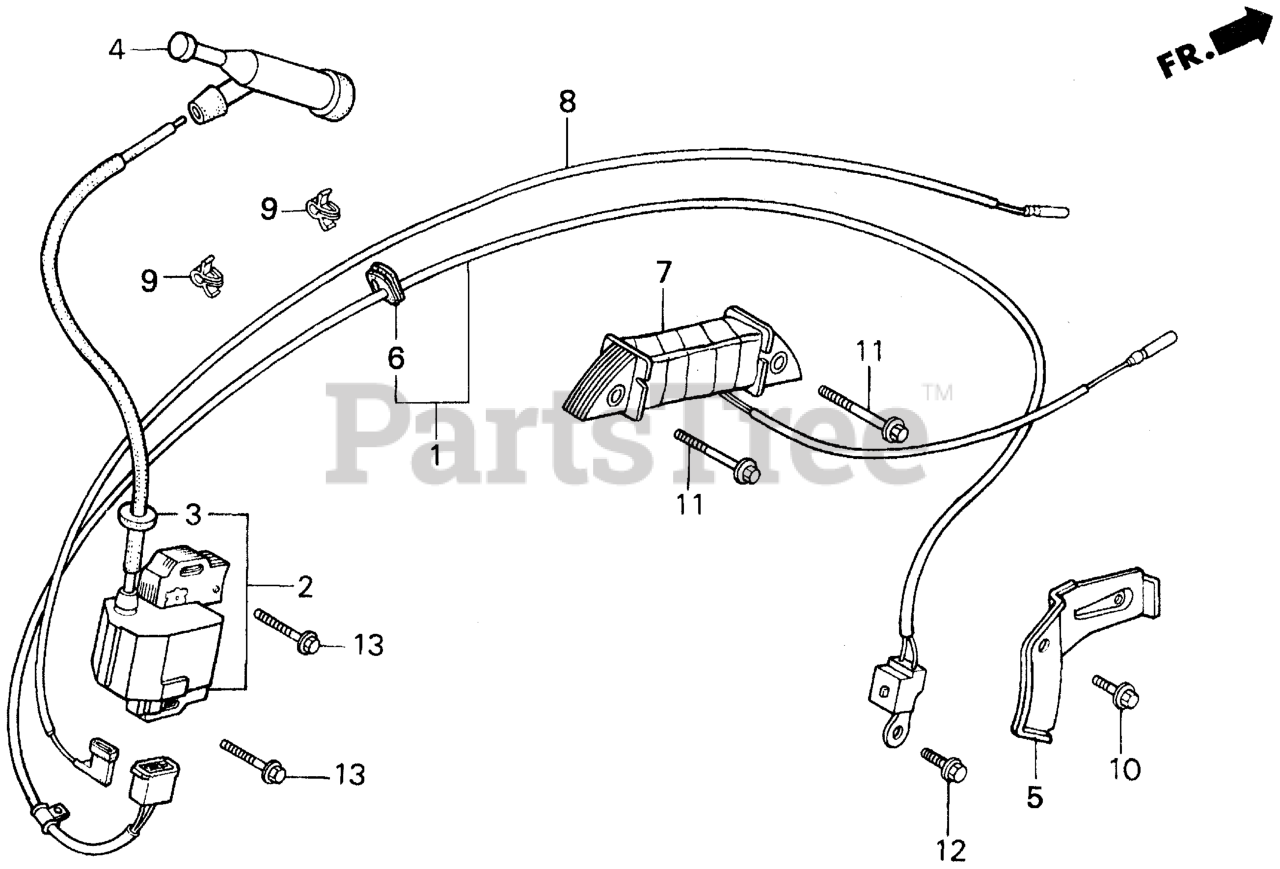

IGNITION COIL Parts Diagram

  • Title

1

Honda 30410-ZE3-811

COIL, PULSER (Honda Code 2108231).

Note: Use up to Engine SN 1253117.

$

$

Not available

2

Honda 30500-ZE2-003

COIL ASSY., IGNITION (Honda Code 2026375).

Note: Use from Engine SN 1253118 to 1457111.

$144.99

$

Usually ships in 3-6 days

0

2

Honda 30500-ZE2-023

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 4545927).

Note: Use from Engine SN 1457112.

$50.99

$

In Stock, only 3 left!

0

2

Honda 30500-ZE3-003

COIL ASSY., IGNITION (Honda Code 2108249).

Note: Use up to Engine SN 1253117.

$163.99

$

Usually ships in 3-6 days

0

2

Honda 30500-ZF6-W02

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (Honda Code 7032428).

Note: Use from Engine SN 1457112.

$50.99

$

In Stock, only 3 left!

0

3

Honda 30505-ZE6-000

GROMMET, IGNITION WIRE (Honda Code 2108256).

Note: Use up to Engine SN 1253117.

$2.49

$

Usually ships in 3-6 days

0

4

Honda 30700-ZE1-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3526837). (NICHIWA Y-EZ RTFM256)

$21.99

$

In Stock, only 4 left!

0

5

Honda 31511-ZE3-000

CLAMP, WIRE (Honda Code 2108363).

$6.49

$

Usually ships in 3-6 days

0

6

Honda 31512-ZE3-003

GROMMET, PULSER WIRE (Honda Code 2279248).

Note: Use up to Engine SN 1253117.

$3.99

$

Usually ships in 3-6 days

0

7

Honda 31630-ZE1-013

SEE PART DETAILS - PRI; COIL ASSY., CHARGE (1A)

$64.99

$

Usually ships in 3-6 days

0

8

Honda 36101-ZE3-700

WIRE, STOP SWITCH

Note: Use up to Engine SN 1457111.

$

$

Not available

8

Honda 36101-ZE3-800

WIRE, STOP SWITCH (470MM)

Note: Use from Engine SN 1457112.

$12.99

$

Usually ships in 3-6 days

0

9

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

Note: Use up to Engine SN 1423762.

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 13

0

11

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (Honda Code 1688076).

$2.49

$

In Stock, Qty 6

0

12

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

Note: Use up to Engine SN 1253117.

$2.99

$

In Stock, Qty 8

0

13

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.49

$

In Stock, only 3 left!

0
