EM5000SX K3 AG (EBMC) - Honda Generator, Made in China (SN: EBMC-1500001 - EBMC-9999999) CONTROL PANEL (4) Parts Diagram

Generator, Made in China

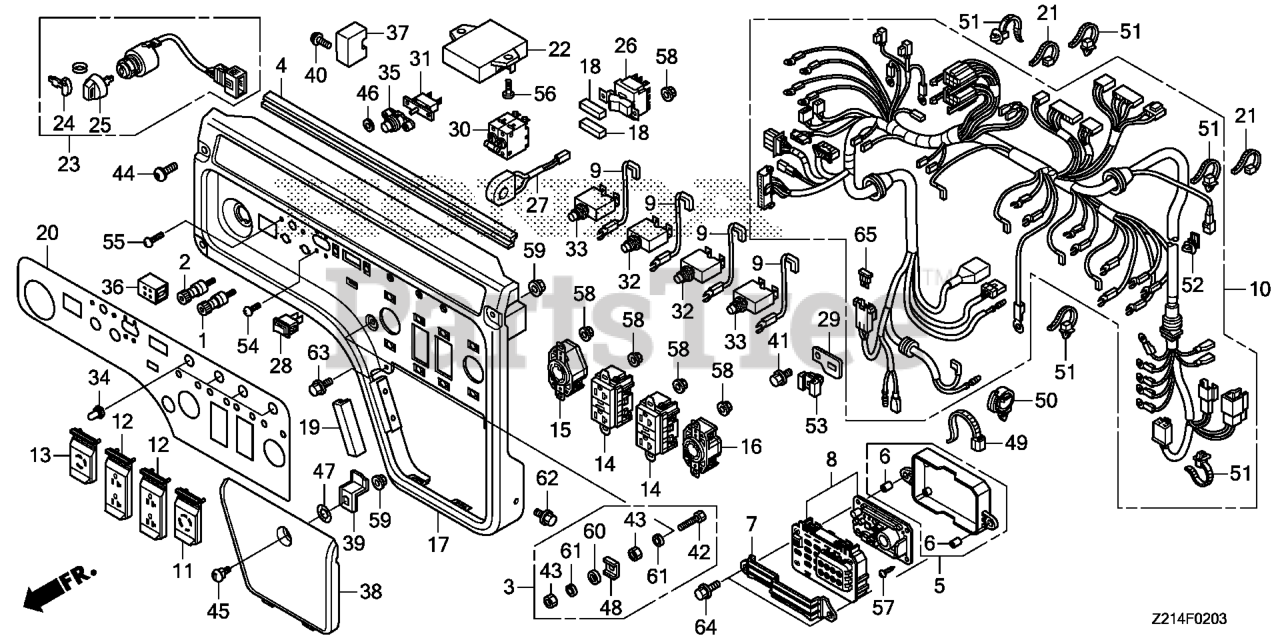

CONTROL PANEL (4) Parts Diagram

  • Title

1

Honda 31408-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (+)

$43.99

$

Usually ships in 3-6 days

0

2

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUTPUT (-)

$43.99

$

Usually ships in 3-6 days

0

3

Honda 31428-Z22-000

TERMINAL SET, GROUND

$8.49

$

Usually ships in 3-6 days

0

4

Honda 31462-Z23-F10

RUBBER, CONTROL PANEL

$9.99

$

Usually ships in 3-6 days

0

5

Honda 31705-Z30-C40

CASE, AUTOMATIC VOLTAGE REGULATOR (NOT AVAILABLE)

$4.99

$

Usually ships in 3-6 days

0

6

Honda 31706-Z30-C40

COLLAR, AUTOMATIC VOLTAGE REGULATOR CASE (NOT AVAILABLE)

$5.49

$

Usually ships in 3-6 days

0

7

Honda 31707-Z30-C40

COVER, AUTOMATIC VOLTAGE REGULATOR (NOT AVAILABLE)

$6.49

$

Usually ships in 3-6 days

0

8

Honda 31720-Z22-F20

COVER ASSY., AUTOMATIC VOLTAGE REGULATOR

$394.99

$

Usually ships in 3-6 days

0

9

Honda 32101-Z23-F20

SUB-WIRE ASSY. (A)

$7.99

$

Usually ships in 3-6 days

0

10

Honda 32150-Z22-C30

WIRE HARNESS ASSY., CONTROL (EM-AG)

$231.99

$

Usually ships in 3-6 days

0

11

Honda 32320-Z37-R50

COVER, RECEPTACLE (30A-125/250V)

$19.99

$

Usually ships in 3-6 days

0

12

Honda 32320-ZS9-W30

COVER, RECEPTACLE (20A-125V)

$19.99

$

Usually ships in 3-6 days

0

13

Honda 32321-ZS9-W30

COVER, RECEPTACLE (30A-125V)

$19.99

$

Usually ships in 3-6 days

0

14

Honda 32330-Z44-J31

RECEPTACLE (20A-125V) (GFCI)
(Superseded to 32330-Z44-J32)

$115.99

$

In Stock, only 1 left!

0

15

Honda 32332-Z22-E31

RECEPTACLE (30A-125V)

$83.99

$

Usually ships in 3-6 days

0

16

Honda 32334-Z22-A31

RECEPTACLE (30A-125/250V)

$100.99

$

In Stock, only 1 left!

0

17

Honda 32345-Z22-C30ZA

PANEL, CONTROL *R280* (EM-AG) (POWER RED)

$230.99

$

Usually ships in 3-6 days

0

18

Honda 32347-ZS9-W30

RUBBER, WATERPROOF

$4.99

$

Usually ships in 3-6 days

0

19

Honda 32349-Z23-F10

RUBBER, CONTROL PANEL (LOWER)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 32366-Z22-C30

MARK, PANEL (EM-AG)

$80.99

$

Usually ships in 3-6 days

0

21

Honda 32903-Z22-000

TIE, CABLE (C)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 34100-Z22-C31

CONTROL UNIT, ENGINE (AG)

$240.99

$

Usually ships in 3-6 days

0

23

Honda 35100-Z1C-D21

SWITCH ASSY., COMBINATION
(Superseded to 35100-Z1C-D22)

$84.99

$

Usually ships in 3-6 days

0

24

Honda 35110-Z5T-W01

KEY

$9.99

$

Usually ships in 3-6 days

0

25

Honda 35110-Z5T-W11

KEY ASSY., COMBINATION SWITCH (BLACK)

$9.99

$

Usually ships in 3-6 days

0

26

Honda 35320-Z22-E31

SWITCH ASSY., VOLT CHANGE

$101.99

$

Usually ships in 3-6 days

0

27

Honda 35694-Z23-003

SENSOR ASSY. (CT)

$98.99

$

Usually ships in 3-6 days

0

28

Honda 36214-Z11-A01

SWITCH, AUTO-THROTTLE (OTAX)

$23.99

$

In Stock, only 2 left!

0

29

Honda 38217-Z22-A30

BRACKET, FUSE

$9.49

$

Usually ships in 3-6 days

0

30

Honda 38220-Z31-D41

BREAKER, CIRCUIT (21A)

$165.99

$

Usually ships in 3-6 days

0

31

Honda 38240-898-000

PROTECTOR, CIRCUIT (D.C.)

$34.99

$

In Stock, only 4 left!

0

32

Honda 38240-Z23-F20

PROTECTOR, CIRCUIT (20A)

$94.99

$

Usually ships in 3-6 days

0

33

Honda 38241-Z23-F20

PROTECTOR, CIRCUIT (30A)

$25.99

$

Usually ships in 3-6 days

0

34

Honda 38242-Z25-A62

COVER, CIRCUIT PROTECTOR

$18.99

$

Usually ships in 3-6 days

0

35

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR (Honda Code 1888676).

$18.99

$

Usually ships in 3-6 days

0

36

Honda 38530-Z22-D31

LED ASSY., INDICATER

$33.99

$

Usually ships in 3-6 days

0

37

Honda 39160-Z22-C31

BLUETOOTH UNIT (ISOLATE)

$

$

Currently unavailable

38

Honda 50361-Z23-F10

COVER (LOWER)

$53.99

$

Usually ships in 3-6 days

0

39

Honda 50362-Z23-F10

LOCK PLATE, COVER (LOWER)

$9.99

$

Usually ships in 3-6 days

0

40

Honda 90003-MEL-000

BOLT, FLANGE (5X14)

$1.99

$

Usually ships in 3-6 days

0

41

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 13

0

42

Honda 90111-Z22-000

BOLT, HEX. (6X28)

$3.49

$

Usually ships in 3-6 days

0

43

Honda 90112-Z22-000

NUT, HEX. (6MM)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 90128-Z22-C30

BOLT, DISK (8X22) (TORX)

$3.99

$

Usually ships in 3-6 days

0

45

Honda 90163-Z23-F10

BOLT, MAINTENANCE LID LOCK

$2.99

$

In Stock, only 4 left!

0

46

Honda 90401-ZR4-F30

WASHER (4MM)

$1.49

$

Usually ships in 3-6 days

0

47

Honda 90444-397-000

WASHER, WAVE (12MM)

$5.49

$

Usually ships in 3-6 days

0

48

Honda 90501-ZA7-640

RETAINER (6MM)

$3.99

$

Usually ships in 3-6 days

0

49

Honda 90650-KV6-003

BAND, WIRE (95MM)

$3.99

$

Usually ships in 3-6 days

0

50

Honda 90681-763-A01

CLIP, WIRE HARNESS

$10.99

$

In Stock, only 1 left!

0

51

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$4.99

$

Usually ships in 3-6 days

0

52

Honda 91565-S0X-003

CLIP, CONNECTOR (DARK GREEN)

$4.49

$

Usually ships in 3-6 days

0

53

Honda 91565-Z22-003

CLIP, CONNECTOR HOLDER

$2.49

$

Usually ships in 3-6 days

0

54

Honda 93500-03005-0G

SCREW, PAN (3X5) (NOT AVAILABLE)

$

$

Currently unavailable

55

Honda 93500-03016-0G

SCREW, PAN (3X16)

$0.99

$

Usually ships in 3-6 days

0

56

Honda 93892-05014-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X14) (Honda Code 0660720).

$1.49

$

Usually ships in 3-6 days

0

57

Honda 93911-24120

SCREW, TAPPING (4X10) (PO)

$1.49

$

Usually ships in 3-6 days

0

58

Honda 94050-04000

NUT, FLANGE (4MM)

$1.49

$

Usually ships in 3-6 days

0

59

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

60

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

61

Honda 94111-06000

SEE PART DETAILS - PRI; WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

62

Honda 95701-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 6

0

63

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 10

0

64

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$1.99

$

In Stock, Qty 20+

0

65

Honda 98200-32000

FUSE, BLADE (20A)

$1.99

$

Usually ships in 3-6 days

0
