EM6000GP A (EZGR) - Honda Generator, Made in Japan (SN: EZGR-1000001 - EZGR-1009999) FUEL SYSTEM Parts Diagram

Generator, Made in Japan

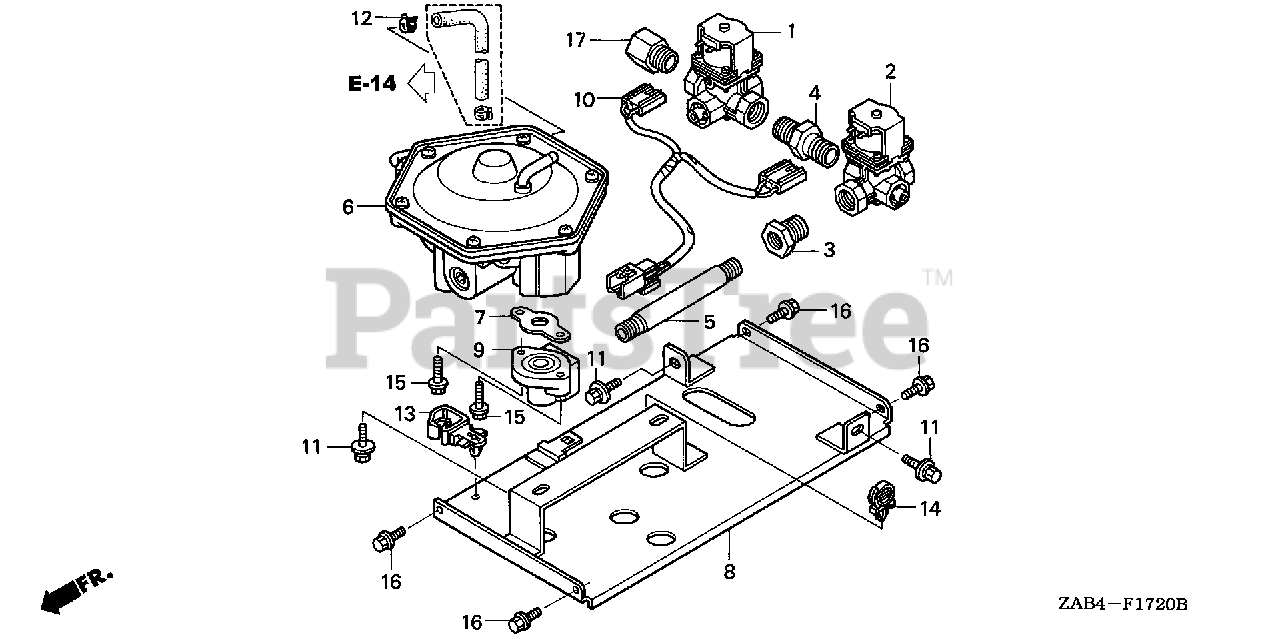

FUEL SYSTEM Parts Diagram

  • Title

1

Honda 16200-ZF6-F01

VALVE ASSY., SOLENOID (A)

$178.99

$

Usually ships in 3-6 days

0

2

Honda 16201-ZF6-F01

VALVE ASSY., SOLENOID (B)

$178.99

$

Usually ships in 3-6 days

0

3

Honda 16234-ZF6-F00

BUSHING (1/2X3/8)

$17.99

$

Usually ships in 3-6 days

0

4

Honda 16238-ZF6-F00

NIPPLE (1/2)

$24.99

$

Usually ships in 3-6 days

0

5

Honda 16239-ZF6-F01

SEE PART DETAILS - PRI; JOINT, IN. PIPE

$17.99

$

Usually ships in 3-6 days

0

6

Honda 16380-ZF6-F10

REGULATOR, LOW PRESSURE

$

$

Not available

7

Honda 16382-ZF6-F00

GASKET, ZERO GOVERNOR

$5.99

$

Usually ships in 3-6 days

0

8

Honda 16387-ZF6-F00

STAY, ZERO GOVERNOR

$53.99

$

Usually ships in 3-6 days

0

9

Honda 17110-ZF6-F00

PIPE, INLET

$51.99

$

Usually ships in 3-6 days

0

10

Honda 32173-ZAA-K60

HARNESS ASSY., SOLENOID VALVE

$48.99

$

Usually ships in 3-6 days

0

11

Honda 90132-SP0-000

BOLT-WASHER (6X16)

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90678-MN5-000

CLIP, FUEL HOSE

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90678-ZA0-601

CLIP, HARNESS (5MM-15MM)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90684-ZA0-601

CLIP, WIRE HARNESS

$4.49

$

Usually ships in 3-6 days

0

15

Honda 93401-06025-00

SEE PART DETAILS - PRI; BOLT-WASHER (6X25)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0

17

Honda 16237-ZF6-F10

ADAPTER (1/2X1/2)

$32.99

$

Usually ships in 3-6 days

0
