EM650 A (EA3) - Honda Generator, Made in Japan (SN: EA3-1000001 - EA3-9999999) EX/EM650RECOIL STARTER (2) Parts Diagram

Generator, Made in Japan

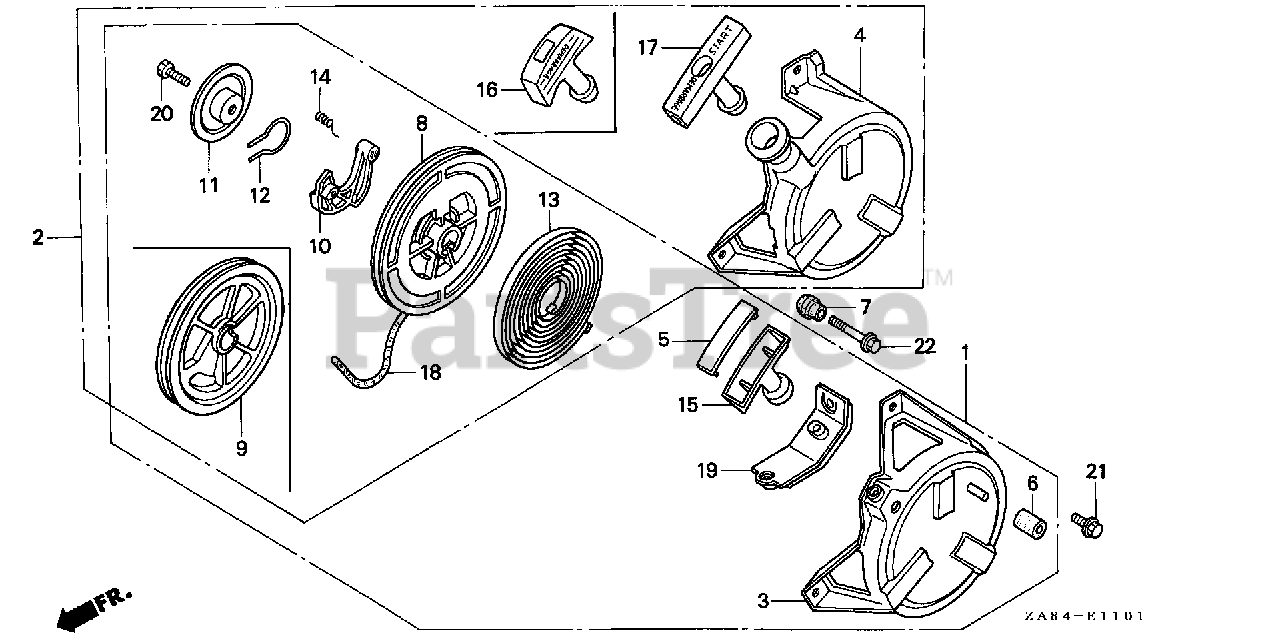

EX/EM650RECOIL STARTER (2) Parts Diagram

  • Title

2

Honda 28400-ZA8-905

STARTER ASSY., RECOIL

Note: Use from Engine SN 1280788.

$

$

Not available

2

Honda 28400-ZA8-905

STARTER ASSY., RECOIL

Note: Use from Engine SN 1358474.

$

$

Not available

4

Honda 28410-ZA8-902

CASE, RECOIL STARTER
(Superseded to 28410-ZA8-903)

Note: Use from Engine SN 1280788 to 1358473.

$

$

Not available

4

Honda 28410-ZA8-903

CASE, RECOIL STARTER

Note: Use from Engine SN 1358474.

$

$

Not available

7

Honda 28416-ZA8-900

STOPPER ASSY., BUMPER

Note: Use from Engine SN 1280788.

$9.49

$

Usually ships in 3-6 days

0

8

Honda 28420-ZA8-014

SEE PART DETAILS - PRI; REEL, RECOIL STARTER

Note: Use from Engine SN 1280788.

$42.99

$

In Stock, only 2 left!

0

10

Honda 28422-896-010

RATCHET, STARTER

Note: Use from Engine SN 1280788.

$8.99

$

In Stock, only 2 left!

0

11

Honda 28431-896-000

PLATE, FRICTION

Note: Use from Engine SN 1280788.

$6.99

$

In Stock, only 1 left!

0

12

Honda 28441-896-000

SPRING, FRICTION

Note: Use from Engine SN 1280788.

$9.49

$

In Stock, only 2 left!

0

13

Honda 28442-ZE6-003

SPRING, RECOIL STARTER

Note: Use from Engine SN 1280788.

$27.99

$

In Stock, only 1 left!

0

14

Honda 28443-896-000

SPRING, RETURN

Note: Use from Engine SN 1280788.

$5.49

$

In Stock, Qty 7

0

16

Honda 28461-ZA8-902

KNOB, RECOIL STARTER

Note: Use from Engine SN 1282303.

$

$

Not available

17

Honda 28461-ZG0-004

KNOB, STARTER

Note: Use from Engine SN 1280788 to 1282302.

$10.99

$

In Stock, only 1 left!

0

18

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#4X55")
(Superseded to 28462-ZE6-T02)

Note: Use from Engine SN 1280788.

$6.49

$

In Stock, Qty 6

0

18

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE (#4X55")

Note: Use from Engine SN 1280788.

$6.49

$

In Stock, Qty 6

0

20

Honda 92101-06012-0H

BOLT, HEX. (6X20)

Note: Use from Engine SN 1280788.

$1.99

$

In Stock, Qty 5

0

21

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10)

Note: Use from Engine SN 1280788.

$2.49

$

In Stock, Qty 5

0

22

Honda 96001-06032-00

BOLT, FLANGE (6X32)

Note: Use from Engine SN 1280788.

$1.99

$

In Stock, only 3 left!

0
