EM6500SX K1 ANH (EAPC) - Honda Generator, Made in China (SN: EAPC-1000001 - EAPC-9999999) REMOTE CONTROL KIT Parts Diagram

Generator, Made in China

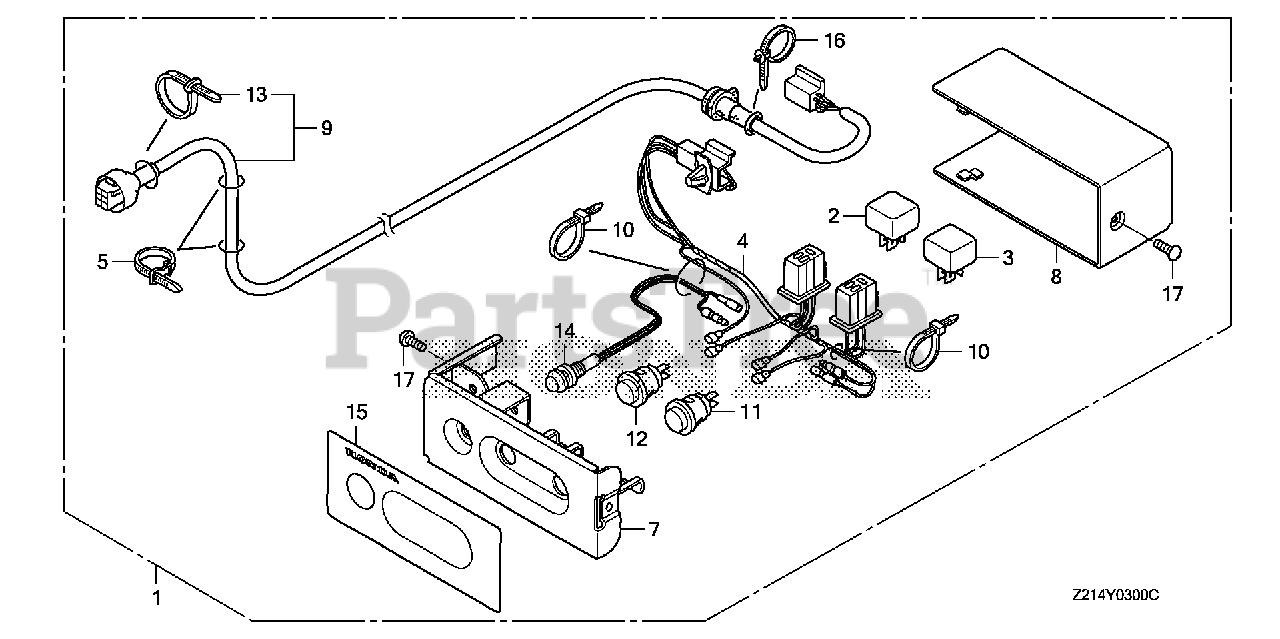

REMOTE CONTROL KIT Parts Diagram

  • Title

1

Honda 06610-Z22-800ZA

CONTROL KIT, REMOTE (10M) *NH105* (MAT BLACK)

Note: (Optional).

$281.99

$

Usually ships in 3-6 days

0

1

Honda 06610-Z22-810ZA

CONTROL KIT, REMOTE (20M) *NH105* (MAT BLACK)

Note: (Optional).

$532.99

$

Usually ships in 3-6 days

0

1

Honda 06610-Z22-820ZA

CONTROL KIT, REMOTE (30M) *NH105* (MAT BLACK)

Note: (Optional).

$577.99

$

Usually ships in 3-6 days

0

2

Honda 31700-MM8-610

RECTIFIER, SILICON

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

3

Honda 31700-196-000

RECTIFIER, SILICON

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

4

Honda 32140-Z22-800

HARNESS ASSY., REMOTE CONTROL

Note: (Optional).

$38.99

$

Usually ships in 3-6 days

0

5

Honda 32161-367-690

BAND, WIRE

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

7

Honda 32381-Z22-800ZA

PANEL, REMOTE CONTROL *NH105* (MAT BLACK)

Note: (Optional).

$57.99

$

In Stock, only 1 left!

0

8

Honda 32382-Z22-800ZA

COVER, REMOTE CONTROL *NH105* (MAT BLACK)

Note: (Optional).

$41.99

$

Usually ships in 3-6 days

0

9

Honda 32520-Z22-800

CABLE ASSY., REMOTE CONTROL (10M)

Note: (Optional).

$222.99

$

Usually ships in 3-6 days

0

9

Honda 32520-Z22-810

CABLE ASSY., REMOTE CONTROL (20M)

Note: (Optional).

$314.99

$

Usually ships in 3-6 days

0

9

Honda 32520-Z22-820

CABLE ASSY., REMOTE CONTROL (30M)

Note: (Optional).

$445.99

$

Usually ships in 3-6 days

0

10

Honda 32903-ZC8-N01

TIE, CABLE (C)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 35120-Z22-801

SWITCH, ENGINE STOP

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

12

Honda 35150-Z22-801

SWITCH, START

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

13

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

14

Honda 37570-Z22-A91

LED ASSY.

Note: (Optional).

$101.99

$

Usually ships in 3-6 days

0

15

Honda 87247-Z22-800

MARK, REMOTE CONTROL

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

16

Honda 90615-PN3-003

BAND, HARNESS (98MM) (NATURAL)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

17

Honda 93500-04008-0G

SCREW, PAN (4X8)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
