EMLP 21601 (84294) - Snapper 21" Walk-Behind Mower, 6hp Wheels, Front & Rear Parts Diagram

21" Walk-Behind Mower, 6hp

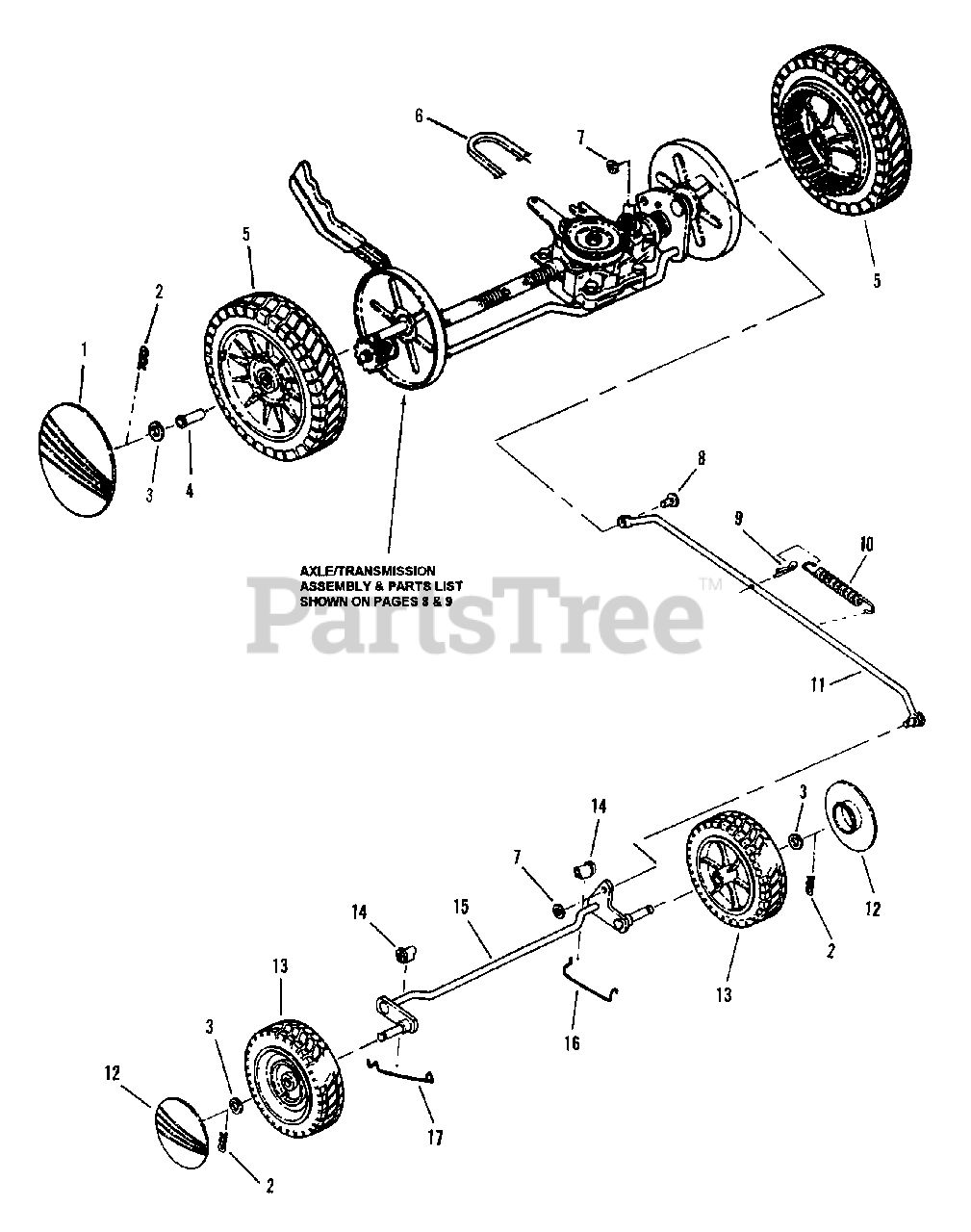

Wheels, Front & Rear Parts Diagram

  • Title

1

Snapper 7024540

HUB-CAP, Rear Wheels
(Superseded to 7024540YP)

$5.49

$

Usually ships in 2-12 days

0

2

Snapper 7091193

HAIRPIN, 1/16 x 29/32"
(Superseded to 7091193YP)

$5.99

$

In Stock, only 1 left!

0

3

Snapper 7091192

WASHER, 1/2" Flat
(Superseded to 7091192SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7073618

BUSHING, Rear Wheel
(Superseded to 7073618YP)

Note: Was 24541

$7.99

$

Usually ships in 2-12 days

0

5

Snapper 7074629

ASSEMBLY, Rear Drive Wheels
(Superseded to 7104781YP)

Note: Was 53508 (Includes item 4)

$40.99

$

In Stock, only 3 left!

0

6

Snapper 7024750

BELT, Traction Drive
(Superseded to 7024750YP)

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 7013946

RETAINER, Wheel
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7091232

PIN, 3/8 x 5/8" Tie Bar
(Superseded to 7091232YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7091598

COTTER-PIN, 1/8 x 3/4"
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, Qty 7

0

10

Snapper 7024751

SPRING, Tie Bar
(Superseded to 7024751YP)

$12.99

$

Usually ships in 2-12 days

0

11

Snapper 7041364

ASSEMBLY, Tie Bar
(Superseded to 7041364AYP)

$119.99

$

Usually ships in 2-12 days

0

12

Snapper 7016152

HUB-CAP, Front Wheels

$

$

Not available

13

Snapper 7028456

ASSEMBLY, Wheels (Front)
(Superseded to 7500540YP)

$40.99

$

In Stock, Qty 10

0

14

Snapper 7024558

BUSHING, Front Axle
(Superseded to 7024558YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7041344

ASSEMBLY, Front Axle
(Superseded to 7041344YP)

$115.99

$

Usually ships in 2-12 days

0

16

Snapper 7034340

SPRING, Axle Retaining (Left Side)
(Superseded to 7034340YP)

$7.49

$

Usually ships in 2-12 days

0

17

Snapper 7034341

SPRING, Axle Retaining (Right Side)
(Superseded to 7034341YP)

$8.99

$

Usually ships in 2-12 days

0
