EMP 22675 HW (7800732) - Murray 22" High Wheel Walk-Behind Mower, 6.75hp (2010) Deck Assembly Group Parts Diagram

22" High Wheel Walk-Behind Mower, 6.75hp

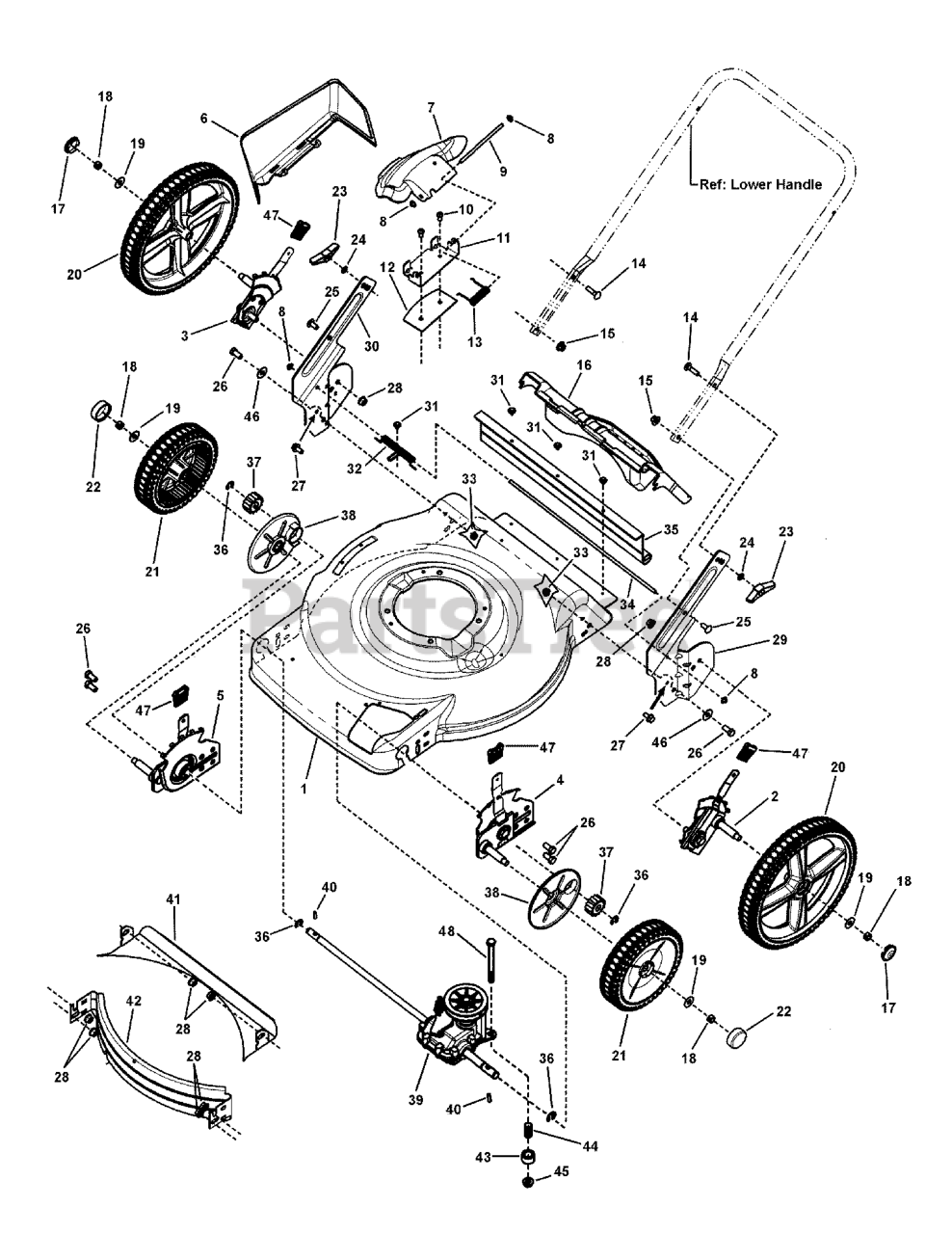

Deck Assembly Group Parts Diagram

  • Title

1

Murray 7300400BIYP

DECK, 22 WALK, 3-N-1

$230.99

$

Usually ships in 2-12 days

0

2

Murray 7501055YP

ASSEMBLY, Height-Of-Cut, 22, 7 Position, Left Rear

$

$

Not available

3

Murray 7501056YP

ASSEMBLY, Height-Of-Cut, 22, 7 Position, Right Rear

$27.99

$

Usually ships in 2-12 days

0

4

Murray 7501058YP

ASSEMBLY, Height-Of-Cut, 22", Propelled, 7 Position, Left Front

$91.99

$

Usually ships in 2-12 days

0

5

Murray 7501057YP

ASSEMBLY, Height-Of-Cut, 22, Propelled, 7 Position, Right Front

$78.99

$

Usually ships in 2-12 days

0

6

Murray 1101097MA

SIDE CHUTE, Plastic, Black

$40.99

$

Usually ships in 2-12 days

0

7

Murray 1101098MA

COVER, Mulch, Plastic, Black

$35.99

$

In Stock, only 1 left!

0

8

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 17

0

9

Murray 215X19ZMA

ROD, Chute Pivot (1/4" Dia. x 5.55")
(Superseded to 7101067YP)

$7.49

$

Usually ships in 2-12 days

0

10

Murray 7900067YP

SCREW, Torx,, 1/4-20 x 11/16

$4.49

$

In Stock, Qty 18

0

11

Murray 7300855BIYP

BRACKET, Chute

$9.99

$

Usually ships in 2-12 days

0

12

Murray 7300856BIYP

PLATE, Mulch

$5.99

$

Usually ships in 2-12 days

0

13

Murray 166X38MA

SPRING, Torsion, Chute

$5.49

$

In Stock, only 1 left!

0

14

Murray 7091714YP

BOLT, Carriage, 5/16-18 x 1
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

15

Murray 7090951SM

NUT, Hex, 5/16-18
(Superseded to 704001)

$4.49

$

In Stock, Qty 8

0

16

Murray 7101243YP

DOOR, Rear Discharge

$54.99

$

Usually ships in 2-12 days

0

17

Murray 7101931MA

HUBCAP, 12 Wheel

$4.49

$

Usually ships in 2-12 days

0

18

Murray 7091585SM

NUT, Centerlock, 3/8-16
(Superseded to 703347)

$4.99

$

In Stock, Qty 12

0

19

Murray 17X169MA

WASHER, Flat, 3/8 ID x 1 OD
(Superseded to 703966)

$4.49

$

In Stock, Qty 6

0

20

Murray 7501399YP

ASSY, Wheel, 12" x 2" Idle, NB, Murray Tread, Pewter
(Superseded to 7105712YP)

$53.99

$

Usually ships in 2-12 days

0

21

Murray 7501390YP

WHEEL, 8 x 2, Drive

$41.99

$

Usually ships in 2-12 days

0

22

Murray 7101351MA

HUBCAP

$4.99

$

Usually ships in 2-12 days

0

23

Murray 7035744YP

WINGKNOB, 5/16-18
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

24

Murray 7090391SM

WASHER, Internal Tooth Lock, 5/16"
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

25

Murray 7091508SM

BOLT, Carriage, 5/16-18 x 3/4"
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

26

Murray 7090134MA

CAPSCREW, Hex Head, 3/8-16 x 3/4
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

27

Murray 7090606SM

BOLT, Hex Flange, 5/16-18 x 5/8
(Superseded to 703823)

$3.99

$

Usually ships in 2-12 days

0

28

Murray 7900053MA

NUT, Hex Flange,, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 15

0

29

Murray 7300583AYP

BRACKET, Lower Handle, Left

$37.99

$

Usually ships in 2-12 days

0

30

Murray 7300582AYP

BRACKET, Lower Handle, Right

$37.99

$

Usually ships in 2-12 days

0

31

Murray 7091286YP

SCREW, Self Tap, SEMS, 10-24 x 1/2

$4.99

$

In Stock, Qty 12

0

32

Murray 7101461YP

SPRING, Torsion, Rear Door

$6.99

$

Usually ships in 2-12 days

0

33

Murray 7090585MA

NUT, Hex Flange Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

34

Murray 7101070YP

ROD, Pivot, Rear Door

$6.99

$

Usually ships in 2-12 days

0

35

Murray 7102422YP

GUARD, Rear, 22 HW (19-1/2 long)

$19.99

$

In Stock, only 2 left!

0

36

Murray 7014341YP

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

37

Murray 7101207YP

GEAR, Pinion

$8.99

$

In Stock, only 3 left!

0

38

Murray 7101402YP

SHIELD, Dust

$7.99

$

In Stock, only 2 left!

0

39

Murray 7101206MA

TRANSMISSION, 22" WBM Single Speed, Front Wheel Drive

$137.99

$

Usually ships in 2-12 days

0

40

Murray 7101270YP

PIN, Drive, 22 WBM, FWD

$5.49

$

In Stock, only 2 left!

0

41

Murray 7300854BIYP

BAFFLE, Rear

$

$

Not available

42

Murray 7300440BIYP

BAFFLE, Front, 22 WBM

$141.99

$

Usually ships in 2-12 days

0

43

Murray 7102671YP

SPACER, Drive Transmission

$3.99

$

Usually ships in 2-12 days

0

44

Murray 164X27MA

SPRING, Compression

$4.49

$

Usually ships in 2-12 days

0

45

Murray 015X88MA

NUT, Hex Flange Centerlock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

46

Murray 7091528SM

WASHER, Flat, 3/8 x 7/8
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

47

Murray 7100633YP

GRIP, Height Latch
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 20+

0

48

Murray 01X156MA

BOLT, Hex, 5/16-18 x 3
(Superseded to 5025011X24SM)

$4.49

$

Usually ships in 2-12 days

0
