EMP 22675 HW (7800732) - Murray 22" High Wheel Walk-Behind Mower, 6.75hp (2010) Handles & Controls Group Parts Diagram

22" High Wheel Walk-Behind Mower, 6.75hp

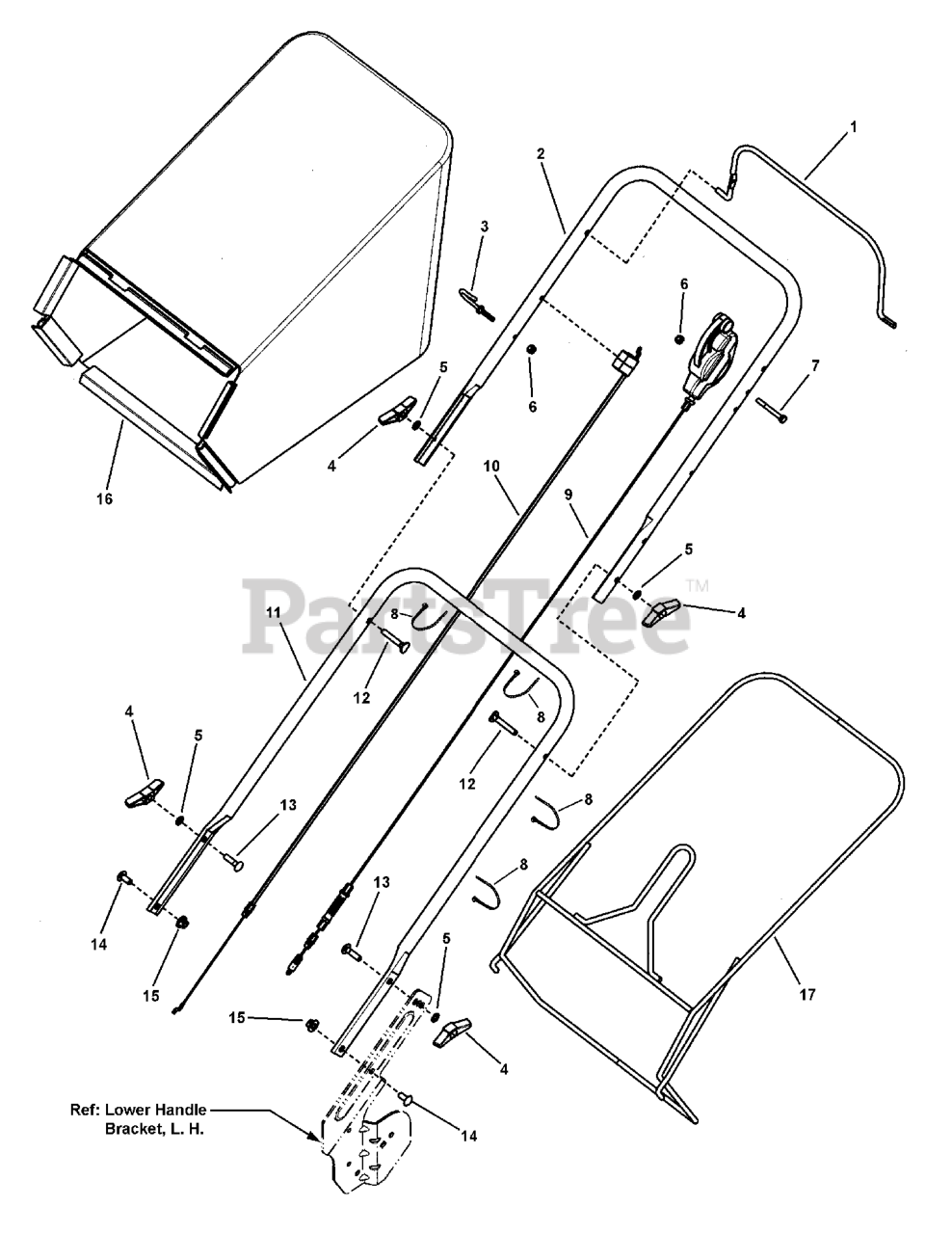

Handles & Controls Group Parts Diagram

  • Title

1

Murray 7103975AYP

BAIL, OPC Propelled

$12.99

$

Usually ships in 2-12 days

0

2

Murray 7300705AMA

UPPER HANDLE, Propelled

$51.99

$

Usually ships in 2-12 days

0

3

Murray 071530MA

GUIDE, Rope (1/4-20 thread)

$5.99

$

Usually ships in 2-12 days

0

4

Murray 7035744YP

KNOB, Wing, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

5

Murray 7090391SM

WASHER, Internal Tooth Lock, 5/16"
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

6

Murray 7076978SM

NUT, 1/4-20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 7090892YP

CAPSCREW, Hex Head, 1/4-20 x 2-1/4", GR 5
(Superseded to 1960346SM)

$4.99

$

Usually ships in 2-12 days

0

8

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

9

Murray 1101670MA

CONTROL, Drive, Single Speed

$54.99

$

Usually ships in 2-12 days

0

10

Murray 7103977YP

CABLE, Bail, HW Propelled, Hi-Wheel

$41.99

$

In Stock, only 4 left!

0

11

Murray 7301013AYP

HANDLE, Lower

$143.99

$

Usually ships in 2-12 days

0

12

Murray 7091189YP

BOLT, Curved Head Square Neck, 5/16-18 x 2", GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 14

0

13

Murray 7091714YP

BOLT, Carriage, 5/16-18 x 1
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

14

Murray 7091508SM

BOLT, Carriage, 5/16-18 x 3/4"
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

15

Murray 7090951SM

NUT, Hex, 5/16-18
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

16

Murray 7102573YP

BAG, Cloth, Grass Bag, Murray

$128.99

$

Usually ships in 2-12 days

0

17

Murray 7101230AYP

WELDMENT, Frame, Grass Bag

$222.99

$

Usually ships in 2-12 days

0
