EMP 22675 HW (7800865) - Murray 22" High Wheel Walk-Behind Mower, 6.75hp (2011) Deck Group, Murray, 22" HW Parts Diagram

22" High Wheel Walk-Behind Mower, 6.75hp

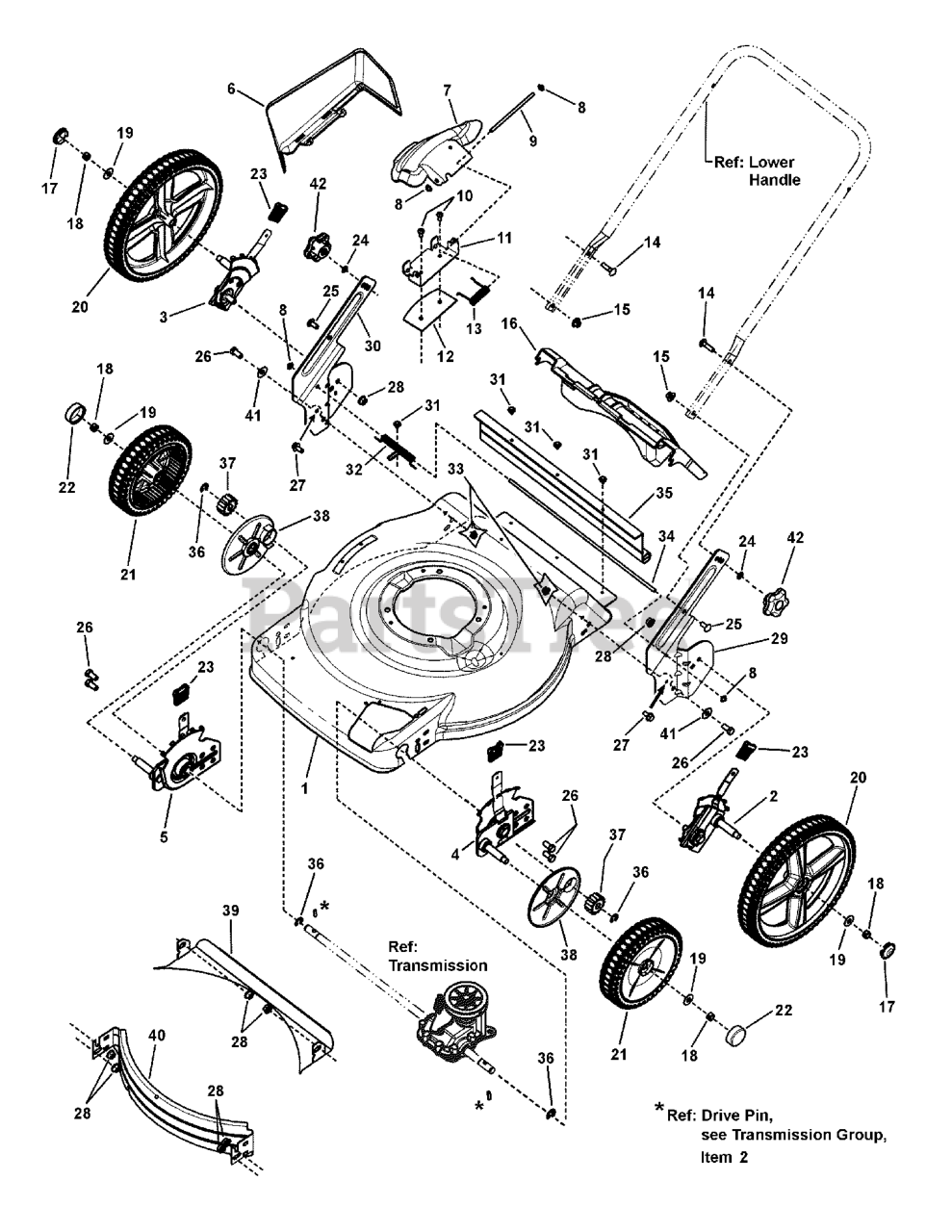

Deck Group, Murray, 22" HW Parts Diagram

  • Title

1

Murray 7300400BIYP

DECK, 22" Walk, 3-N-1

$230.99

$

Usually ships in 2-12 days

0

2

Murray 7501055YP

ASSEMBLY, Height-Of-Cut, 22", 7 Position, Left Rear

$

$

Not available

3

Murray 7501056YP

ASSEMBLY, Height-Of-Cut, 22", 7 Position, Right Rear

$41.99

$

Usually ships in 2-12 days

0

4

Murray 7501058YP

ASSEMBLY, Height-Of-Cut, 22", Propelled, 7 Position, Left Front

$86.99

$

In Stock, only 1 left!

0

5

Murray 7501057YP

ASSEMBLY, Height-Of-Cut, 22", Propelled, 7 Position, Right Front

$74.99

$

Usually ships in 2-12 days

0

6

Murray 1101097MA

SIDE CHUTE, Plastic, Black

$39.99

$

In Stock, only 1 left!

0

7

Murray 1101098MA

COVER, Mulch, Plastic, Black

$33.99

$

In Stock, only 1 left!

0

8

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

9

Murray 215X19ZMA

ROD, Pivot, Chute
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

10

Murray 7900067YP

SCREW, Torx, 1/4-20 x 11/16"

$4.49

$

In Stock, Qty 20+

0

11

Murray 7300855BIYP

BRACKET, Chute

$9.99

$

Usually ships in 2-12 days

0

12

Murray 7300856BIYP

PLATE, Mulch

$5.49

$

Usually ships in 2-12 days

0

13

Murray 166X38MA

SPRING, Torsion, Chute

$4.99

$

In Stock, only 2 left!

0

14

Murray 80004473YP

BOLT, 5/16-18 x 1" Round Head Square Neck Carriage, GR 5

Note: (Was 7091714YP)

$

$

Currently unavailable

15

Murray 80002728YP

NUT, Hex, 5/16-18

Note: (Was 7090951SM)

$

$

Currently unavailable

16

Murray 7101243YP

DOOR, Rear Discharge

$51.99

$

Usually ships in 2-12 days

0

17

Murray 7101931MA

HUBCAP, 12" Wheel

$4.49

$

Usually ships in 2-12 days

0

18

Murray 80004408YP

NUT, 3/8-16 Hex Center Lock

Note: (Was 7091585SM)

$

$

Currently unavailable

19

Murray 17X169MA

WASHER, 1" O.D. x .387 I.D. Flat, 1
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

20

Murray 7501399YP

ASSY, Wheel, 12" x 2" Idle, NB, Murray Tread, Pewter
(Superseded to 7105712YP)

$52.99

$

Usually ships in 2-12 days

0

21

Murray 7501390YP

WHEEL, 8 x 2, Drive

$40.99

$

Usually ships in 2-12 days

0

22

Murray 7101351MA

HUBCAP

$4.99

$

Usually ships in 2-12 days

0

23

Murray 7103793YP

GRIP, Height Latch, Black

Note: (Was 7100633YP)

$4.49

$

In Stock, Qty 9

0

24

Murray 7090391SM

WASHER, Internal Tooth Lock, 5/16"
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

25

Murray 80004072YP

BOLT, Carriage, 5/16-18 x 3/4"

Note: (Was 7091508SM)

$

$

Currently unavailable

26

Murray 80004002YP

SCREW, 3/8-16 x 3/4" Hex Head Cap

Note: (Was 7090134MA)

$

$

Currently unavailable

27

Murray 7090606SM

BOLT, Hex Flange, 5/16-18 x 5/8
(Superseded to 703823)

$3.99

$

In Stock, Qty 7

0

28

Murray 80002729YP

NUT, 3/8-16 Hex Flange Lock

Note: (Was 7900053MA)

$

$

Currently unavailable

29

Murray 7301197AYP

BRACKET, Lower Handle, Left

Note: (Was 7300583AYP)

$

$

Currently unavailable

30

Murray 7301196AYP

BRACKET, Lower Handle, Right

Note: (Was 7300582AYP)

$

$

Currently unavailable

31

Murray 7091286YP

SCREW, Self Tap, SEMS, 10-24 x 1/2

$4.99

$

In Stock, Qty 17

0

32

Murray 7101461YP

SPRING, Torsion, Rear Door

$6.99

$

Usually ships in 2-12 days

0

33

Murray 7090585MA

NUT, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 7

0

34

Murray 7101070YP

ROD, Pivot, Rear Door

$6.49

$

Usually ships in 2-12 days

0

35

Murray 7102422YP

GUARD, Rear 22" Hi-Wheel

$18.99

$

In Stock, only 2 left!

0

36

Murray 7014341YP

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

37

Murray 7101207YP

GEAR, Pinion

$8.49

$

In Stock, only 2 left!

0

38

Murray 7101402YP

SHIELD, Dust

$7.49

$

In Stock, Qty 5

0

39

Murray 7300854BIYP

BAFFLE, Rear

$35.99

$

In Stock, only 1 left!

0

40

Murray 7300440BIYP

BAFFLE, Front, 22" WBM

$133.99

$

Usually ships in 2-12 days

0

41

Murray 80002748YP

WASHER, .375 I.D. x .875 x .083 Flat

Note: (Was 7091528SM)

$

$

Currently unavailable

42

Murray 7105085YP

KNOB, Handle

$3.99

$

In Stock, Qty 20+

0
