EMPV 21675 (7800866) - Murray 21" Walk-Behind Mower (2012) Engine & Blade Group (7502108_7502757) Parts Diagram

21" Walk-Behind Mower

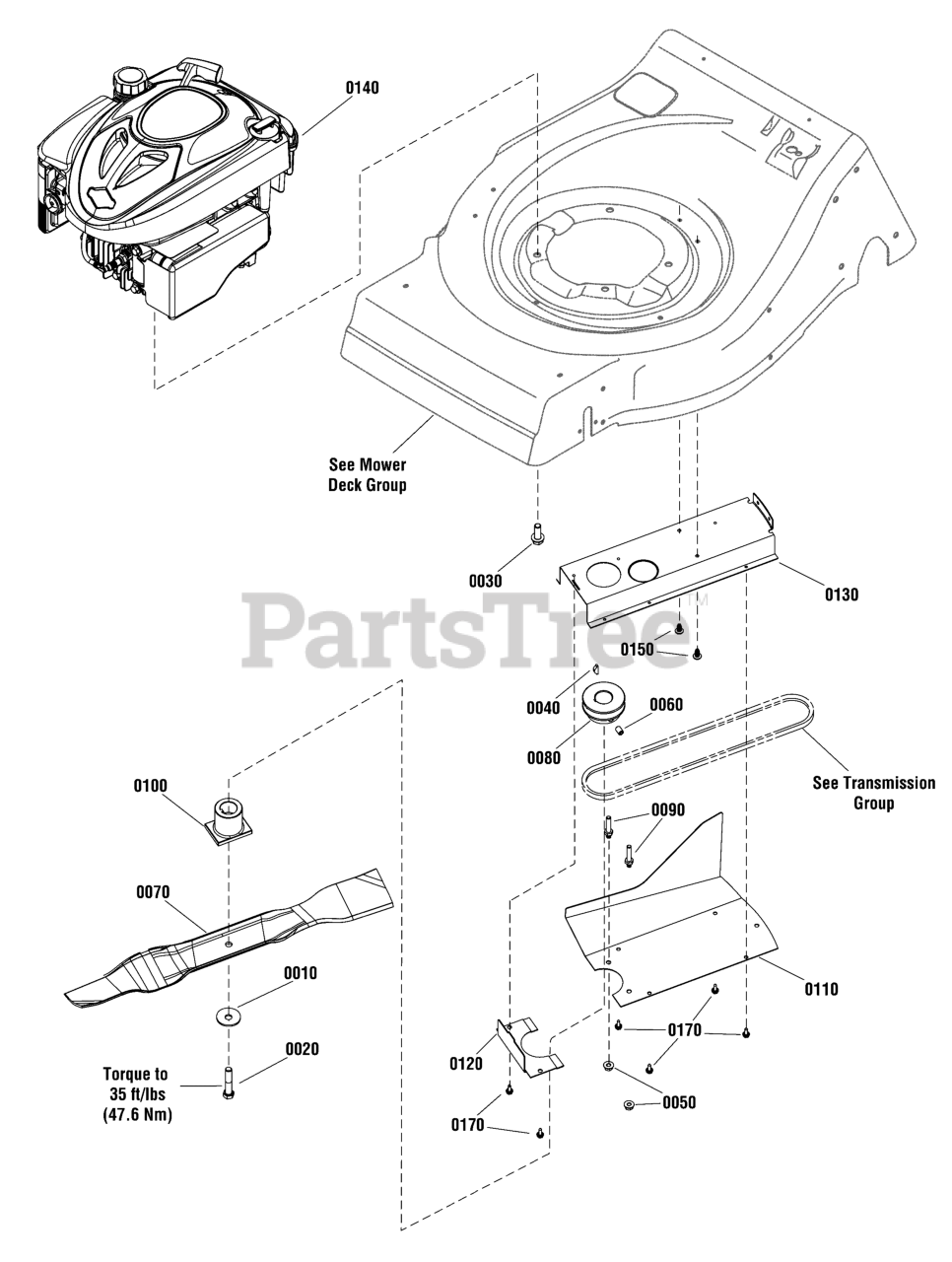

Engine & Blade Group (7502108_7502757) Parts Diagram

  • Title

0010

Murray 7012063SM

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 16

0

0020

Murray 7090167SM

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5

$

$

Not available

0030

Murray 7090324SM

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$5.49

$

In Stock, Qty 13

0

0040

Murray 7091214YP

KEY, Hi-Pro, HP-506

$4.99

$

In Stock, Qty 7

0

0050

Murray 7091584SM

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 10

0

0060

Murray 7092086YP

SET SCREW, 5/16-18 x 1/2", Hex Recess

$4.99

$

Usually ships in 2-12 days

0

0070

Murray 7100242YP

BLADE, Wave, 21 Steel Deck
(Superseded to 7100242AYP)

$29.99

$

In Stock, Qty 7

0

0080

Murray 7105122YP

PULLEY, Engine

$43.99

$

In Stock, only 3 left!

0

0090

Murray 7101313YP

BELT GUIDE, Engine, 21" RD (1/4-20 thread)

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 7101414YP

HUB, Blade, 2 Position

$17.99

$

In Stock, Qty 5

0

0110

Murray 7300596YP

COVER, Belt Guard
(Superseded to 7300596ZMA)

$35.99

$

In Stock, only 1 left!

0

0120

Murray 7300724YP

COVER, Belt

$11.99

$

Usually ships in 2-12 days

0

0130

Murray 7300725YP

GUARD, Belt

$17.99

$

In Stock, only 1 left!

0

0140

Murray 126T02-7268-H1

* ENGINE, B&S, 675 Series Euro QTM, Mod. 126T02-7268-H1

Note: Used On Walk Behind Mower Model 7800866 only.

$

$

Not available

0140

Murray 126T02-0268-B1

* ENGINE, 675 Series Briggs & Stratton

Note: Used On Walk Behind Mower Model 7800719 only.

$

$

Not available

0150

Murray 703961

SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear

$4.49

$

In Stock, Qty 18

0

0170

Murray 26X259MA

SCREW, #10 x 1/2", AB, w/Washer

$4.49

$

In Stock, only 4 left!

0
