EMPV 21675 (7800866) - Murray 21" Walk-Behind Mower (2012) Handle Assembly Group (7502112_7502767) Parts Diagram

21" Walk-Behind Mower

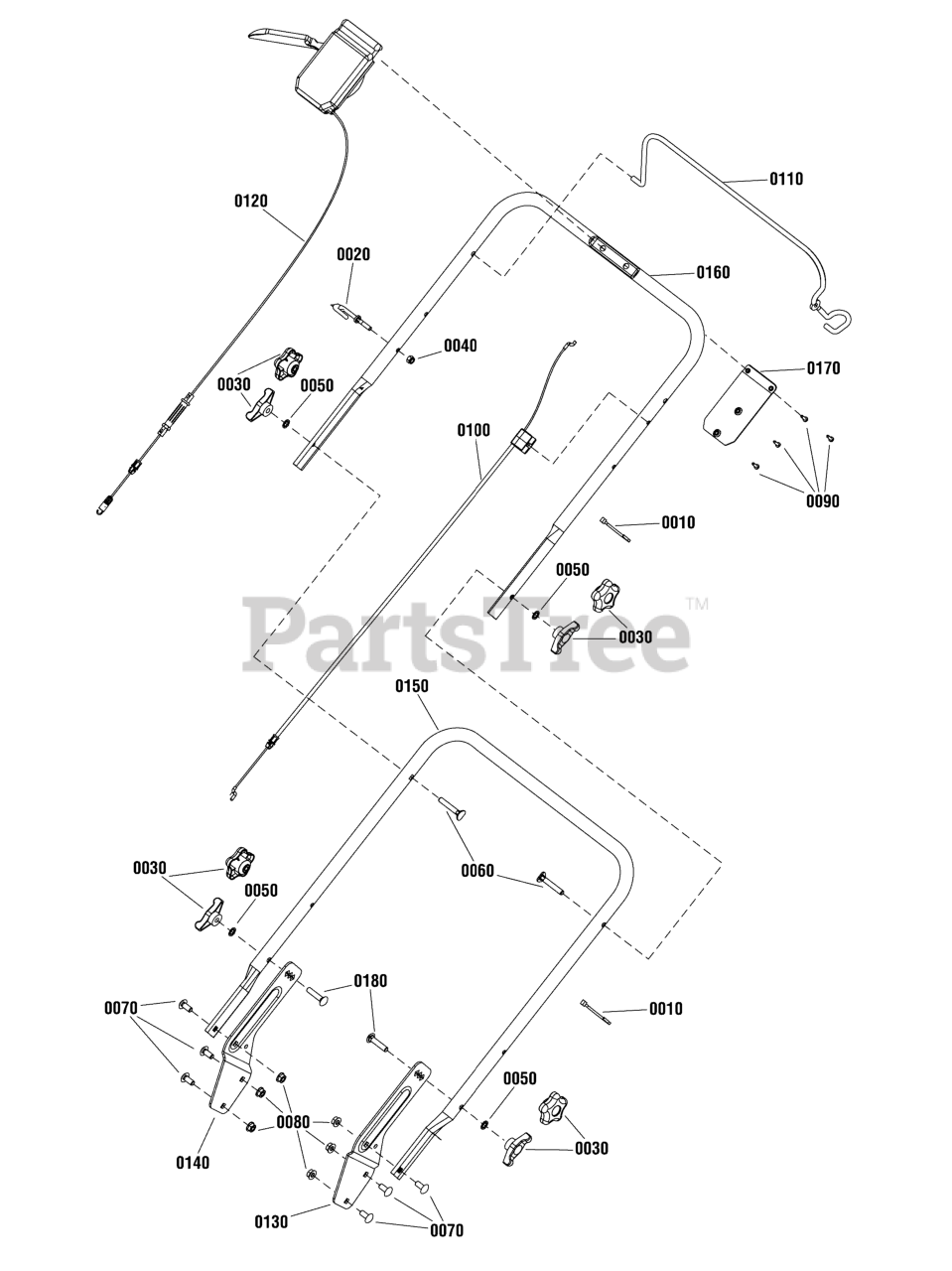

Handle Assembly Group (7502112_7502767) Parts Diagram

  • Title

0010

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

0020

Murray 7028488MA

GUIDE, 1/4-20, Rope, CL/ZC

$6.99

$

In Stock, only 3 left!

0

0030

Murray 7035744YP

KNOB, Wing, 5/16-18
(Superseded to 703065)

Note: Used on Model 7800719 only

$7.49

$

In Stock, Qty 20+

0

0030

Murray 7105085YP

KNOB, 5/16-18, Handle, Fluted 5 Prong, Black

Note: Used on Model 7800866 only

$3.99

$

In Stock, Qty 16

0

0040

Murray 7076978SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 7090391SM

WASHER, 5/16, Internal Lock, Zinc/Clear
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0060

Murray 703059

BOLT, Conical, 5/16-18 x 2

$4.49

$

In Stock, Qty 12

0

0070

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0080

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.99

$

In Stock, Qty 13

0

0090

Murray 7100225YP

SCREW, #8-16 Torxplus Recessed Pan Head, Twin Heli
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

0100

Murray 7101399YP

CABLE, Bail, 21"

$23.99

$

In Stock, only 2 left!

0

0110

Murray 7101731AMA

BAIL, Operator Presence Control, Propelled, Brute
(Superseded to 7101731BMYP)

$73.99

$

Usually ships in 2-12 days

0

0120

Murray 7101892MA

ASSEMBLY, Control Head, Single Speed
(Superseded to 7101416YP)

$

$

Not available

0130

Murray 7300573AYP

BRACKET, Lower Handle, LH 21 WBM

$14.99

$

Usually ships in 2-12 days

0

0140

Murray 7300574AYP

BRACKET, Lower Handle, RH 21 WBM

$21.99

$

Usually ships in 2-12 days

0

0150

Murray 7300592AMA

HANDLE, Lower, 21" Rear Discharge
(Superseded to 7301182AYP)

$93.99

$

In Stock, only 1 left!

0

0160

Murray 7300676AMA

HANDLE, Upper, Brute, Propelled

$

$

Not available

0170

Murray 7300130AMA

PLATE, Control Panel

$23.99

$

Usually ships in 2-12 days

0

0180

Murray 703296

BOLT, Carriage, 5/16-18 x 1 1/2

$4.49

$

In Stock, only 3 left!

0
