EMPV 21675 (7800866) - Murray 21" Walk-Behind Mower (2012) Wheels & Height-of-Cut Group (7502109) Parts Diagram

21" Walk-Behind Mower

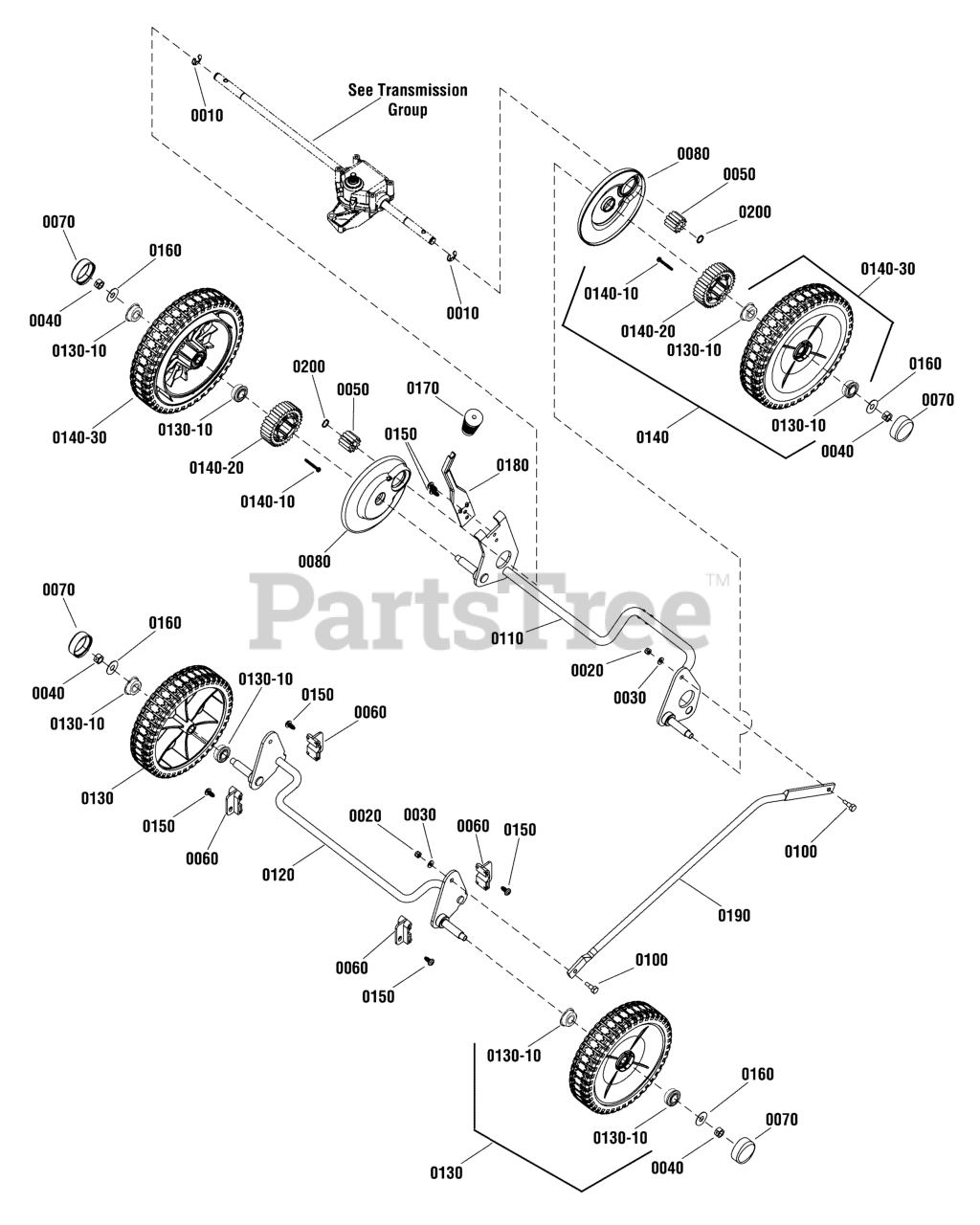

Wheels & Height-of-Cut Group (7502109) Parts Diagram

  • Title

0010

Murray 7014341YP

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 11

0

0020

Murray MT15X146MA

NUT, #10-24, Hex Nylock, GRB, Zinc/Clear
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0030

Murray 7091552SM

WASHER, Flat, 7/32

$3.99

$

In Stock, Qty 11

0

0040

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, GR 5 YZ
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

0050

Murray 7100820YP

GEAR, Pinion

$6.49

$

Usually ships in 2-12 days

0

0060

Murray 7101241YP

BUSHING, Front 21"

$6.99

$

Usually ships in 2-12 days

0

0070

Murray 7101351MA

HUBCAP

$4.99

$

Usually ships in 2-12 days

0

0080

Murray 7101367YP

SHIELD, Dust, 21" Walk Behind Mower, RD

$7.99

$

Usually ships in 2-12 days

0

0100

Murray 7101774YP

SHOULDER BOLT, #10-24

$8.49

$

In Stock, only 4 left!

0

0110

Murray 7400275YP

CROSSBAR, Rear

$117.99

$

Usually ships in 2-12 days

0

0120

Murray 7400276YP

CROSSBAR, Front

$161.99

$

Usually ships in 2-12 days

0

0130

Murray 7501389YP

WHEEL , 8"X 2", BB, Pewter

$41.99

$

Usually ships in 2-12 days

0

0130-10

Murray 7101380YP

BEARING, Ball, 1-1/8"OD, FLANGE
(Superseded to 071579MA)

$

$

Not available

0140

Murray 7502110YP

WHEEL ASSEMBLY, 9X2, W/Ext Gear, BB, Pewter

$42.99

$

Usually ships in 2-12 days

0

0140-10

Murray 7091196SM

SCREW, #8 x 1-1/4" Hex Washer Self-Tap, Hi-Lo Thre

$4.99

$

Usually ships in 2-12 days

0

0140-20

Murray 7100914YP

GEAR, External Wheel

$11.99

$

In Stock, Qty 6

0

0140-30

Murray 7502111YP

WHEEL, 9" W/Bearings, Pewter

$

$

Currently unavailable

0150

Murray 7900067YP

SCREW, 1/4-20 x .550" Pan Head Self-Tap, Torx

$4.49

$

In Stock, Qty 15

0

0160

Murray 17X169MA

WASHER, 1 OD x .387 ID, Flat
(Superseded to 703966)

$4.49

$

In Stock, only 3 left!

0

0170

Murray 671297MA

GRIP, Height-Of-Cut

$6.99

$

In Stock, only 1 left!

0

0180

Murray 672278MA

LEVER, Spring, Height-Of-Cut

$13.99

$

Usually ships in 2-12 days

0

0190

Murray 7101430BJYP

ROD, Lifter Link, Pewter

$14.99

$

Usually ships in 2-12 days

0

0200

Murray 7027999YP

RETAINING RING, .452-.463 ID

$4.49

$

In Stock, Qty 6

0
