EMS4500 A (GE400) - Honda Generator, Made in Japan (SN: GE400-1000001 - GE400-9999999) CONTROL BOX (EMS) Parts Diagram

Generator, Made in Japan

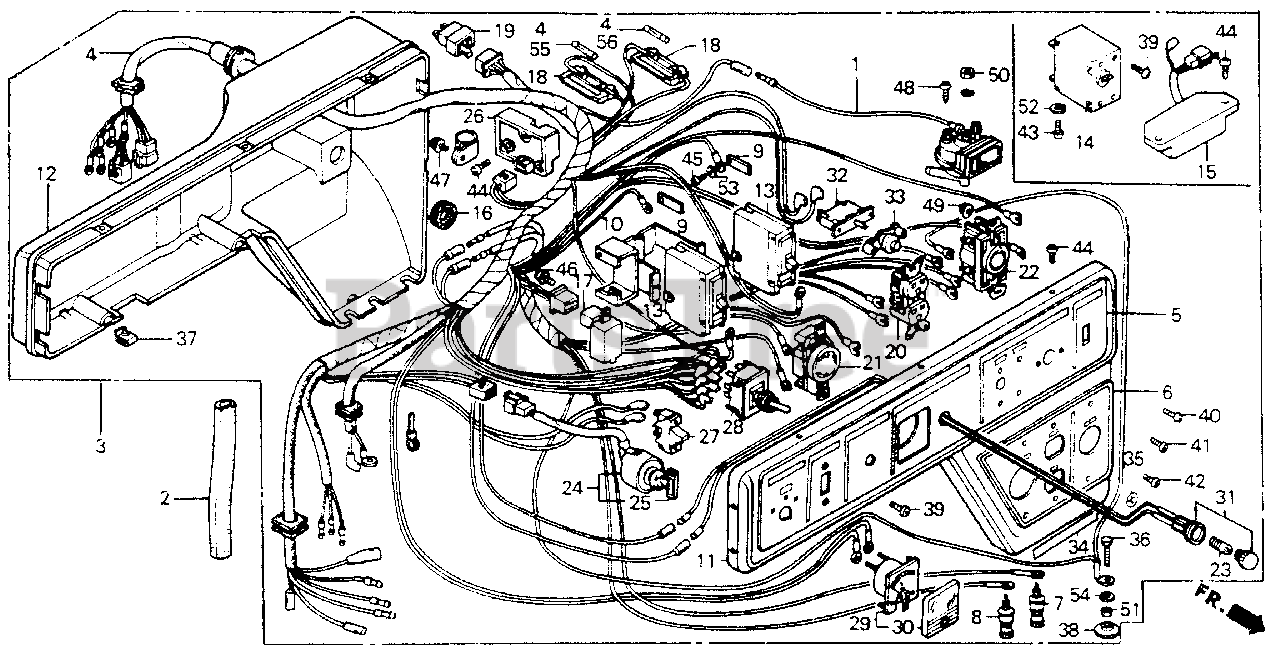

CONTROL BOX (EMS) Parts Diagram

  • Title

1

Honda 15520-898-003

SWITCH ASSY., UNIT

$125.99

$

Usually ships in 3-6 days

0

2

Honda 30587-899-000

TUBE, FASTENER (25) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 31401-ZA1-622H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

4

Honda 31405-ZA1-621

WIRE HARNESS ASSY.

$

$

Not available

5

Honda 31407-ZA1-620

MARK, SWITCH PANEL

$

$

Not available

6

Honda 31409-ZA1-621

MARK, A.C. OUTPUT

$

$

Not available

7

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$53.99

$

Usually ships in 3-6 days

0

8

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$53.99

$

Usually ships in 3-6 days

0

11

Honda 31421-ZA1-620H

PANEL, CONTROL *R8* (BRIGHT RED)

$

$

Not available

12

Honda 31425-899-000

CASE, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 31431-ZA1-620

BREAKER, CIRCUIT (19.5A) (NOT AVAILABLE)

$

$

Not available

15

Honda 31460-ZA1-621

UNIT, VOLTAGE LIMIT (NOT AVAILABLE)

$

$

Not available

16

Honda 31473-898-000

GROMMET, UNIT SWITCH

$7.99

$

Usually ships in 3-6 days

0

17

Honda 31710-899-003

DIODE (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 32111-230-000

CASE, FUSE CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

19

Honda 32130-899-010

CONNECTOR ASSY.

$

$

Currently unavailable

20

Honda 32330-Z07-C30

SEE PART DETAILS - PRI; RECEPTACLE ASSY. (125V-20A)

$67.99

$

In Stock, only 1 left!

0

20

Honda 32330-899-630

SEE PART DETAILS - SUP; RECEPTACLE (20A/125V)
(Superseded to 32330-Z07-C30)

$67.99

$

In Stock, only 1 left!

0

21

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$53.99

$

In Stock, only 1 left!

0

22

Honda 32332-899-630

RECEPTACLE (20A/125-250V)

$

$

Not available

23

Honda 34909-880-000

BULB (24V2W)

$9.99

$

Usually ships in 3-6 days

0

24

Honda 35100-899-003

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY
(Superseded to 35111-880-013)

$13.99

$

In Stock, only 2 left!

0

25

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY

$13.99

$

In Stock, only 2 left!

0

26

Honda 36210-898-003

CONTROL UNIT, IDLE

$

$

Not available

27

Honda 36215-898-000

SWITCH ASSY., IDLE CONTROL (NOT AVAILABLE)

$

$

Not available

28

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$253.99

$

Usually ships in 3-6 days

0

29

Honda 37450-898-650

VOLTMETER ASSY.

$327.99

$

Usually ships in 3-6 days

0

30

Honda 37451-898-000

LENS, METER

$

$

Not available

31

Honda 37560-880-000

SEE PART DETAILS - SUP; SOCKET ASSY., PILOT LAMP
(Superseded to 37560-ZA0-003)

$41.99

$

Usually ships in 3-6 days

0

32

Honda 38240-898-000

PROTECTOR, CIRCUIT (DC)

$42.99

$

In Stock, only 2 left!

0

33

Honda 38250-898-000

LENS ASSY., PROTECTOR

$28.99

$

Usually ships in 3-6 days

0

34

Honda 87524-898-630

MARK, D.C. OUTPUT (NOT AVAILABLE)

$

$

Currently unavailable

35

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.99

$

In Stock, only 4 left!

0

36

Honda 90011-899-000

BOLT, HEX. (6X18)

$4.49

$

Usually ships in 3-6 days

0

37

Honda 90320-692-000

NUT, SPRING (5MM)

$10.99

$

Usually ships in 3-6 days

0

38

Honda 90381-812-710

NUT, SPECIAL (6MM)

$2.99

$

Usually ships in 3-6 days

0

39

Honda 93500-03006-0G

SCREW, PAN (3X6)

$0.99

$

In Stock, only 3 left!

0

40

Honda 93500-03012-0G

SCREW, PAN (3X12)

$

$

Not available

42

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 1 left!

0

44

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

46

Honda 93893-04012-00

SCREW-WASHER (4X12)

$1.99

$

Usually ships in 3-6 days

0

47

Honda 93893-05010-00

SCREW-WASHER (5X10)

$

$

Not available

48

Honda 93901-15120

SCREW, TAPPING (5X10)

$0.99

$

Usually ships in 3-6 days

0

49

Honda 94001-04000-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

50

Honda 94001-05390-0S

NUT, HEX. (5MM)

$1.99

$

Usually ships in 3-6 days

0

51

Honda 94001-06390-0S

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

54

Honda 94111-06800

WASHER, SPRING (6MM)

$1.99

$

Usually ships in 3-6 days

0

55

Honda 98200-20500

FUSE B (5A)

$1.99

$

Usually ships in 3-6 days

0

56

Honda 98200-21000

SEE PART DETAILS - PRI; FUSE B (10A)

$1.49

$

In Stock, Qty 8

0
