EMS4500 A (GE400) - Honda Generator, Made in Japan (SN: GE400-1000001 - GE400-9999999) CYLINDER Parts Diagram

Generator, Made in Japan

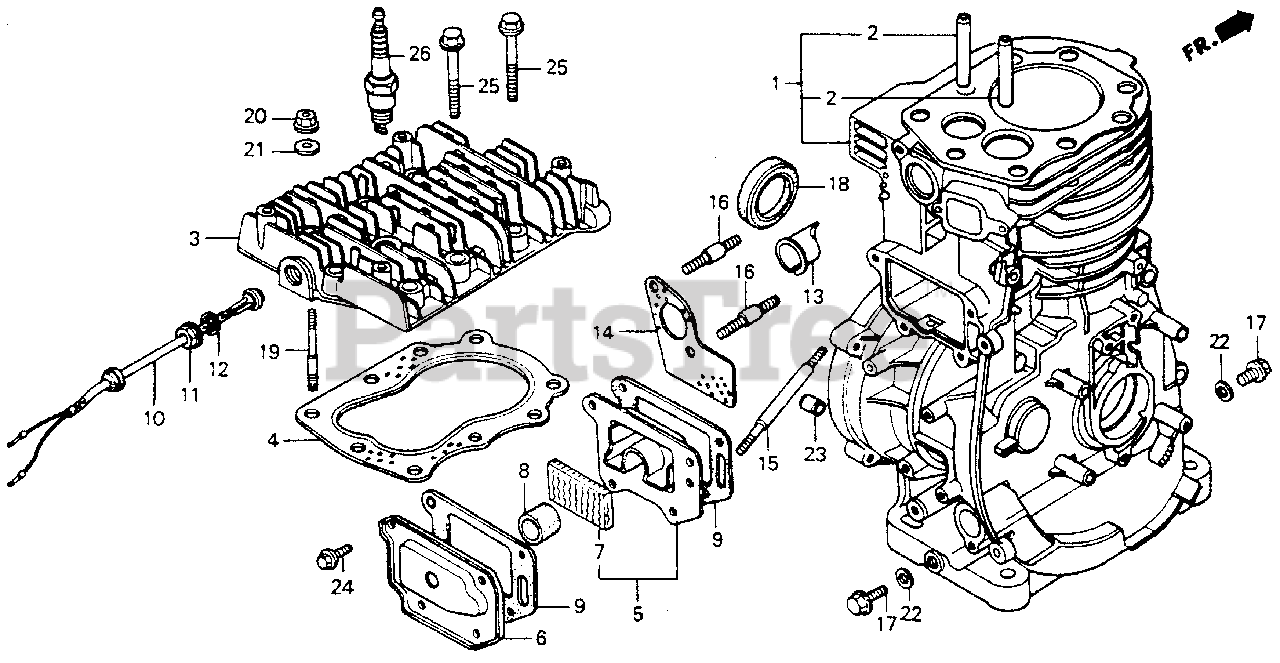

CYLINDER Parts Diagram

  • Title

1

Honda 121A0-ZA1-000

CYLINDER

$973.99

$

Usually ships in 3-6 days

0

2

Honda 12134-890-305

GUIDE, VALVE

$8.99

$

Usually ships in 3-6 days

0

3

Honda 122A2-ZA1-000

SEE PART DETAILS - PRI; CYLINDER HEAD (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 12281-890-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD

$33.99

$

Usually ships in 3-6 days

0

4

Honda 12281-891-610

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$

$

Not available

5

Honda 12360-ZA1-000

CASE, BREATHER

$

$

Not available

6

Honda 12361-890-000

COVER, TAPPET

$9.49

$

Usually ships in 3-6 days

0

7

Honda 12367-890-003

FILTER, BREATHER

$

$

Not available

8

Honda 12369-883-000

SEAL, BREATHER

$3.99

$

Usually ships in 3-6 days

0

9

Honda 12375-ZA1-000

GASKET, TAPPET COVER

$2.99

$

Usually ships in 3-6 days

0

10

Honda 16500-880-023

SWITCH ASSY., THERMOSTAT (NOT AVAILABLE)

$

$

Not available

11

Honda 16501-880-000

BOSS, THERMOSTAT SWITCH (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 16502-880-000

WASHER, SWITCH BOSS

$1.99

$

Usually ships in 3-6 days

0

13

Honda 18321-899-000

LINER, EX. PIPE

$11.99

$

Usually ships in 3-6 days

0

14

Honda 18381-890-306

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-890-800)

$

$

Not available

14

Honda 18381-890-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

$

$

Not available

15

Honda 90042-890-680

BOLT, STUD (8X104)

$7.99

$

Usually ships in 3-6 days

0

16

Honda 90047-883-000

BOLT, STUD (8X35)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, Qty 9

0

18

Honda 91201-890-003

OIL SEAL (30X46X8)

$10.99

$

In Stock, Qty 7

0

19

Honda 90045-890-000

BOLT, STUD (10X70)

Note: Use from Engine SN 1011783.

$7.49

$

Usually ships in 3-6 days

0

19

Honda 92700-10060-0B

SEE PART DETAILS - SUP; BOLT, STUD (10X60)

Note: Use up to Engine SN 1011782.

$

$

Currently unavailable

19

Honda 92900-10040-0B

SEE PART DETAILS - PRI; BOLT, STUD (10X40)

Note: Use up to Engine SN 1011782.

$10.99

$

Usually ships in 3-6 days

0

20

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

Note: Use up to Engine SN 1011782.

$1.99

$

In Stock, Qty 5

0

20

Honda 94050-10080

NUT, FLANGE (10MM)

Note: Use from Engine SN 1011783.

$3.99

$

In Stock, Qty 20+

0

21

Honda 90401-437-000

WASHER, PLAIN (10MM)

Note: Use from Engine SN 1011783.

$3.49

$

Usually ships in 3-6 days

0

21

Honda 94102-10000

WASHER, PLAIN (10MM)

Note: Use up to Engine SN 1011782.

$0.99

$

In Stock, only 2 left!

0

22

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

23

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 14

0

24

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

24

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

25

Honda 95730-10055-08

BOLT, FLANGE (10X55)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 98076-54914

SEE PART DETAILS - SUP; SPARK PLUG (BPR-4HS-10) (NGK)
(Superseded to 98076-54917)

$3.49

$

In Stock, only 2 left!

0

26

Honda 98076-54917

SEE PART DETAILS - PRI; SPARK PLUG (BPR4HS-10) (NGK)

$3.49

$

In Stock, only 2 left!

0

26

Honda 98076-54921

SPARK PLUG (W14FP-UL10)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 98076-54954

SPARK PLUG (W14FPR-UL10)

$3.99

$

Usually ships in 3-6 days

0
