EMT 155420 H (2690986) - Murray 42" Side-Discharge Lawn Tractor, 15.5hp (2011) 42" Mower Deck - Clutch Group Parts Diagram

42" Side-Discharge Lawn Tractor, 15.5hp

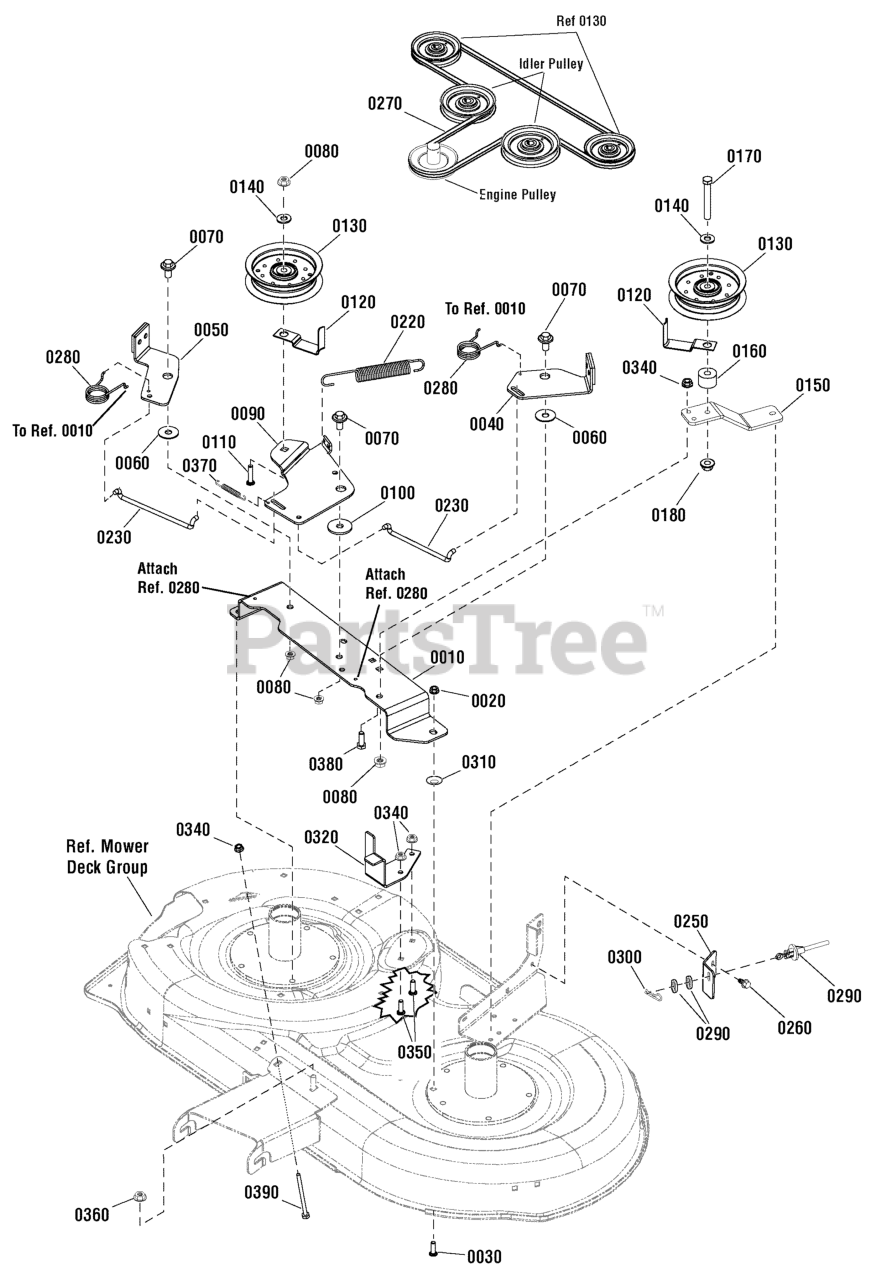

42" Mower Deck - Clutch Group Parts Diagram

  • Title

0010

Murray 1750613BMYP

SUPPORT, Brake Arms

$38.99

$

Usually ships in 2-12 days

0

0020

Murray 7090951SM

NUT, Hex, Centerlock
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

0030

Murray 1931334SM

BOLT, Carriage, Short Neck, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

0040

Murray 1750787YP

BRAKE ARM ASSEMBLY, LH

$13.99

$

Usually ships in 2-12 days

0

0050

Murray 1751345YP

BRAKE ARM ASSEMBLY, RH

$16.99

$

Usually ships in 2-12 days

0

0060

Murray 1922611SM

WASHER, 3/8

$6.99

$

Usually ships in 2-12 days

0

0070

Murray 1752070YP

BOLT, Shoulder

$2.49

$

Usually ships in 2-12 days

0

0080

Murray 015X84MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0090

Murray 1750612BMYP

ARM, Idler

$30.99

$

Usually ships in 2-12 days

0

0100

Murray 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 15

0

0110

Murray 1931353SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-3/4, G5
(Superseded to 703858)

$4.99

$

In Stock, Qty 5

0

0120

Murray 726822YP

SPRING, Belt Guide

$10.99

$

Usually ships in 2-12 days

0

0130

Murray 1736540YP

PULLEY, Idler

$35.99

$

In Stock, Qty 12

0

0140

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0150

Murray 1752150BMYP

SUPPORT, Idler, RH

$13.99

$

Usually ships in 2-12 days

0

0160

Murray 1715024SM

SPACER, 3/4"

$8.49

$

In Stock, only 1 left!

0

0170

Murray 1921973SM

CAPSCREW, Hex Head, 3/8-16 x 2-3/4, G5

$5.49

$

Usually ships in 2-12 days

0

0180

Murray 1928352SM

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

0220

Murray 1752846YP

SPRING, Extension

$46.99

$

Usually ships in 2-12 days

0

0230

Murray 1751454YP

ROD, Mower Brake

$13.99

$

Usually ships in 2-12 days

0

0250

Murray 1751471BMYP

BRACKET, Cable Mounting

$15.99

$

Usually ships in 2-12 days

0

0260

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0270

Murray 7028585YP

BELT, Traction Drive, TTK50/K55

$64.99

$

In Stock, only 1 left!

0

0280

Murray 166X41MA

SPRING, Torsion, Brake

$4.99

$

Usually ships in 2-12 days

0

0290

Murray 1750977YP

CABLE, Manual PTO

$30.99

$

Usually ships in 2-12 days

0

0300

Murray 87005AGS

PIN, Quick Release, 1/4 - 1/2
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0310

Murray 1933988SM

NUT, Push Pal, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0320

Murray 1752524BMYP

GUIDE, Belt

$16.99

$

Usually ships in 2-12 days

0

0340

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0350

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0360

Murray 015X88MA

NUT, Hex Flange, Centerlock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0370

Murray 2159106SM

SPRING, Extension
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

0380

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

0390

Murray 91754MA

SCREW, Guide, 5/16-18

$16.99

$

Usually ships in 2-12 days

0
